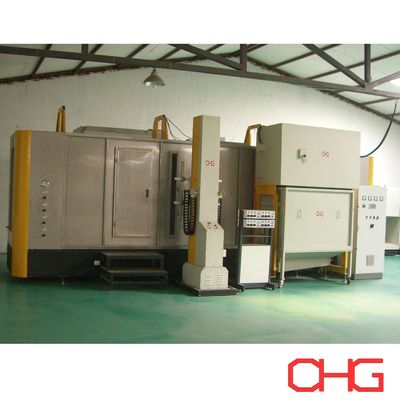

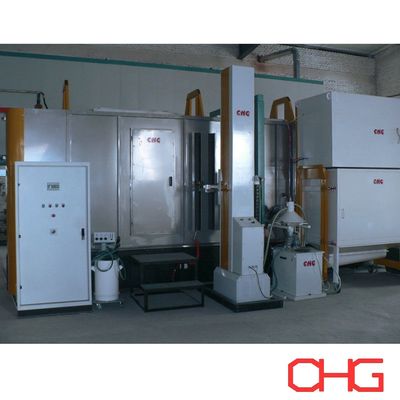

Automatic Powder Recycler For Electrostatic Powder Coating Equipment

Brand Name:	CHG
Model Number:	CB-PC-06-02
MOQ:	1 set
Price:	5,000-10,000 USD
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets per year

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Technical Data:

Customized

Coating:

Powder

Method Type:

Automatic

Condition:

New

After-sales Service:

Guide Equipment Installation And Use

Origin:

China

Packaging Details:

Varies depending on the design

Highlight:

Product Description

Electrostatic Powder Coating Equipment'S Powder Recycler With Filter Element

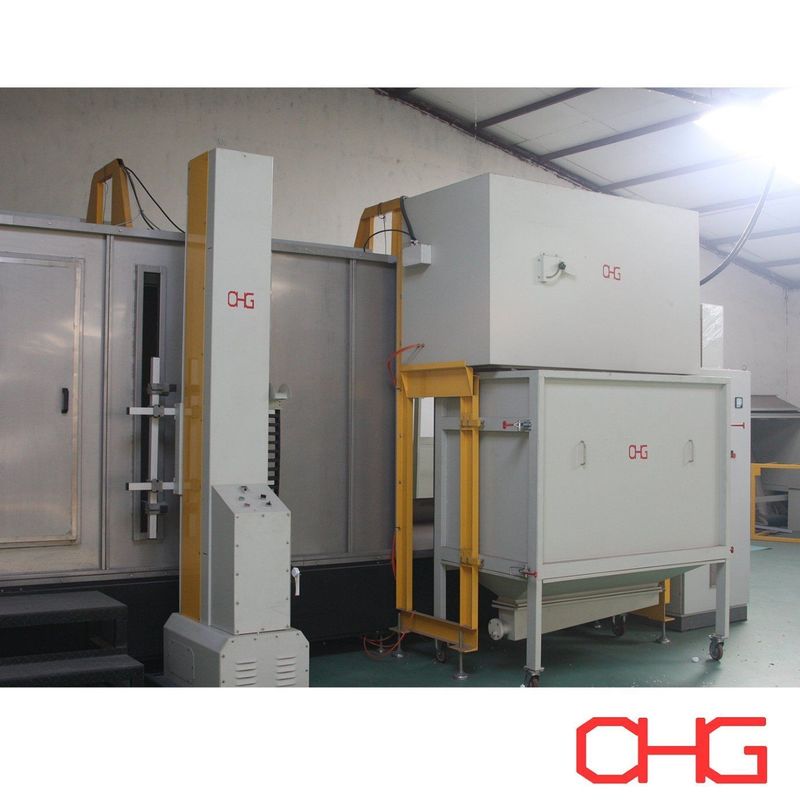

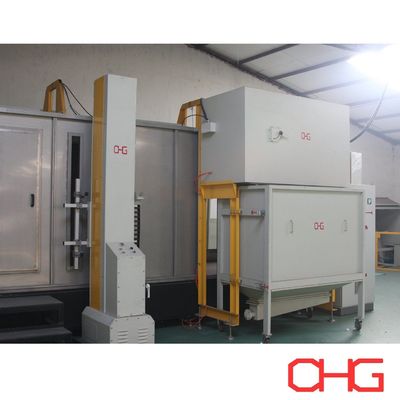

Recycle device is consist of upper box and lower box.
Starting soft joint to seal between upper box and lower box, the lower box is movable to exchange and clean filter element.
Recycle fan is set in the upper box. Equipment noise is less than 85dB (standard of China).
Recycle system use two sets of filter devices (filter element and final filter). Exhausting tail gas is less than 10mg/m³ (standard of China).
The filter element is constructed from waterproof and antistatic polyester material and is installed within the lower recycle box.
The blowback self-cleaning device in the recycle system efficiently removes accumulated powder from the filter element.
The blowback device is equipped with an electronic control instrument and a pulse membrane valve for effective operation.
The automatic powder recycle system is located at the bottom of the powder saver. Recycled powder is transported via a powder recycle pump into an electric powder filter, where it is screened and returned to the powder supply bucket. After fluidization, it is evenly mixed with new powder in the bucket.
After shift, switch off recycle fan, so that pulse blowback self-cleaning system work singly or repetitiously, to finish cleaning recycle filter element.

No.	Item	Parameter and description
1	Model	CHG-HS-7000
2	Number of filter element	5 pieces
3	Specification of filter element	∮325×660mm
4	Material of filter element	waterproof polyester
5	Filter precision of filter element	5μm
6	Model of fan	4-72-4.0A
7	Model of motor	Y132S1-2-5.5kW 3~380V 50Hz
8	Recycling air	6500m3/h
9	Cleaning form of filter element	Pulse automatic blowback
10	Voltage of blowback valve	DC24V
11	Blowback pressure	0.4~0.5MPa
12	Sealing way between upper and lower box of saver	Air sealing
13	Moving way of lower box of saver	Manual movement
