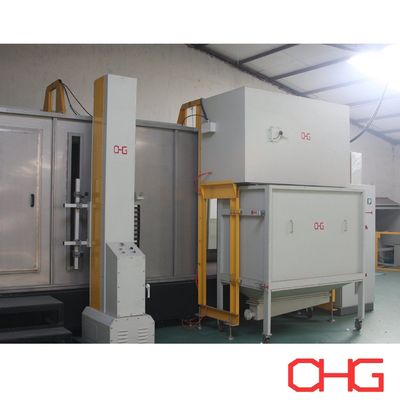

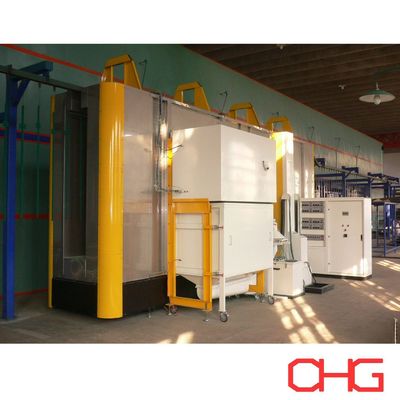

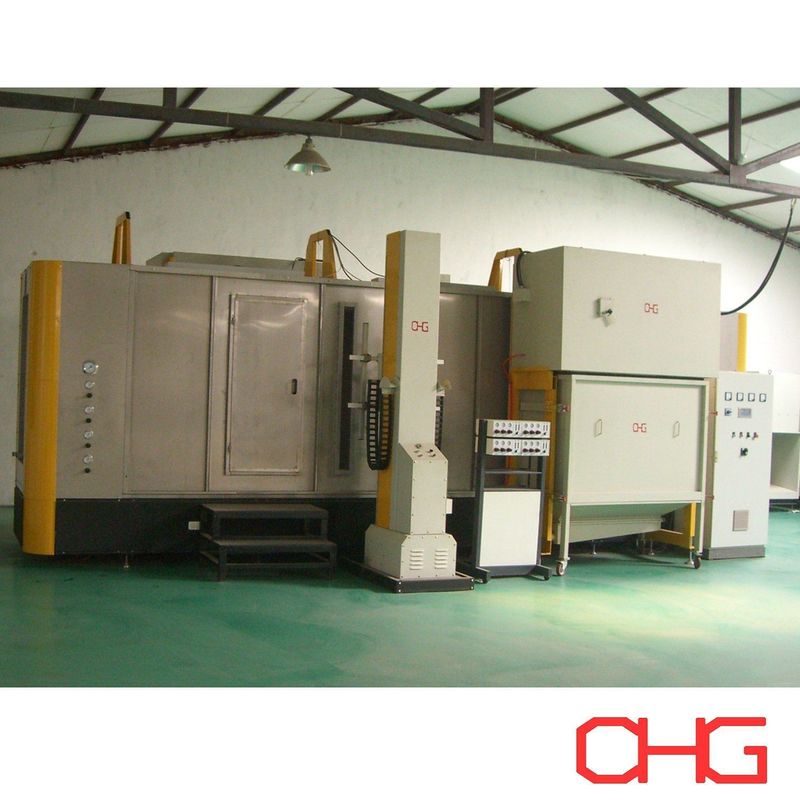

Customized Cyclone Recovery System Recycler For Powder Coating Machine

Customized Cyclone Recovery System Recycler For Powder Coating Machine

Customized Cyclone Recovery System Recycler For Powder Coating Machine

Brand Name: CHG
Model Number: CB-PC-03-02
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Origin:
China
Supply Ability:
1000/Year
Package Size:
300.00cm * 300.00cm * 400.00cm
Package Gross Weight:
1500.000kg
Customization:
Available
Warranty:
1 Year
Packaging Details:
Varies depending on the design
Highlight:

Customized Cyclone Recovery System

,

Cyclone Recovery System Recycler

Product Description

Customized Cyclone Recovery System Recycler for Powder Coating Machine

  1. Recycle device is consist of upper box and lower box.
  2. Starting soft joint to seal between upper box and lower box, the lower box is movable so as to exchange and clean filter element.
  3. Recycle fan is set in the upper box. Equipment noise is less than 85dB (standard of China).
  4. Recycle system use two sets of filter devices (filter element and final filter). Exhausting tail gas is less than 10mg/m³ (standard of China).
  5. Filter element is made from polyester waterproof antistatic material, and it is set in the lower recycle box.
  6. Blowback self-cleaning device in the recycle system can clean stockpiled powder of filter element efficiently.
  7. Blowback device is made of electron order control instrument and pulse membrane valve.
  8. The automatic powder recycle system is located at the bottom of the powder saver. Recycled powder is transported by a powder recycle pump into an electric powder filter, where it is screened and returned to the powder supply bucket. Here, it is evenly mixed with new powder after fluidization.
  9. At the end of a shift, the recycle fan is turned off, allowing the pulse blowback self-cleaning system to operate either singly or repeatedly to thoroughly clean the recycle filter elements.



No. Item Parameter and description
1 Model CHG-HS-7000
2 Number of filter element 5 pieces
3 Specification of filter element ∮325×660mm
4 Material of filter element waterproof polyester
5 Filter precision of filter element 5μm
6 Model of fan 4-72-4.0A
7 Model of motor Y132S1-2-5.5kW 3~380V 50Hz
8 Recycling air 6500m3/h
9 Cleaning form of filter element Pulse automatic blowback
10 Voltage of blowback valve DC24V
11 Blowback pressure 0.4~0.5MPa
12 Sealing way between upper and lower box of saver Air sealing
13 Moving way of lower box of saver Manual movement

High Quality Powder Recycler for Spray Booth Powder Coating Equipment High Quality Powder Recycler for Spray Booth Powder Coating Equipment High Quality Powder Recycler for Spray Booth Powder Coating Equipment
