Powder Recycler for Customized Powder Coating Production Line Spray Booth PLC Control Unit

Brand Name:	CHG
Model Number:	CB-PC-06
MOQ:	1 set
Price:	5,000-10,000 USD
Payment Terms:	L/C,D/P,D/A,Western Union,T/T,MoneyGram
Supply Ability:	1000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Condition:

New

Transport Package:

Customized

Specification:

Customized

Supply Ability:

1000/Year

Customization:

Available

Certification:

CE, ISO

Packaging Details:

Varies depending on the design

Product Description

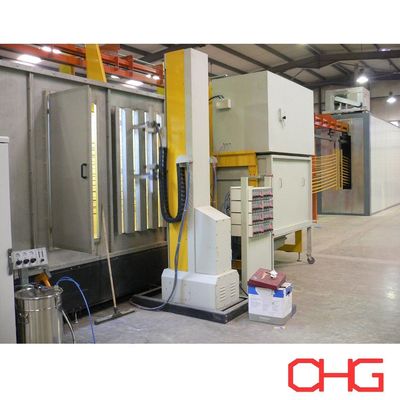

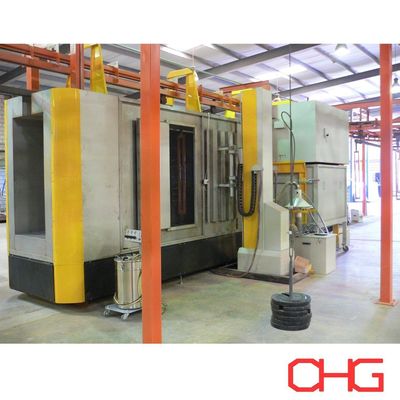

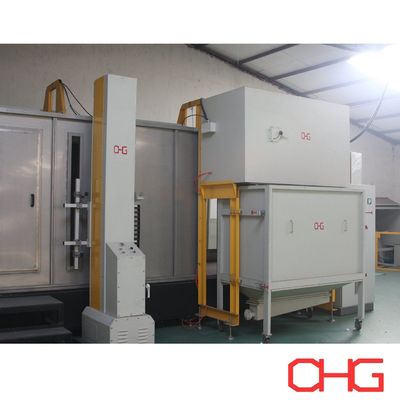

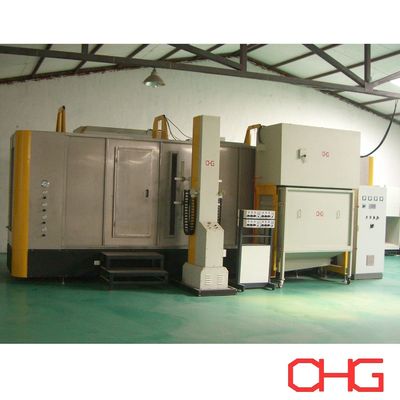

Electrostatic Powder Coating Equipment's Powder Recycler With Filter Element

System Components

Upper Chamber with Recovery Fan:
Equipped with a high-efficiency recovery fan to ensure consistent airflow and powder collection performance.
Lower Movable Chamber for Filter Maintenance:
The lower section features a sliding or lift-up mechanism, providing convenient access for filter inspection and replacement.
Flexible Sealing Interface:
A reinforced, flexible sealing connection between chambers ensures airtight operation and prevents powder leakage.

Filtration Specifications

Two-Stage Filtration System:
1. Primary Filter: Durable polyester cartridge with waterproof and anti-static properties for efficient particulate capture.
2. Secondary Exhaust Filter: High-efficiency final filter that ensures clean air discharge.
Performance Indicators:
- Maximum exhaust emission concentration: ≤10 mg/m³
- Operational noise level: <85 dB

Automatic Cleaning System

The integrated pulse-jet cleaning unit automatically removes powder buildup from the filter surface, maintaining optimal filtration performance.
Includes:

Intelligent electronic control panel
Pulse membrane valves for precise compressed air release and extended filter life

Powder Recovery and Recycling Process

Recovered powder particles are directed into the collection hopper, from which a transfer pump conveys the material to the electric sieving unit for screening and reconditioning.
This closed-loop system minimizes waste and maximizes powder reuse efficiency.

No.	Item	Parameter and description
1	Model	CHG-HS-7000
2	Number of filter element	5 pieces
3	Specification of filter element	∮325×660mm
4	Material of filter element	waterproof polyester
5	Filter precision of filter element	5μm
6	Model of fan	4-72-4.0A
7	Model of motor	Y132S1-2-5.5kW 3~380V 50Hz
8	Recycling air	6500m3/h
9	Cleaning form of filter element	Pulse automatic blowback
10	Voltage of blowback valve	DC24V
11	Blowback pressure	0.4~0.5MPa
12	Sealing way between upper and lower box of saver	Air sealing
13	Moving way of lower box of saver	Manual movement

Powder Recycler for Customized Powder Coating Production Line Spray Booth PLC Control Unit 0
