Powder Recovery System
Created with Pixso.

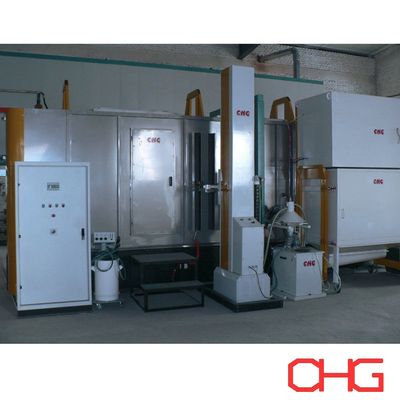

PLC Controlled Powder Recycler Customized For Spray Booth Powder Coating Equipment

PLC Controlled Powder Recycler Customized For Spray Booth Powder Coating Equipment

PLC Controlled Powder Recycler Customized For Spray Booth Powder Coating Equipment

Brand Name: CHG
Model Number: CB-PC-06
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Control Unit:
PLC
Technical Data:
Customized
Size:
Customized
Coating Material:
Powder
After-sales Service:
Guide Equipment Installation And Use
Supply Ability:
1000/Year
Packaging Details:
Varies depending on the design
Highlight:

PLC Controlled Powder Recycler

,

Powder Recycler Customized

Product Description
  1. Recycle device is consist of upper box and lower box.
  2. Starting soft joint to seal between upper box and lower box, the lower box is movable so as to exchange and clean filter element.
  3. Recycle fan is set in the upper box. Equipment noise is less than 85dB (standard of China).
  4. Recycle system use two sets of filter devices (filter element and final filter). Exhausting tail gas is less than 10mg/m³ (standard of China).
  5. Filter element is made from polyester waterproof antistatic material, and it is set in the lower recycle box.
  6. Blowback self-cleaning device in the recycle system can clean stockpiled powder of filter element efficiently.
  7. Blowback device is made of electron order control instrument and pulse membrane valve.
  8. Automatic powder recycle system is set at the bottom of powder saver. Recycled powder can get into electric powder filter through powder recycle pump, screening powder return into the powder supply bucket, and equably mix with new powder in the bucket after fluidifying.
  9. After shift, switch off recycle fan, so that pulse blowback self-cleaning system work singly or repetitiously, to finish cleaning recycle filter element.



No. Item Parameter and description
1 Model CHG-HS-7000
2 Number of filter element 5 pieces
3 Specification of filter element ∮325×660mm
4 Material of filter element waterproof polyester
5 Filter precision of filter element 5μm
6 Model of fan 4-72-4.0A
7 Model of motor Y132S1-2-5.5kW  3~380V  50Hz
8 Recycling air 6500m3/h
9 Cleaning form of filter element Pulse automatic blowback
10 Voltage of blowback valve DC24V
11 Blowback pressure 0.4~0.5MPa
12 Sealing way between upper and lower box of saver Air sealing
13 Moving way of lower box of saver Manual movement

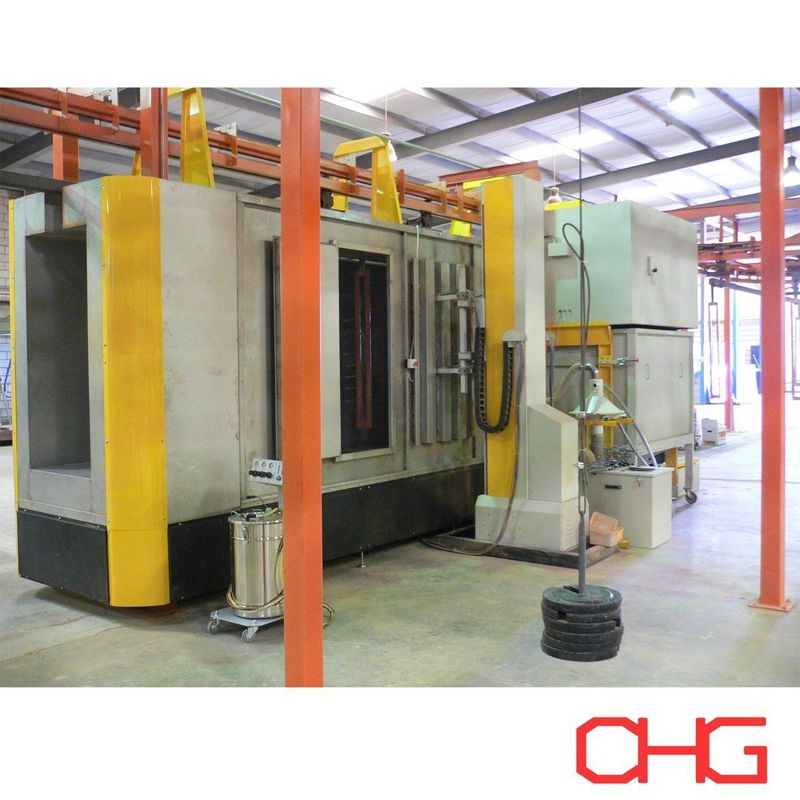

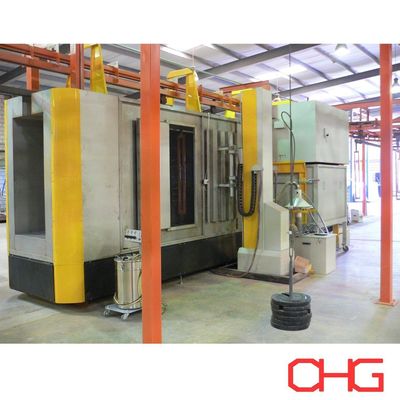

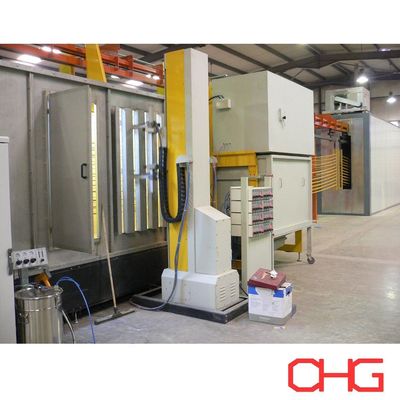

High Quality Powder Recycler for Spray Booth Powder Coating Equipment High Quality Powder Recycler for Spray Booth Powder Coating Equipment  High Quality Powder Recycler for Spray Booth Powder Coating Equipment
