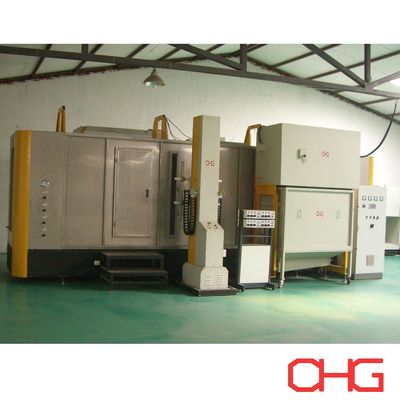

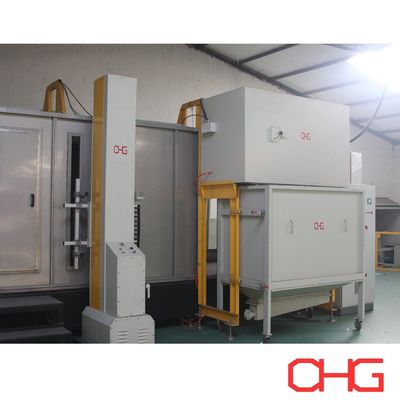

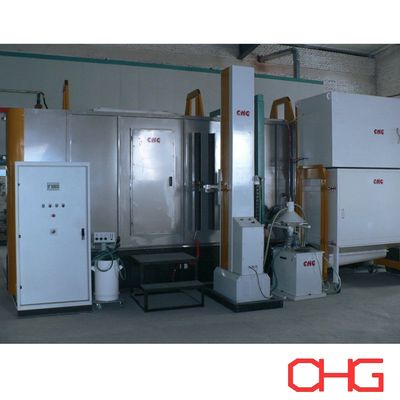

Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism

Name: Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Brand: CHG International Limited
SKU: CB-PC-06
Price: 7.00 USD
Availability: InStock

Brand Name:	CHG
Model Number:	CB-PC-06
MOQ:	1 set
Price:	5,000-10,000 USD
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Model NO.:

CB-PC-06

Size:

Customized

Coating:

Powder

Transport Package:

Customized

Trademark:

CHG

Application:

Hardware Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment

Packaging Details:

Varies depending on the design

Highlight:

powder recovery system for powder coating

dual filtration cyclone recovery system

automatic cleaning powder coating equipment

Product Description

Electrostatic Powder Coating Equipment's Powder Recycler With Filter Element

System Components

Upper chamber with recovery fan
Lower movable chamber for filter access
Flexible sealing connection between chambers

Filtration Specifications

Dual filtration stages:
1. Primary polyester filter (waterproof/anti-static)
2. Final exhaust filter
Maximum exhaust concentration: 10mg/m³
Operational noise level: <85dB

Automatic Cleaning System

Pulse blowback cleaning mechanism
Includes:
• Electronic control unit
• Pulse membrane valves

Powder Recycling Process

Collected powder accumulates in recovery hopper
Transfer pump moves powder to:
• Electric sieve filter

No.	Item	Parameter and description
1	Model	CHG-HS-7000
2	Number of filter element	5 pieces
3	Specification of filter element	∮325×660mm
4	Material of filter element	waterproof polyester
5	Filter precision of filter element	5μm
6	Model of fan	4-72-4.0A
7	Model of motor	Y132S1-2-5.5kW 3~380V 50Hz
8	Recycling air	6500m3/h
9	Cleaning form of filter element	Pulse automatic blowback
10	Voltage of blowback valve	DC24V
11	Blowback pressure	0.4~0.5MPa
12	Sealing way between upper and lower box of saver	Air sealing
13	Moving way of lower box of saver	Manual movement
