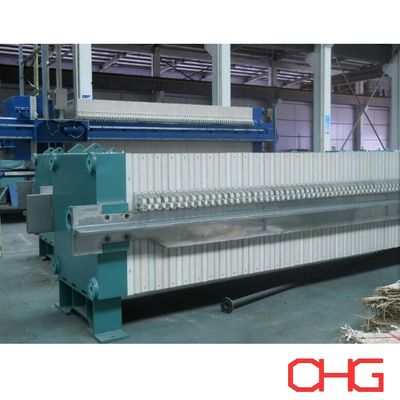

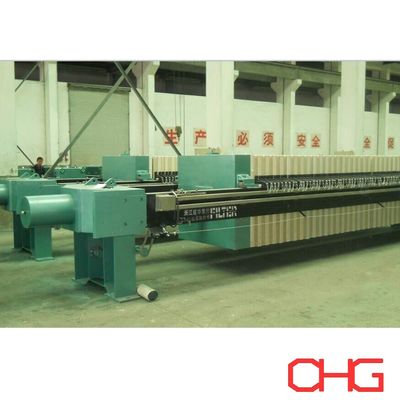

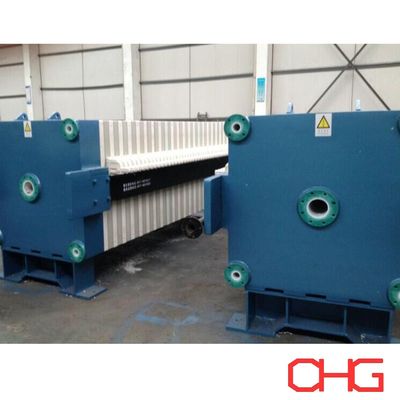

Cantilever Beam Diaphragm Filter Press For Waste Water Treatment In Coating Line

Brand Name:	CHG
Model Number:	WTE-02-05
MOQ:	1 set
Price:	30,000~50,000 USD
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Type:

Diaphragm Filter Press

Technical Data:

Customized

Mini Order Qty:

1 Set

Package Size:

485.00cm * 104.50cm * 152.50cm

Structure:

Cantilever Beam Type

Filter Material:

FRPP

Packaging Details:

Varies depending on the design

Highlight:

Cantilever Beam Diaphragm Filter Press

Coating Line Diaphragm Filter Press

Product Description

Cantilever Beam Structure Diaphragm Filter Press For Top Waste Water Treatment In Coating Line

Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.

Specifications

No.	Name	Unit	Parameter
1	filter area	m2	23
2	frame material	set	Q345B coated with anti-corrosion paint. Safety factor 2.2 to make sure safe and stable.
3	main beam material	set	Q345B box-type structure, anti-deforming.
4	filter board size	mm	630x630
5	filter board thickness	mm	membrance board 65mm; side board 58mm
6	filter chamber depth	mm	30
7	theoretical chamber volume	m3	0.345
8	inlet pressure	Mpa	≤0.8
9	press pressure	Mpa	≤1.2
10	filter temperature	ºC	normal temperature (20-40ºC)
11	diameter of oil cylinder	mm	200
12	pressure limit	Mpa	31.5
13	Max. working pressure	Mpa	22
14	motor power	kW	4
15	input material		middle
16	liquid output		hidden discharge
17	filter board material	pc	FRPP from northern Europe + TPE
18	hydraulic press station	set	high pressure plunger pump
19	control system	set	Chinese brand CHINT components. Control of press, backwards, hold pressure, adding pressure
