Waste Treatment
Created with Pixso.

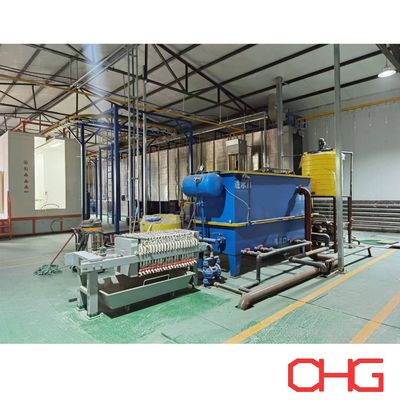

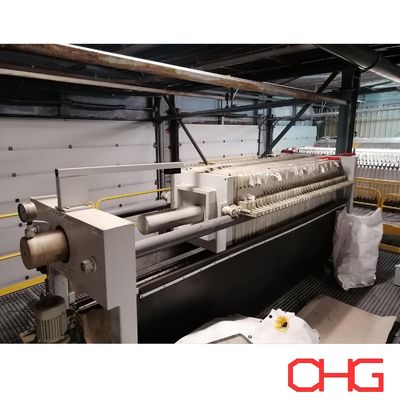

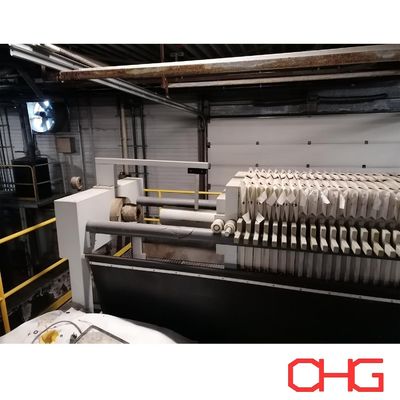

Advanced Cantilever Beam Structure Filter Press for Top Waste Water Treatment in Coating Line

Advanced Cantilever Beam Structure Filter Press for Top Waste Water Treatment in Coating Line

Advanced Cantilever Beam Structure Filter Press for Top Waste Water Treatment in Coating Line

Brand Name: CHG
Model Number: WTE-02-05
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO
Control Unit:
PLC
Technical Data:
Customized
Mini Order Qty:
1 Set
Transport Package:
As Required
Origin:
China
HS Code:
8421291090
Packaging Details:
Varies depending on the design
Product Description
Cantilever Beam Structure Diaphragm Filter Press For Top Waste Water Treatment In Coating Line

Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.

Specifications

No.

Item

Unit

Specification

1

Filter Area

m²

23

2

Frame Material

set

Q345B steel coated with anti-corrosion paint; safety factor 2.2 for stability

3

Main Beam Material

set

Q345B box-type structure, designed to resist deformation

4

Filter Plate Size

mm

630 × 630

5

Filter Plate Thickness

mm

Membrane plate: 65 mm; Side plate: 58 mm

6

Filter Chamber Depth

mm

30

7

Theoretical Chamber Volume

m³

0.345

8

Inlet Pressure

MPa

≤ 0.8

9

Pressing Pressure

MPa

≤ 1.2

10

Operating Temperature

ºC

Ambient (20–40 ºC)

11

Oil Cylinder Diameter

mm

200

12

Pressure Limit

MPa

31.5

13

Max. Working Pressure

MPa

22

14

Motor Power

kW

4

15

Inlet Type

–

Center feeding

16

Filtrate Discharge Type

–

Hidden discharge

17

Filter Plate Material

pcs

FRPP (from Northern Europe) + TPE

18

Hydraulic Station

set

High-pressure plunger pump

19

Control System

set

Chinese brand CHINT components; controls for pressing, retraction, pressure holding, and pressure boost
