Cantilever Beam Diaphragm Filter Press for Coating Line Wastewater Treatment Structural Design Filtration Technology

Brand Name:	CHG
Model Number:	WTE-02
MOQ:	1 set
Price:	30,000~50,000 USD
Payment Terms:	D/A,L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Type:

Diaphragm Filter Press

Size:

Customized

Package Size:

485.00cm * 104.50cm * 152.50cm

Package Gross Weight:

8000.000kg

Filter Material:

FRPP

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Product Description

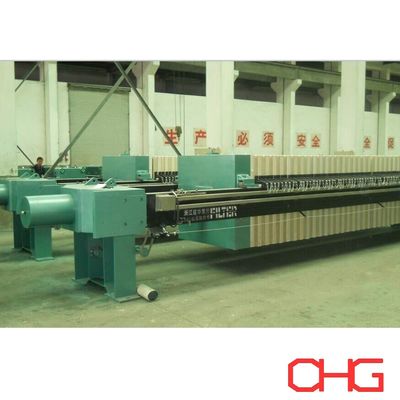

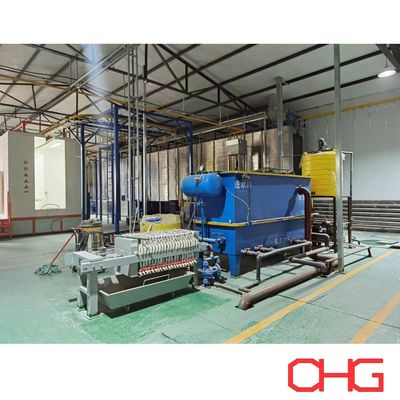

Cantilever Beam Diaphragm Filter Press for Coating Line Wastewater Treatment

Key Features

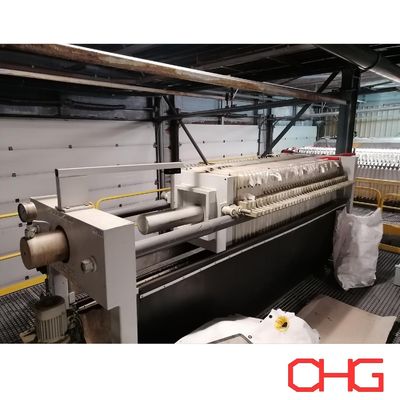

Structural Design: Cantilever beam configuration for easy filter plate maintenance
Filtration Technology: Diaphragm squeeze mechanism for optimal dewatering
Application: Specifically engineered for coating production line wastewater treatment

Customization Services
We provide:

System capacity customization
Material compatibility options
Process integration solutions

Specifications

No.	Item	Unit	Specification Details
1	Filter Area	m²	23
2	Frame Material	set	Q345B steel with anti-corrosion coating; Safety factor: 2.2
3	Main Beam Material	set	Q345B box-type structure (anti-deformation)
4	Filter Plate Size	mm	630 × 630
5	Filter Plate Thickness	mm	Membrane: 65 / Side plate: 58
6	Filter Chamber Depth	mm	30
7	Theoretical Chamber Volume	m³	0.345
8	Inlet Pressure	MPa	≤ 0.8
9	Pressing Pressure	MPa	≤ 1.2
10	Operating Temperature	°C	20–40 (ambient)
11	Oil Cylinder Diameter	mm	200
12	Pressure Limit	MPa	31.5
13	Max. Working Pressure	MPa	22
14	Motor Power	kW	4
15	Inlet Type	–	Center feeding
16	Filtrate Discharge	–	Hidden discharge
17	Filter Plate Material	pcs	FRPP (Northern Europe) + TPE
18	Hydraulic Station	set	High-pressure plunger pump
19	Control System	set	CHINT components (Chinese brand); Pressure control functions
