Customized Professional Powder Coating Production Line with Power Free Conveyor System and Hardware Spraying Equipment

Automatic Metal Powder Coating Line with PVC Spray Booth and Powder Recovery System

Customized Industrial Coating Equipment with Power and Free Conveyor

CHG designs and supplies automatic powder coating production lines for metal components, integrating electrostatic powder application, powder recovery, and overhead material handling into a coordinated manufacturing system.This production line features a PVC powder spray booth and a Power and Free conveyor, providing a flexible configuration for processing metal workpieces with different dimensions, weights, and geometries.The conveyor transports components between production stages, while manual loading and unloading stations allow operators to handle different product types according to their specific requirements.Each system is engineered around the customer's workpiece characteristics, production targets, coating specifications, and available factory space.

Key Equipment Features

PVC Powder Coating Booth

The powder application section uses a PVC spray booth designed for industrial electrostatic powder coating.PVC construction offers a corrosion-resistant surface and facilitates routine booth cleaning. The booth dimensions and internal arrangement can be adapted to accommodate different workpiece sizes and spraying configurations.Depending on the project requirements, the booth can incorporate automatic spray guns, reciprocators, manual touch-up stations, and a suitable powder extraction and recovery system.

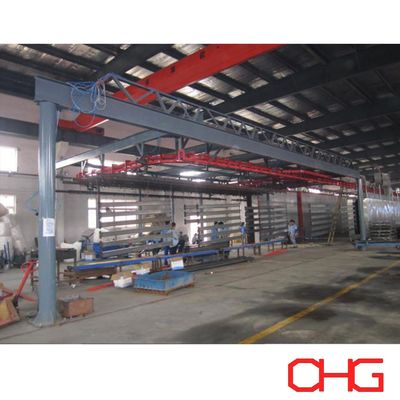

Power and Free Overhead Conveyor

The production line uses a Power and Free conveyor to transport suspended metal components through the coating process.Unlike a conventional continuously driven conveyor, this system allows carriers to stop, accumulate, and resume movement at designated positions.These functions provide flexibility when different production stages require different processing times or when loading and unloading operations must be coordinated with automatic coating equipment.

Manual Loading and Unloading

Workpieces are manually positioned onto customized conveyor hangers at the loading station and removed after curing and cooling.This arrangement accommodates different product shapes and allows operators to adjust workpiece positioning according to coating accessibility and handling requirements.

Automatic Electrostatic Powder Spraying

Automatic spraying equipment applies powder to the grounded metal workpieces as they pass through the spray booth.The number of spray guns, their positions, and any reciprocating movements are determined according to the product geometry, conveyor speed, and required coating coverage.Manual touch-up equipment can be incorporated where necessary.

Integrated Powder Recovery

The spray booth can be connected to a powder recovery system designed to collect overspray during coating operations.Depending on the production requirements, the recovery arrangement may include cyclone separation, cartridge filtration, or other suitable powder collection equipment.Recoverable powder may be returned to the coating process when permitted by the powder manufacturer's recommendations and the required coating quality standards.

Main Production Line Components

The final equipment scope is determined according to the customer's manufacturing process.

Powder Coating Production Process

A typical production sequence includes:Manual Loading → Surface Pretreatment → Moisture Drying → Automatic Powder Spraying → Thermal Curing → Cooling → Inspection → Manual Unloading

1. Workpiece Loading and Surface Preparation

Metal components are placed onto suitable hangers before entering the coating process.Surface cleaning removes contaminants such as processing oils, grease, dust, and fabrication residues that could interfere with coating adhesion.The cleaning method is selected according to the substrate material and initial surface condition.

2. Chemical Pretreatment

After cleaning, the workpieces undergo an appropriate chemical pretreatment process to prepare the substrate for powder application.The treatment method depends on the metal type and required coating performance.For steel components, suitable phosphate or alternative conversion treatments may be used. Aluminum components may require chromate or chrome-free conversion coating systems.Pretreatment equipment can be designed as a spray or immersion system according to the product geometry, production capacity, and available workshop space.

3. Moisture Drying

Following pretreatment and rinsing, the workpieces enter the drying section.The drying oven removes residual surface moisture before electrostatic powder application.Drying conditions are determined according to workpiece dimensions, material thickness, conveyor speed, and the required production output.

4. Automatic Powder Application

The prepared workpieces enter the PVC spray booth, where electrostatic spray guns apply powder to the grounded metal surfaces.The spraying equipment is arranged to provide suitable coverage of the required coating areas.Automatic gun positioning, reciprocator movement, and powder delivery parameters can be adjusted according to the product type and coating specification.The powder extraction system collects airborne overspray during operation.

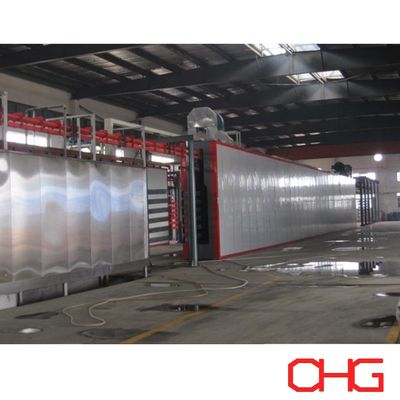

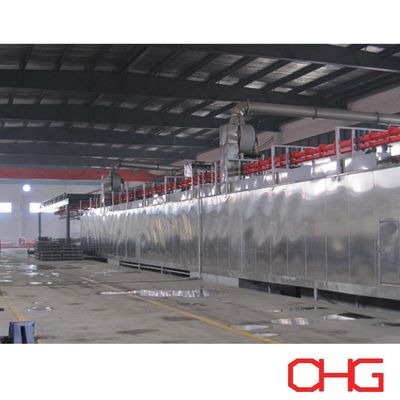

5. Powder Curing

After spraying, coated components are transported to the curing oven.During controlled heating, the powder melts and flows to form a continuous film. Thermosetting powder coatings subsequently undergo chemical cross-linking to develop their final properties.The curing process is designed according to the powder manufacturer's specifications, taking into account the required metal temperature, workpiece thickness, and residence time.

6. Cooling

After curing, the coated components pass through a cooling area.Natural or forced-air cooling can be selected according to the workpiece characteristics and production requirements.The products are cooled to a suitable handling temperature before unloading.

7. Inspection and Unloading

Finished workpieces are inspected according to the required coating specification.Typical inspection items include dry film thickness, surface appearance, adhesion, color consistency, and visible coating defects.After inspection, the components are manually removed from the conveyor and transferred to the next manufacturing operation.

Advantages of the Power and Free Conveyor Configuration

The Power and Free conveyor provides greater control over workpiece movement than a basic continuously driven overhead system.Its carrier accumulation and stopping functions can help coordinate different production operations.Key advantages include:

• Independent carrier stopping at designated stations
• Controlled accumulation before processing areas
• Flexible coordination of loading and unloading
• Reduced need for repeated manual transportation
• Adaptability to different workpiece dimensions
• Efficient use of overhead workshop space
• Integration with automated spraying and curing equipment

Conveyor routing, carrier capacity, and operating logic are developed according to the specific project.

Powder Recovery and Material Management

Powder recovery is an important part of an industrial coating system.During spraying, not all powder particles deposit onto the workpiece. A suitable extraction system captures the airborne overspray and directs it to the collection equipment.The selected recovery system depends on several factors:

• Powder characteristics
• Number of coating colors
• Color-change frequency
• Required production capacity
• Spray booth dimensions
• Coating quality requirements
• Powder reuse policy

For production involving frequent color changes, the spray booth and recovery equipment should also be evaluated for cleaning accessibility and changeover procedures.The recovery arrangement is selected to support the customer's operating requirements rather than applying a fixed configuration to every production line.

Suitable Metal Products and Applications

The production line can be adapted for a range of industrial metal components.Typical applications include:

• Fabricated steel structures
• Electrical cabinets and enclosures
• Metal furniture components
• Machinery frames
• Industrial equipment housings
• Storage racks and shelving
• Automotive metal components
• Aluminum fabricated parts
• Metal brackets and supports
• General industrial metal products

The suitability of each application depends on the workpiece dimensions, weight, surface preparation requirements, and coating specification.

Customized Technical Configuration

Engineering Design Based on Actual Production Requirements

CHG develops each powder coating production line according to the customer's manufacturing conditions.To prepare a preliminary layout and quotation, the following information is required:

• Workpiece drawings or photographs
• Product material
• Maximum length, width, and height
• Maximum workpiece weight
• Required hourly or daily production capacity
• Number of workpieces per hanger
• Required coating thickness
• Powder coating type
• Number of colors and color-change frequency
• Pretreatment requirements
• Available factory dimensions
• Workshop clear height
• Available heating energy
• Electrical supply specifications
• Required automation level

These details allow the engineering team to evaluate the conveyor arrangement, spray booth dimensions, powder recovery configuration, curing capacity, and overall production layout.

Customized Powder Coating Production Lines from CHG

CHG provides complete powder coating production line solutions for manufacturers requiring integrated surface finishing and material handling equipment.This configuration combines a PVC powder spray booth, automatic electrostatic spraying, powder recovery equipment, and a Power and Free conveyor, with manual loading and unloading for flexible handling of different metal components.The system can be adapted to the customer's product range, required production capacity, and factory conditions.Contact CHG with your workpiece specifications and production requirements to receive a customized powder coating line proposal and quotation.
