Hardware Spraying Equipment for Customized Powder Coating Line of Various Sizes Aluminum Profiles

Automatic Aluminum Profile Powder Coating Line with Manual Touch-Up Stations

Integrated Powder Finishing System with Overhead Conveyor and Powder Recovery

CHG supplies automatic powder coating production lines for aluminum profiles, combining electrostatic spraying equipment, manual touch-up stations, and overhead conveyor transportation in a coordinated surface finishing system.

This production line is developed for aluminum extrusions with different lengths, cross-sectional designs, and coating requirements. Automatic spray guns perform the main powder application, while manual operators can provide additional coverage for recessed areas, corners, and complicated profile geometries.

The overhead conveyor transports suspended profiles through the treatment, spraying, curing, and cooling stages. Manual loading and unloading allow operators to accommodate different product configurations without requiring a fully automated workpiece handling system.

With a customized spray booth, powder recycling equipment, and application-specific conveyor design, the line offers a practical solution for manufacturers seeking a balance between production automation and finishing flexibility.

Main Equipment Configuration

The production line integrates the essential equipment required for aluminum powder coating.

Equipment dimensions, spraying arrangements, and production capacity are determined according to the customer's products and operating requirements.

Automatic Spraying Combined with Manual Touch-Up

The coating section uses a combination of automatic and manual powder application.

Automatic Electrostatic Spraying

Automatic spray guns apply powder to aluminum profiles as they travel through the spray booth.

The spraying arrangement can be configured with multiple guns and reciprocating mechanisms according to the profile dimensions, conveyor speed, and required coating coverage.

Automatic application is particularly suitable for repeated production of profiles with similar dimensions and surface requirements.

It supports consistent spraying sequences and reduces the need for continuous manual application across all workpiece surfaces.

Manual Supplementary Spraying

Some aluminum extrusions feature narrow channels, internal corners, deep recesses, or complicated cross-sections.

These geometries may require additional attention during powder application.

Manual touch-up stations allow operators to adjust the spray gun angle, distance, and application technique for specific areas.

The combined arrangement is useful for manufacturers processing a broad range of aluminum profiles, including products with different cross-sectional shapes.

The final number and positioning of automatic and manual spray guns are determined during engineering design.

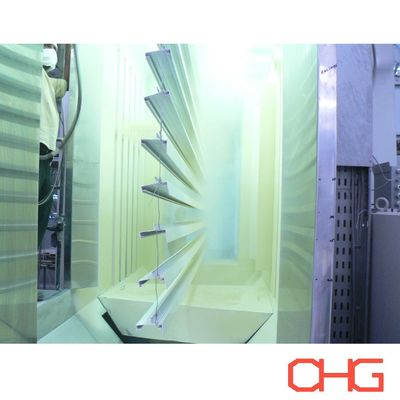

Powder Coating Booth

The powder spray booth provides a dedicated enclosure for electrostatic powder application.

Its internal dimensions are designed around the maximum profile size, hanging orientation, conveyor position, and spraying equipment.

For aluminum extrusion applications, booth design must also consider access to different profile surfaces and the required working space for manual touch-up operators.

Spray Booth Design Features

Depending on the project, the booth configuration can include:

• Automatic spray gun installation positions

• Reciprocator openings

• Manual touch-up stations

• Conveyor passage openings

• Powder extraction connections

• Lighting and maintenance access

• Cleaning arrangements

• Integration with powder recovery equipment

The booth construction material and recovery configuration are selected according to the customer's operating conditions and powder coating requirements.

Proper airflow management is important for controlling airborne powder and supporting stable spraying conditions.

Powder Recycling and Recovery System

During electrostatic powder spraying, some powder particles do not deposit on the workpiece.

The powder recovery system collects this overspray from the booth.

Depending on the selected configuration, the system may use cyclone separation, cartridge filtration, or a combination of recovery technologies.

Main Functions

The powder recycling system can support:

• Collection of oversprayed powder

• Separation of recoverable powder where applicable

• Filtration of extracted air

• Reduction of powder accumulation inside the booth

• Improved powder material management

• Integration with automatic spraying equipment

Recovered powder may be reused when permitted by the powder manufacturer's recommendations and the customer's coating quality requirements.

Recovery efficiency and suitability for reuse depend on the equipment design, powder characteristics, contamination control, and operating conditions.

For manufacturers working with multiple colors, the recovery arrangement should also consider booth cleaning and color-change procedures.

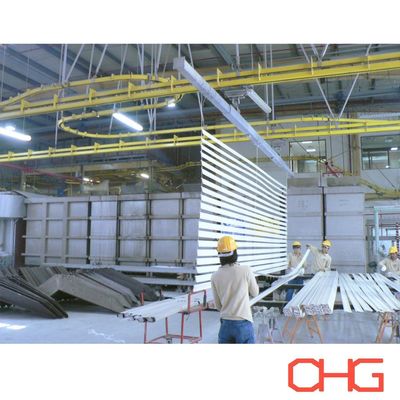

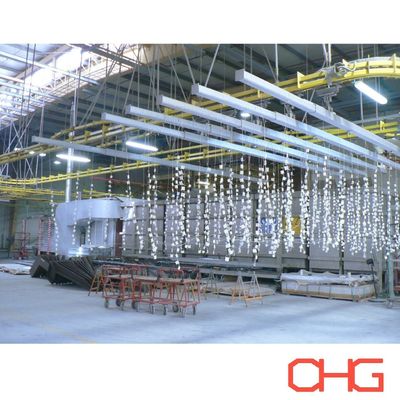

Overhead Conveyor System

The overhead conveyor provides continuous transportation of aluminum profiles between the different production sections.

By suspending workpieces above the factory floor, the conveyor helps organize material flow while preserving floor space for equipment and operator access.

Conveyor Configuration

The system is designed according to:

• Maximum aluminum profile length

• Workpiece weight

• Number of profiles per hanger

• Required hanger spacing

• Conveyor operating speed

• Factory clear height

• Production capacity

• Required drying and curing residence times

• Loading and unloading arrangements

Customized hangers can be designed for different extrusion profiles to maintain suitable positioning during spraying and curing.

A continuous overhead conveyor is commonly used for coordinated production. A Power and Free conveyor can be considered where independent carrier stopping or accumulation is required.

Aluminum Powder Coating Production Process

The standard process can be arranged as follows:

Manual Loading → Cleaning and Pretreatment → Drying → Automatic Powder Spraying → Manual Touch-Up → Curing → Cooling → Quality Inspection → Manual Unloading

1. Surface Cleaning

Before powder coating, aluminum profiles are cleaned to remove processing oils, lubricants, dust, and other contaminants.

Cleaning is essential for preparing the substrate for subsequent chemical treatment and coating application.

The cleaning method is selected according to the alloy, surface condition, and required finishing performance.

2. Chemical Pretreatment

After cleaning, the aluminum profiles undergo an appropriate pretreatment process.

Depending on the application, the process may include etching, rinsing, and chemical conversion coating.

For aluminum substrates, chromate or chrome-free conversion treatment may be selected according to the required corrosion protection, environmental requirements, and coating specification.

The pretreatment equipment can be designed as a spray or immersion system based on production requirements.

3. Moisture Drying

The treated profiles pass through a drying oven to remove residual water before powder application.

Drying conditions are determined according to profile geometry, material thickness, conveyor speed, and required production output.

Proper moisture removal helps reduce the possibility of surface defects during coating.

4. Electrostatic Powder Application

The dried aluminum profiles enter the spray booth.

Automatic electrostatic spray guns perform the primary powder application, depositing charged powder particles onto the grounded metal surfaces.

Manual touch-up can then be carried out where additional coating coverage is required.

Spraying parameters and gun positioning are selected according to the profile cross-section, required film thickness, and coating material.

5. Thermal Curing

After spraying, the profiles travel into the curing oven.

The applied powder melts and flows under controlled heating. Thermosetting powder coatings then undergo chemical cross-linking to develop their final properties.

The curing conditions are established according to the powder manufacturer's requirements, particularly the specified metal temperature and curing time.

Oven dimensions and heating capacity are designed around the profile size, thermal mass, conveyor speed, and production requirements.

6. Cooling

Once curing is completed, the aluminum profiles enter the cooling area.

Natural or forced-air cooling can be incorporated according to the factory layout and required production flow.

The profiles are cooled to a suitable temperature before unloading and subsequent handling.

7. Quality Inspection

Finished profiles undergo inspection according to the customer's coating specifications.

Typical checks include:

• Dry film thickness

• Coating appearance

• Color consistency

• Gloss level

• Adhesion

• Surface defects

• Coating coverage

Additional tests may be required for architectural or industrial aluminum finishing applications.

Advantages of the Combined Spraying Configuration

Flexible Handling of Different Profiles

Automatic spraying provides repeatable application for regular surfaces, while manual touch-up allows additional attention to complex profile sections.

Reduced Dependence on Manual Spraying

The automatic guns perform the main coating operation, allowing manual operators to focus on areas requiring supplementary coverage.

Integrated Powder Recovery

The powder recycling system collects overspray and can support material reuse when compatible with the coating requirements.

Coordinated Material Transportation

The overhead conveyor connects the processing stages and reduces repeated manual transfer of aluminum profiles.

Adaptable Production Layout

The spraying equipment, conveyor track, pretreatment system, and curing oven can be configured according to available workshop dimensions.

Customizable Automation

The number of automatic spray guns, manual stations, reciprocators, and control functions can be selected according to production capacity and product complexity.

Typical Applications

This aluminum profile powder coating line can be designed for products used in architectural and industrial manufacturing.

Architectural aluminum products

• Window and door profiles

• Curtain wall extrusions

• Facade framing components

• Decorative aluminum sections

• Architectural support profiles

Industrial aluminum products

• Machinery frames

• Equipment enclosures

• Aluminum furniture components

• Industrial extrusion sections

• Solar panel frames

• Transportation-related aluminum parts

The equipment arrangement is selected according to the product geometry, surface finishing requirements, and production volume.

Customized Technical Specifications

Engineering Design Based on Your Production Requirements

CHG develops aluminum profile powder coating systems according to the customer's actual products and factory conditions.

For a preliminary proposal, the following information is useful:

• Aluminum profile drawings or photographs

• Maximum length and cross-sectional dimensions

• Maximum workpiece weight

• Required hourly or daily output

• Number of profiles per hanger

• Powder coating specifications

• Required film thickness

• Number of colors

• Color-change frequency

• Pretreatment requirements

• Available workshop dimensions

• Factory clear height

• Heating energy and electrical supply

• Preferred automation level

Based on these details, CHG can develop an integrated solution covering the overhead conveyor, pretreatment equipment, drying oven, automatic powder spraying system, manual touch-up stations, powder recycling equipment, curing oven, and overall production line layout.

Customized Aluminum Profile Powder Coating Equipment from CHG

CHG provides complete powder coating production line solutions for manufacturers requiring efficient processing of aluminum extrusions with different sizes and surface geometries.

The combination of automatic electrostatic spraying, manual touch-up, overhead conveyor transportation, and powder recovery equipment allows the system to accommodate varied product designs while supporting coordinated production.

Contact CHG with your aluminum profile specifications, required production capacity, and factory dimensions to receive a customized powder coating line design and quotation.
