Aluminum extrusion powder coating line designed for multiple profile lengths cross sections and integrated finishing stages

Customized Aluminum Extrusion Powder Coating System with Overhead Conveyor

Integrated Surface Finishing Line for Architectural and Industrial Aluminum Profiles

CHG designs and supplies customized powder coating production lines for aluminum extrusions, providing integrated solutions for manufacturers processing aluminum profiles in different lengths, cross-sections, and configurations.

The production line features an overhead conveyor system that connects the main surface treatment and finishing stages. Operators manually load aluminum profiles onto specially designed hangers and remove the finished products after coating and cooling.

This configuration combines coordinated material transportation with flexible workpiece handling, making it suitable for manufacturers producing multiple aluminum profile types.

Rather than relying on a fixed equipment layout, CHG develops each production line according to the customer's product dimensions, coating specifications, target capacity, and workshop conditions.

Production Line Configuration

An aluminum extrusion powder coating system can integrate the following equipment:

The equipment arrangement and automation level are determined according to the required manufacturing process.

Designed for Different Aluminum Profile Shapes

Aluminum extrusion manufacturers often produce components with different cross-sectional geometries, lengths, and surface finishing requirements.

A powder coating system must accommodate these variations while maintaining suitable workpiece spacing and access for coating application.

CHG considers several factors during the engineering stage:

• Maximum aluminum profile length

• Cross-sectional dimensions

• Profile weight

• Number of profiles per hanger

• Required production output

• Hanging orientation

• Surface areas requiring coating

• Color-change frequency

• Available factory dimensions

Customized hanging fixtures can be developed to support different aluminum extrusion designs.

The conveyor layout and spray booth arrangement are coordinated with the selected hanging method to provide suitable access to the surfaces being coated.

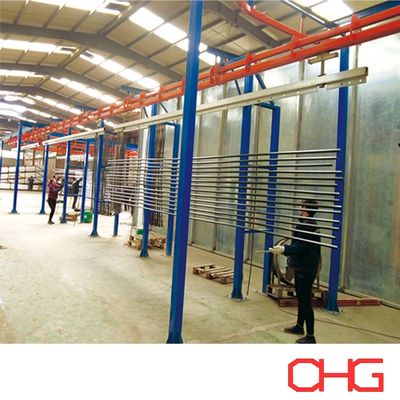

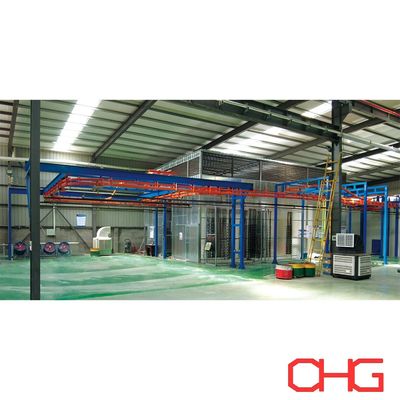

Overhead Conveyor for Continuous Production

The overhead conveyor forms the main transportation system of the powder coating line.

After loading, aluminum profiles travel through the designated processing sections without requiring repeated manual transfer between individual machines.

This arrangement supports an organized production sequence and helps utilize the available workshop space.

Conveyor Design Considerations

The conveyor is engineered according to the actual workpiece and production requirements.

Important parameters include:

• Conveyor operating speed

• Hanger spacing

• Maximum suspended load

• Track routing

• Workshop clear height

• Workpiece clearance

• Required residence time in drying and curing sections

• Loading and unloading accessibility

A continuous overhead conveyor can be used for coordinated production processes.

For projects requiring independent carrier stopping, accumulation, or more flexible routing, a Power and Free conveyor may be considered.

Aluminum Profile Powder Coating Process

The typical production sequence is:

Manual Loading → Cleaning → Chemical Pretreatment → Drying → Electrostatic Powder Spraying → Curing → Cooling → Inspection → Manual Unloading

Each stage contributes to the appearance, adhesion, and protective performance of the finished coating.

1. Cleaning and Degreasing

The first processing stage removes contaminants from the aluminum profile surfaces.

During extrusion, fabrication, transportation, and storage, aluminum components may accumulate oils, dust, lubricants, and other residues.

These substances can interfere with subsequent chemical treatment and coating adhesion.

The cleaning system is selected according to the initial surface condition, aluminum alloy, and required finishing quality.

Suitable cleaning and rinsing help prepare the profiles for the next treatment stage.

2. Aluminum Chemical Pretreatment

After cleaning, the aluminum profiles undergo chemical pretreatment to improve the suitability of the substrate for powder coating.

Depending on the required performance, the treatment process may include etching, rinsing, conversion coating, and final rinsing.

For aluminum substrates, common options include chromate conversion treatment and chrome-free conversion coating technologies.

The selected process depends on the intended application, corrosion resistance requirements, environmental regulations, and coating specification.

Pretreatment equipment can be configured as a spray system or immersion system according to the workpiece dimensions and production arrangement.

3. Moisture Drying

Following chemical pretreatment, the profiles are transported through a drying section.

Residual moisture must be removed before powder application to reduce the risk of coating defects.

Drying conditions are selected according to profile dimensions, section thickness, conveyor speed, and heating requirements.

The drying equipment is integrated with the conveyor system to support the required production flow.

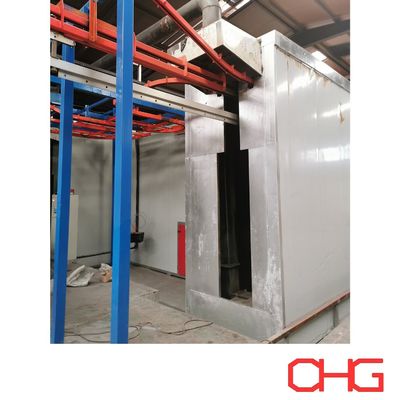

4. Electrostatic Powder Application

Once the aluminum profiles are clean and dry, they enter the powder coating booth.

Electrostatic spray guns apply charged powder particles to the grounded aluminum surfaces.

The spraying arrangement is designed according to the profile geometry, hanging orientation, line speed, and required coating thickness.

Automatic spraying equipment may include reciprocators and multiple electrostatic guns positioned to cover the designated surfaces.

Manual touch-up stations can also be incorporated for products with recessed areas, complicated sections, or other surfaces requiring supplementary application.

A suitable powder recovery system collects overspray and supports powder management during production.

5. Powder Curing

After spraying, the coated profiles pass into the curing oven.

During heating, the powder coating melts and flows to form a continuous film. For thermosetting powder coatings, the material also undergoes chemical cross-linking.

The curing process must follow the coating manufacturer's specified metal-temperature and residence-time requirements.

Because aluminum profiles can differ considerably in wall thickness and mass, oven design takes account of the thermal characteristics of the actual workpieces.

Suitable curing conditions help develop the required coating appearance, adhesion, and mechanical performance.

6. Cooling

The coated profiles leave the curing oven and enter the cooling section.

Natural cooling or forced-air cooling can be selected according to the production capacity, available space, and handling requirements.

The cooling area allows workpieces to reach an appropriate temperature before inspection and unloading.

7. Finished Product Inspection

After cooling, the coated aluminum profiles are examined according to the customer's quality requirements.

Inspection procedures may include:

• Dry film thickness measurement

• Surface appearance assessment

• Color consistency

• Gloss verification

• Adhesion testing

• Identification of coating defects

• Additional tests required by applicable finishing standards

The inspection requirements are established according to the product application and coating specification.

Advantages of the Customized Aluminum Powder Coating Line

Adaptable to Multiple Profile Dimensions

The production line can be engineered to process different aluminum extrusion sizes and shapes through customized hangers, conveyor spacing, and spraying arrangements.

Organized Workpiece Transportation

The overhead conveyor links the production stages and reduces the need for repeated manual handling between processes.

Flexible Loading and Unloading

Manual handling stations allow operators to position and remove profiles according to their geometry and hanging requirements.

Integrated Surface Preparation

Pretreatment and drying equipment can be incorporated into the production line to prepare aluminum surfaces before powder application.

Configurable Spraying Equipment

The powder coating system can be arranged with automatic guns, reciprocators, manual touch-up stations, and suitable powder recovery equipment according to the production requirements.

Factory-Specific Layout

Equipment positioning is developed around the available workshop dimensions, material flow, access requirements, and maintenance space.

Typical Applications

The production line can be adapted for aluminum products used in a variety of industries.

Architectural applications

• Aluminum window frames

• Door frame extrusions

• Curtain wall profiles

• Building facade components

• Decorative aluminum sections

• Architectural support profiles

Industrial applications

• Equipment frames

• Machinery structures

• Aluminum furniture components

• Industrial mounting profiles

• Solar panel frames

• General extruded aluminum parts

Different products may require different pretreatment processes, powder formulations, film thicknesses, and curing conditions.

Custom Engineering and Technical Parameters

CHG develops aluminum powder coating production lines according to the customer's actual operating requirements.

Information Required for a Technical Proposal

To prepare a suitable production line design, the following information is helpful:

• Aluminum profile drawings or photographs

• Maximum profile length and cross-sectional dimensions

• Maximum workpiece weight

• Required production capacity

• Number of profiles per hanger

• Powder coating type and required film thickness

• Applicable surface finishing standards

• Number of colors and color-change frequency

• Pretreatment requirements

• Available workshop dimensions and clear height

• Available heating energy

• Local electrical supply

• Required automation level

These details allow the engineering team to evaluate the appropriate equipment dimensions, conveyor configuration, process arrangement, and overall factory layout.

Aluminum Profile Powder Coating Solutions from CHG

CHG provides integrated powder coating production line solutions for aluminum extrusion manufacturers seeking equipment designed around their products and production conditions.

Our engineering scope covers surface pretreatment, drying, electrostatic powder spraying, powder recovery, overhead conveyor systems, curing, cooling, and production line controls.

By coordinating these processes within a customized layout, CHG helps manufacturers establish a powder coating system suited to their required finishing quality and production capacity.

Contact CHG with your aluminum profile specifications and factory requirements to receive a customized powder coating line design and quotation.
