Automotive Battery Enclosure E-Coating Line | Customized KTL / CED Production System

Industrial Electrophoretic Coating Solution for Electric Vehicle Battery Housings

CHG provides custom-engineered electrophoretic coating production lines (E-coating / KTL / CED) for automotive battery enclosures, battery trays, and other metal components used in electric vehicles and energy storage applications.

Automotive battery housings require reliable surface protection because they may be exposed to moisture, road contaminants, temperature fluctuations, and other demanding service conditions.

Electrophoretic deposition uses an electrical field to deposit a protective coating onto conductive metal surfaces. When combined with suitable pretreatment and curing processes, the technology can provide consistent film formation, good corrosion resistance, and effective coating coverage on complex metal assemblies.

CHG develops integrated E-coating systems according to the customer's workpiece materials, production capacity, coating specifications, factory layout, and required automation level.

E-Coating Applications for Automotive Battery Components

The production line is designed for battery enclosure components with different dimensions, structural configurations, and manufacturing requirements.

Typical applications include:

• Electric vehicle battery enclosures

• Automotive battery trays

• Battery box housings

• Battery enclosure covers

• Welded battery support structures

• Metal battery mounting components

• Battery protection frames

• Other conductive metal automotive components

The system can be engineered for suitable substrates such as carbon steel, galvanized steel, and aluminum alloys.

Because different substrates require different surface preparation methods and coating conditions, material compatibility must be evaluated during process design.

How Electrophoretic Coating Works

Electrophoretic coating is an immersion-based surface finishing process in which electrically charged coating particles migrate through a water-based bath and deposit onto the workpiece under an applied electrical field.

For cathodic electrophoretic deposition (CED / KTL), the workpiece functions as the cathode.

During coating, a controlled electrical potential causes the coating material to deposit onto the conductive substrate, forming a continuous wet film.

After deposition, the coated component undergoes rinsing and thermal curing to develop the required protective properties.

Unlike conventional spray painting, electrophoretic coating can reach many recessed areas and internal surfaces that are accessible to the coating bath and electrical field.

Actual coating coverage depends on the workpiece geometry, electrical conditions, bath formulation, and process design.

Typical Automotive Battery Enclosure E-Coating Process

A complete electrophoretic coating production line can be configured with the following sequence:

Loading → Surface Cleaning → Chemical Pretreatment → Rinsing → Electrophoretic Deposition → Ultrafiltration Rinsing → Final Rinsing → Thermal Curing → Cooling → Inspection → Unloading

The exact treatment stages are determined according to the substrate material, required corrosion protection, coating chemistry, and applicable automotive specifications.

1. Surface Cleaning and Degreasing

Before electrophoretic deposition, battery enclosure components undergo cleaning to remove contaminants generated during fabrication and handling.

These may include:

• Processing oils

• Grease

• Dust and dirt

• Welding residues

• Metalworking contamination

• Other surface impurities

The cleaning process is selected according to the workpiece material and surface condition.

Proper cleaning is important for achieving consistent subsequent pretreatment and coating performance.

2. Chemical Surface Pretreatment

Following cleaning, the workpieces undergo suitable chemical pretreatment.

The pretreatment system may include rinsing, surface conditioning, and conversion treatment stages, depending on the substrate and required corrosion resistance.

For steel components, appropriate phosphate or alternative conversion coating processes may be considered.

For aluminum or mixed-metal assemblies, the chemical treatment must be compatible with the relevant materials and coating requirements.

The process is developed according to the customer's workpiece specifications and selected pretreatment chemistry.

3. Electrophoretic Deposition

Prepared battery enclosures are immersed in the E-coating tank.

A controlled electrical field deposits the coating material onto the conductive workpiece surfaces.

The deposition process is influenced by several operating parameters, including:

• Applied voltage

• Coating time

• Bath temperature

• Bath conductivity

• Coating solids content

• Bath pH

• Workpiece geometry

• Coating formulation

These parameters are selected and controlled according to the coating supplier's technical requirements and the desired dry film thickness.

4. Ultrafiltration and Rinsing

After electrophoretic deposition, the coated workpieces pass through appropriate rinsing stages.

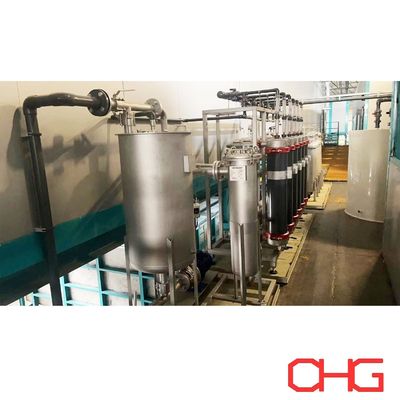

An ultrafiltration system can be used to recover coating material from the bath and provide permeate for rinsing operations.

This helps reduce coating material losses and supports bath management.

The number and arrangement of rinsing stages depend on the coating system, workpiece geometry, and required process performance.

5. Thermal Curing

After rinsing, the coated components enter the curing oven.

Controlled heating causes the deposited coating film to undergo the required curing reactions and develop its specified properties.

The curing system is designed according to:

• Coating manufacturer's curing specification

• Required metal temperature

• Battery enclosure dimensions

• Material thickness

• Workpiece mass

• Required production capacity

• Conveyor configuration

The actual metal temperature and curing duration are important considerations, particularly for large or heavy battery enclosure assemblies.

6. Cooling and Inspection

Following curing, coated components are cooled before unloading and further handling.

Finished products can be inspected according to the customer's automotive coating specifications.

Typical quality checks may include:

• Dry film thickness

• Coating appearance

• Adhesion

• Corrosion resistance

• Coating coverage

• Curing performance

• Visible coating defects

Additional tests can be incorporated according to the applicable product standards and end-use requirements.

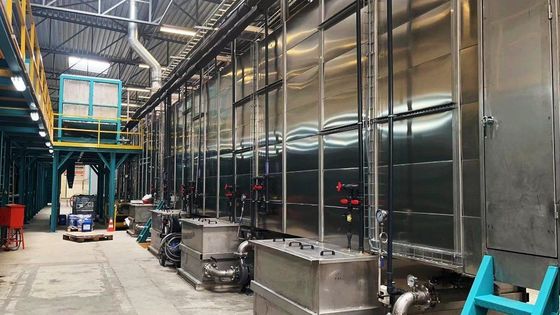

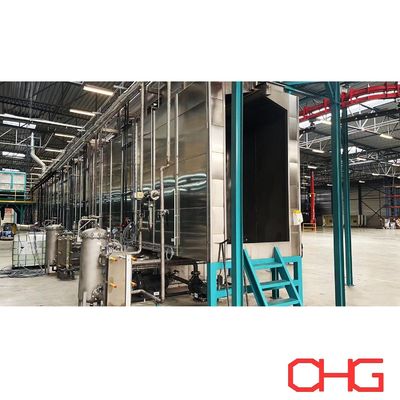

Main Equipment of the E-Coating Production Line

An integrated electrophoretic coating system can include:

The equipment configuration is customized according to the production process and technical specifications.

Project Engineering and Implementation Experience

CHG has experience coordinating customized electrophoretic coating projects for automotive battery enclosure applications.

The project implementation process involves engineering development, equipment manufacturing, installation coordination, commissioning, and operator training.

Customized Production Line Design

During the engineering stage, the production line layout is developed according to the customer's workpieces, production requirements, and available factory conditions.

Design considerations include:

• Maximum battery enclosure dimensions

• Workpiece weight

• Required production throughput

• Pretreatment requirements

• E-coating tank dimensions

• Workpiece immersion orientation

• Conveyor arrangement

• Curing requirements

• Maintenance access

• Workshop layout

Technical drawings and equipment arrangements are reviewed and refined to coordinate the different production sections.

Equipment Manufacturing and Inspection

Equipment fabrication follows the approved engineering drawings and agreed technical specifications.

Manufacturing inspection is carried out to verify relevant equipment dimensions, fabrication quality, and component conformity.

Project coordination and production progress communication help ensure that manufacturing remains aligned with the approved technical requirements.

Overseas Installation and Commissioning

For the referenced automotive battery enclosure project, CHG provided overseas installation and commissioning support.

The implementation included equipment assembly supervision, system adjustment, process commissioning, and production verification.

The installation and commissioning phase was completed within six months, followed by successful production testing and project handover.

Operator and Maintenance Training

Training was provided to support equipment operation and maintenance after commissioning.

The training scope included:

• Production line operating procedures

• Process parameter management

• Routine equipment inspection

• Preventive maintenance

• Fault identification and troubleshooting

• Safe operating practices

The objective was to support stable production startup and enable the customer's personnel to operate the system effectively.

Advantages of Electrophoretic Coating for Battery Enclosures

Consistent Protective Film Formation

Electrophoretic deposition provides controlled coating formation on electrically conductive surfaces.

With suitable process design, the coating can reach many complex geometries and recessed areas that may be difficult to access using conventional spray application.

Corrosion Protection

When properly applied over suitable pretreatment and fully cured, E-coating can provide effective corrosion protection for automotive metal components.

Actual performance depends on the coating formulation, substrate, pretreatment process, film thickness, and service environment.

Suitable for Automated Production

Electrophoretic coating can be integrated with automated workpiece handling, tank transfer equipment, process monitoring, and curing systems.

This makes it suitable for industrial manufacturers requiring repeatable processing of large production batches.

Coating Material Recovery

Ultrafiltration and rinsing systems can recover coating material that would otherwise be lost during post-deposition rinsing.

This supports more efficient paint utilization and reduces material losses.

Water-Based Coating Technology

Most industrial electrophoretic coating systems use water-based formulations, generally resulting in lower solvent emissions than many conventional solvent-based coating processes.

However, coating formulations may still contain organic solvents and other chemicals, so appropriate ventilation, wastewater treatment, and environmental controls remain necessary.

Process Monitoring and Control

Integrated control systems can monitor important operating parameters and support consistent production conditions.

These functions help operators manage the coating process and identify deviations requiring adjustment.

Process Control and Quality Management

Maintaining a stable electrophoretic coating bath is important for achieving repeatable coating performance.

Depending on the selected coating technology, the production line can incorporate monitoring and control of:

• Bath temperature

• Applied voltage and current

• Coating time

• Bath conductivity

• pH

• Solids content

• Circulation and filtration conditions

• Ultrafiltration operation

• Curing oven temperature

Film thickness, adhesion, appearance, and corrosion resistance are verified through appropriate quality inspection and testing procedures.

The monitoring configuration is determined according to the selected paint system and customer's quality requirements.

E-Coating Materials and Finish Options

Electrophoretic coating systems can be developed for different coating formulations, subject to technical compatibility.

For automotive corrosion protection, black cathodic epoxy E-coating is a common solution.

Other electrophoretic formulations may provide different colors or functional characteristics, depending on the coating chemistry and supplier.

Color availability, coating appearance, and performance requirements should be confirmed before selecting the E-coating material and designing the production process.

Customized Engineering for Automotive E-Coating Lines

CHG develops E-coating production systems according to the actual battery enclosure design and manufacturing requirements.

For preliminary engineering and quotation, the following information is important:

Based on these parameters, our engineering team can develop the process configuration, tank arrangement, conveyor system, curing equipment, utility requirements, and complete production line layout.

CHG Electrophoretic Coating Solutions for Automotive Manufacturing

CHG provides customized KTL / CED / E-coating production line solutions for automotive battery enclosures and other conductive metal components requiring protective surface finishing.

Our engineering scope can include surface pretreatment, electrophoretic deposition equipment, paint circulation and filtration, ultrafiltration recovery, conveyor systems, curing ovens, process controls, installation coordination, commissioning, and technical training.

With project experience in automotive battery enclosure coating, CHG supports customers throughout the development and implementation of integrated electrophoretic coating systems.

Contact CHG with your battery enclosure drawings, production capacity, substrate information, and coating requirements to receive a customized E-coating production line proposal and quotation.
