Custom Powder Coating Line for Aluminum Profiles Featuring Overhead Conveyor and Electrostatic Powder Application System

Aluminum Profile Powder Coating Line with Overhead Conveyor System

Custom-Designed Surface Finishing Equipment for Aluminum Extrusions

CHG offers powder coating production lines for aluminum profiles, developed to meet the surface finishing requirements of architectural and industrial aluminum manufacturers.

The system incorporates an overhead conveyor to transport aluminum profiles through the coating process. Manual loading and unloading stations provide flexibility for handling products with different lengths, cross-sectional shapes, and production batch sizes.

The complete line can integrate chemical pretreatment, moisture drying, electrostatic powder application, curing, cooling, and quality inspection. Equipment specifications and production layout are determined according to the customer's products, output requirements, coating standards, and available workshop space.

Key Features of the Aluminum Powder Coating Line

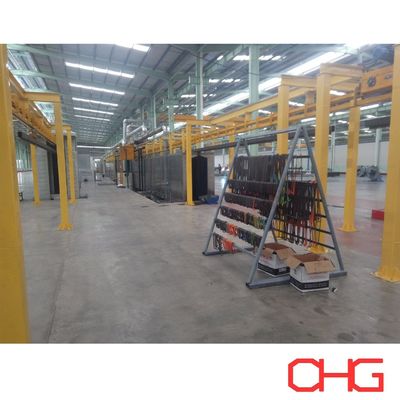

Overhead Conveyor for Continuous Material Handling

The conveyor connects different processing sections, allowing aluminum profiles to move through the production line in a coordinated sequence.

Its overhead arrangement helps utilize workshop space efficiently while reducing repeated manual transportation between individual processing stages.

Conveyor speed, hanger spacing, track layout, and loading capacity are calculated according to the actual profile dimensions and required production output.

Flexible Manual Loading and Unloading

Operators load aluminum profiles onto specially designed hangers before the coating process and remove finished products after curing and cooling.

This arrangement is particularly practical for manufacturers producing multiple aluminum profile types, as it accommodates variations in product dimensions and hanging requirements.

Electrostatic Powder Application

The spraying section can be equipped with automatic electrostatic spray guns and reciprocators to support continuous coating operations.

Manual touch-up equipment can be incorporated when additional coverage is required for recessed surfaces, channels, or complicated profile geometries.

Customized Production Line Layout

The equipment arrangement is developed according to factory dimensions, available clear height, material flow, and maintenance requirements.

Both the coating process and material handling system can be adapted to the customer's manufacturing conditions.

Aluminum Profile Powder Coating Process

A typical production sequence includes:

Manual Loading → Surface Cleaning → Chemical Pretreatment → Moisture Drying → Electrostatic Powder Spraying → Curing → Cooling → Inspection → Manual Unloading

Each stage is designed to support the required coating appearance, adhesion, and corrosion performance.

1. Aluminum Surface Cleaning

Before powder coating, aluminum profiles undergo cleaning to remove substances that could interfere with subsequent surface treatment.

These contaminants may include extrusion lubricants, grease, dust, handling residues, and other impurities.

The cleaning method is selected according to the aluminum alloy, initial surface condition, and chemical pretreatment requirements.

Effective cleaning provides a suitable starting point for the remaining coating process.

2. Chemical Pretreatment

Following cleaning, the profiles receive chemical surface treatment to prepare the aluminum substrate for powder application.

Depending on the selected process, pretreatment may involve:

• Degreasing

• Water rinsing

• Etching or other surface treatment

• Intermediate rinsing

• Conversion coating

• Final rinsing

For aluminum applications, chromate or chrome-free conversion treatment can be selected according to the required corrosion protection, coating specification, and environmental requirements.

The pretreatment system may use spray or immersion equipment, depending on the profile geometry, production capacity, and factory conditions.

3. Moisture Removal

After chemical pretreatment, the profiles enter a drying section to eliminate residual surface moisture.

Drying temperature and residence time are determined according to the workpiece dimensions, aluminum section thickness, conveyor speed, and required output.

Adequate drying helps prevent moisture-related coating defects during powder application and curing.

4. Electrostatic Powder Spraying

The prepared profiles enter the powder coating booth, where electrostatic spray guns apply charged powder particles to the grounded aluminum surfaces.

The spraying system is designed according to profile cross-sections, hanging orientation, line speed, and required coating thickness.

Depending on production requirements, the equipment can include automatic spray guns, reciprocators, manual touch-up stations, powder supply equipment, and a powder recovery system.

Oversprayed powder is collected through the booth extraction and recovery equipment. The recovery arrangement can be selected according to powder characteristics, production volume, and color-change frequency.

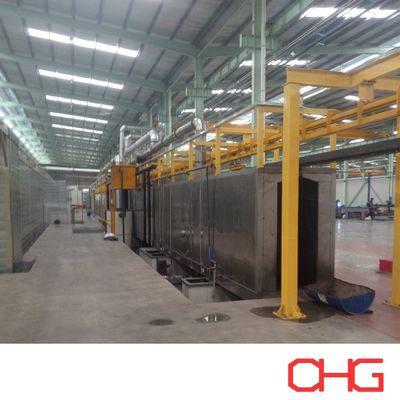

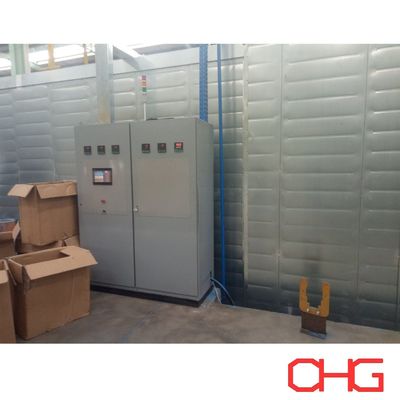

5. Thermal Curing

Once the powder has been applied, the profiles are conveyed into the curing oven.

Controlled heating causes the powder coating to melt, flow, and chemically cross-link, forming a continuous coating film.

Curing parameters are determined according to the powder manufacturer's specifications, taking into account the actual metal temperature of the aluminum profiles.

The curing system is engineered according to profile dimensions, wall thickness, conveyor speed, production capacity, and available heating energy.

6. Cooling After Curing

After leaving the curing oven, the coated profiles pass through a cooling area.

Natural or forced-air cooling can be used according to production requirements and available workshop space.

The cooling section allows the profiles to reach a suitable handling temperature before inspection and unloading.

7. Coating Quality Inspection

Finished aluminum profiles are inspected according to the required coating specification.

Typical inspection procedures may include:

• Dry film thickness measurement

• Surface appearance examination

• Color and gloss verification

• Adhesion testing

• Coating uniformity assessment

• Identification of visible defects

Additional tests can be incorporated when required by architectural finishing specifications or other applicable product standards.

Conveyor and Hanger Design

Aluminum extrusion production often involves profiles with significant differences in length, cross-section, and weight.

The material handling system must therefore be designed around the actual product range.

Important engineering considerations include maximum profile length, hanger spacing, number of profiles per carrier, workpiece weight, conveyor speed, and workshop clear height.

Customized hangers help maintain suitable workpiece positioning during pretreatment, spraying, and curing.

A continuous overhead conveyor is suitable for production processes with coordinated operating speeds. Where independent carrier stopping or accumulation is required, a Power and Free conveyor can also be considered.

The final conveyor configuration is selected according to the production process and required material flow.

Applications of Aluminum Profile Powder Coating Equipment

This production line can be adapted for different categories of extruded aluminum products.

Architectural aluminum products

• Window and door profiles

• Curtain wall components

• Building facade profiles

• Decorative aluminum sections

• Architectural framing systems

Industrial aluminum products

• Machinery frames

• Equipment structures

• Aluminum furniture components

• Industrial extrusion profiles

• Transportation-related aluminum parts

• Solar panel frames and supporting components

Different applications may require different pretreatment chemistry, coating specifications, spraying arrangements, and curing conditions.

Advantages for Aluminum Extrusion Manufacturers

Adaptability to multiple profile types: Customized hangers and manual loading stations make it possible to process products with different geometries and dimensions.

Coordinated production flow: The overhead conveyor connects individual processing stages and reduces repeated workpiece transfers.

Consistent powder application: Automatic spraying equipment supports repeatable application during continuous production, with manual touch-up available for complex geometries.

Application-specific surface treatment: Pretreatment chemistry and equipment are selected according to the aluminum substrate and required coating performance.

Efficient factory layout: The line arrangement is developed around available workshop dimensions, production flow, and maintenance access.

Flexible equipment configuration: Conveyor type, spray gun arrangement, powder recovery method, and automation functions can be selected according to the customer's production requirements.

Customized Engineering and Technical Specifications

CHG develops aluminum profile powder coating lines according to individual project requirements rather than using a fixed equipment configuration.

For preliminary design and quotation, the following technical information is helpful:

Using these parameters, CHG can develop a customized production line concept covering the pretreatment equipment, drying system, overhead conveyor, powder spray booth, powder supply and recovery equipment, curing oven, cooling section, electrical controls, and overall factory layout.

Aluminum Powder Coating Production Line Solutions from CHG

CHG provides integrated powder coating equipment for aluminum extrusion manufacturers seeking a production system designed around their actual products and operating requirements.

From surface preparation and automatic spraying to conveyor transportation and thermal curing, the production line is configured to support the required coating quality and production capacity.

Contact CHG with your aluminum profile drawings, factory conditions, and production requirements to receive a customized technical proposal and quotation.
