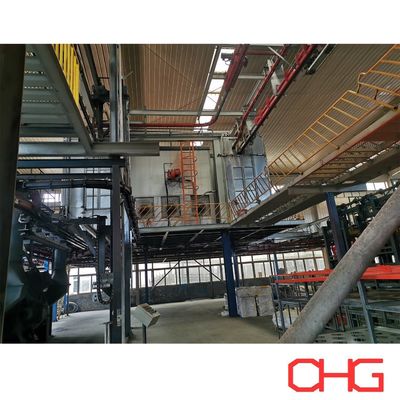

Customized Automatic Powder Coating Line Featuring Spray Booth and Power and Free Conveyor for Metal Part Processing

Automatic Powder Coating Line with PVC Spray Booth and Power and Free Conveyor

Customized Industrial Coating Equipment for Metal Components

This automatic powder coating production line is designed for manufacturers processing metal parts with different dimensions, shapes, and surface finishing requirements.

The system combines a PVC powder spray booth, a Power and Free overhead conveyor, and manual loading and unloading stations. This configuration enables automatic transportation between production stages while maintaining flexibility when handling different workpieces.

Depending on the application, the complete line can integrate chemical pretreatment, moisture drying, electrostatic powder spraying, thermal curing, cooling, and inspection.

CHG develops each powder coating system according to the customer's product characteristics, production capacity, factory layout, and coating specifications.

Main Features of the Production Line

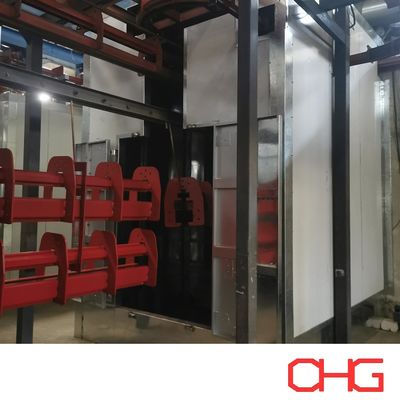

PVC Powder Spray Booth

The spraying section is equipped with a PVC booth designed for electrostatic powder coating applications.

PVC construction provides a corrosion-resistant enclosure suitable for the operating conditions of the spraying process.

The booth dimensions and internal equipment arrangement are selected according to the workpiece size, conveyor configuration, spraying requirements, and required production capacity.

Automatic electrostatic spray guns can be combined with manual touch-up equipment where additional coating coverage is necessary.

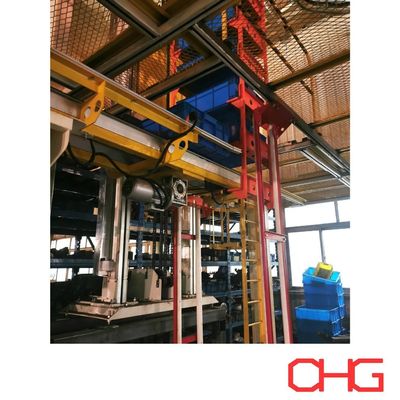

Power and Free Overhead Conveyor

The production line uses a Power and Free conveyor to transport workpieces through the coating process.

The conveyor features separate power and free tracks, allowing individual carriers to be stopped, accumulated, and released at designated locations.

Compared with a conventional continuously moving conveyor, this arrangement provides greater flexibility in coordinating different production stages.

Key functions can include:

• Independent carrier stopping and releasing

• Workpiece accumulation at selected stations

• Controlled transportation between process sections

• Coordination of different processing times

• Customized carrier spacing

• Integration with automated coating equipment

The conveyor layout, loading capacity, and operating speed are engineered according to the actual products and production requirements.

Manual Loading and Unloading

Operators manually position metal parts onto customized conveyor hangers before the coating process begins.

After curing and cooling, finished components are removed at the unloading station.

This arrangement is suitable for manufacturers processing different product types, particularly when workpiece dimensions and hanging requirements vary between production batches.

Automatic Powder Application

The powder spraying section can incorporate automatic electrostatic guns and reciprocators to provide controlled powder application during continuous production.

Spray gun quantity, positioning, and operating parameters are selected according to workpiece geometry, conveyor speed, and coating requirements.

For components with recessed surfaces, corners, or complex structures, manual touch-up stations can be included.

Typical Powder Coating Production Process

A complete coating line can follow the sequence:

Manual Loading → Surface Pretreatment → Moisture Drying → Electrostatic Powder Spraying → Curing → Cooling → Inspection → Manual Unloading

The detailed process is determined according to the substrate material and required coating performance.

1. Surface Cleaning and Preparation

Before powder application, metal components must be prepared to remove contaminants that could interfere with coating adhesion.

Common surface contaminants include:

• Oil and grease

• Dust and dirt

• Processing residues

• Handling contamination

• Surface oxidation

The cleaning method depends on the workpiece material, initial surface condition, and selected pretreatment process.

For fabricated steel components, additional mechanical preparation may be considered where necessary.

2. Chemical Pretreatment

Following cleaning, the workpieces undergo suitable chemical treatment to prepare the substrate for powder coating.

The pretreatment process is selected according to the metal type and required corrosion protection.

For steel components, the process may include degreasing, rinsing, surface conditioning, and phosphating or another suitable conversion treatment.

For aluminum components, appropriate chromate or chrome-free conversion treatment can be considered.

Pretreatment equipment may use spray or immersion methods depending on workpiece geometry, production capacity, and process requirements.

3. Moisture Drying

After wet pretreatment, the workpieces enter the drying section.

Residual moisture is removed before the components reach the powder spray booth.

Drying conditions are determined according to the workpiece dimensions, material thickness, conveyor arrangement, and required production output.

A properly dried surface helps provide stable conditions for electrostatic powder application.

4. Electrostatic Powder Spraying

Prepared metal parts are transported into the PVC powder spray booth.

Electrostatic spray guns charge the powder particles, which are attracted to the grounded workpieces.

The application system can be configured with:

• Automatic powder spray guns

• Reciprocators

• Manual touch-up guns

• Powder feeding equipment

• Powder extraction equipment

• Powder recovery system

The spraying arrangement is developed according to the product geometry, required coating thickness, and production capacity.

Powder Recovery

Oversprayed powder is collected through the extraction and recovery system.

The appropriate recovery configuration depends on production volume, powder characteristics, number of colors, and color-change frequency.

For manufacturers frequently switching between colors, the booth arrangement and cleaning requirements should be considered during the initial system design.

5. Thermal Powder Curing

Following powder application, coated workpieces are conveyed into the curing oven.

During heating, the powder melts, flows, and chemically cross-links to form a continuous coating film.

The curing system is engineered according to:

• Powder manufacturer's curing requirements

• Workpiece material

• Metal thickness

• Product dimensions

• Required production capacity

• Conveyor operating conditions

• Available heating energy

The required curing time is based on the actual metal temperature and the powder manufacturer's specifications rather than oven air temperature alone.

6. Cooling Section

After curing, coated components are transferred to the cooling area.

Natural cooling or forced-air cooling can be selected according to the production line arrangement and required throughput.

The workpieces are cooled sufficiently before unloading, inspection, and subsequent handling.

7. Finished Coating Inspection

After cooling, finished products can be inspected according to the customer's coating specification.

Typical inspection items include:

• Dry film thickness

• Surface appearance

• Coating adhesion

• Color and gloss

• Coating uniformity

• Visible defects

Additional quality tests may be specified according to the product application and applicable standards.

Advantages of This Powder Coating Line

Flexible Production Scheduling

The Power and Free conveyor allows carriers to stop and accumulate at designated locations, supporting coordination between different processing stages.

Adaptable Workpiece Handling

Manual loading and unloading, together with customized hangers, allow the system to accommodate products with different shapes and dimensions.

Integrated Automatic Spraying

Automatic powder application equipment supports repeatable coating operations and reduces dependence on fully manual spraying.

Efficient Workshop Arrangement

The overhead conveyor uses available vertical space and helps reduce repeated floor-level material transportation.

Customizable Equipment Configuration

Pretreatment, spray booth dimensions, conveyor layout, curing equipment, and automation functions are selected according to the customer's production requirements.

Suitable Industrial Applications

This powder coating production line can be configured for a variety of metal products, including:

• Electrical cabinets and enclosures

• Metal furniture components

• Automotive parts

• HVAC equipment

• Machinery components

• Storage racks and shelving

• Metal doors and frames

• Agricultural equipment components

• Aluminum profiles

• General fabricated metal products

The appropriate production line configuration depends on the workpiece dimensions, weight, material, surface finishing requirements, and production capacity.

Technical Configuration

Customized Powder Coating Line Engineering

CHG provides integrated powder coating production line solutions based on the customer's actual manufacturing conditions.

To develop an appropriate equipment configuration and quotation, we recommend providing the following information:

• Workpiece drawings or photographs

• Maximum dimensions and weight

• Workpiece material

• Required hourly or daily production capacity

• Products per carrier

• Required coating thickness and performance

• Pretreatment requirements

• Powder type

• Number of colors

• Color-change frequency

• Factory dimensions and clear height

• Available heating energy

• Local electrical specifications

• Required automation level

Our engineering team uses these parameters to determine the suitable pretreatment system, PVC powder spray booth, Power and Free conveyor, powder application and recovery equipment, curing oven, cooling section, electrical controls, and overall production line layout.

Industrial Powder Coating Solutions from CHG

CHG designs customized powder coating production lines for manufacturers seeking an integrated approach to surface treatment, automatic powder application, and workpiece transportation.

By combining a PVC spray booth with a Power and Free conveyor and flexible manual handling stations, the production line can accommodate different metal products while supporting coordinated coating operations.

Contact CHG with your workpiece specifications and production requirements to receive a customized powder coating line design and quotation.
