Automated powder coating line for aluminum profiles combining surface treatment finishing equipment and material handling

Industrial Aluminum Extrusion Powder Coating Line with Automatic Spraying

Integrated Surface Treatment and Finishing Equipment for Aluminum Profiles

CHG provides custom-engineered powder coating production lines for aluminum extrusions, combining automated coating equipment with practical material handling solutions for architectural and industrial applications.

The production line is designed to accommodate aluminum profiles of varying lengths, shapes, and cross-sectional dimensions. An overhead conveyor transports the workpieces through the processing sections, while manual loading and unloading stations allow operators to handle different profile configurations and production batches.

From chemical surface preparation to final powder curing, each stage is coordinated to support consistent coating application, efficient material movement, and the required surface finishing quality.

Rather than supplying a fixed production line configuration, CHG develops each system around the customer's products, production targets, workshop conditions, and coating specifications.

Production Line Configuration

A complete aluminum extrusion coating system can incorporate the following equipment:

The equipment arrangement, processing method, and automation functions are selected according to the individual project.

Surface Preparation for Aluminum Extrusions

Aluminum profiles require suitable surface preparation before powder coating to achieve the specified adhesion and corrosion resistance.

During extrusion, fabrication, storage, and transportation, aluminum surfaces may become contaminated with lubricants, dust, processing residues, and other impurities.

These substances must be adequately removed before the profiles enter the powder application stage.

Chemical Cleaning

The cleaning process removes oil, grease, and other surface contamination.

The cleaning chemistry and operating conditions are selected according to the aluminum alloy, contamination level, and subsequent surface treatment requirements.

Surface Treatment and Rinsing

Depending on the selected pretreatment process, the line may incorporate etching, additional cleaning, and intermediate rinsing stages.

These operations prepare the aluminum surface for the subsequent conversion treatment.

Conversion Coating

For aluminum powder coating applications, the pretreatment system can be configured for appropriate chromate or chrome-free conversion treatment.

The selected chemistry helps provide a suitable surface for powder adhesion and contributes to the required corrosion protection.

Treatment selection depends on the customer's coating specifications, environmental requirements, and applicable industry standards.

Pretreatment Equipment Options

Both spray-type and immersion-type pretreatment systems can be considered.

The appropriate configuration depends on profile geometry, required production capacity, chemical process, available factory space, and operating preferences.

Drying System Before Powder Spraying

Once the chemical pretreatment process is completed, the profiles are transferred to the moisture drying section.

Residual water must be removed before electrostatic powder application.

The drying equipment is designed according to the workpiece dimensions, aluminum section thickness, conveyor arrangement, and production throughput.

Proper drying helps reduce the risk of moisture-related coating defects and prepares the workpieces for the subsequent spraying process.

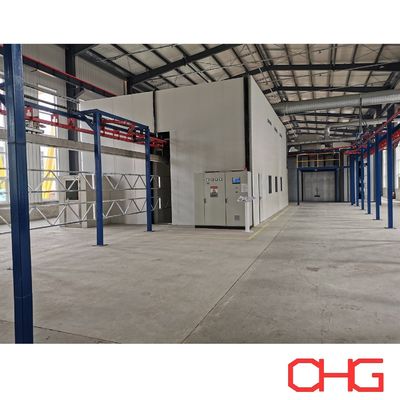

Automatic Electrostatic Powder Coating Equipment

The powder spraying section is designed for continuous application to aluminum profiles transported by the overhead conveyor.

Automatic electrostatic spray guns apply charged powder particles to the grounded workpieces. The gun arrangement is selected according to the profile cross-section, hanging orientation, conveyor speed, and required coating coverage.

Automatic Spray Guns and Reciprocators

Automatic spray guns can be installed on reciprocators to provide controlled vertical movement during spraying.

The number of guns, spraying positions, and reciprocator configuration are determined during the engineering design stage.

Manual Touch-Up Stations

Certain aluminum profiles feature channels, recessed surfaces, or complicated cross-sectional geometries that may require additional spraying attention.

Manual touch-up guns can be incorporated where necessary to improve coverage in these areas.

Powder Supply and Recovery

The spraying system can be integrated with powder feeding and recovery equipment.

The recovery arrangement is selected according to production capacity, powder characteristics, number of colors, and required color-change frequency.

For facilities producing multiple colors, the spray booth layout and cleaning requirements should be considered early in the equipment design.

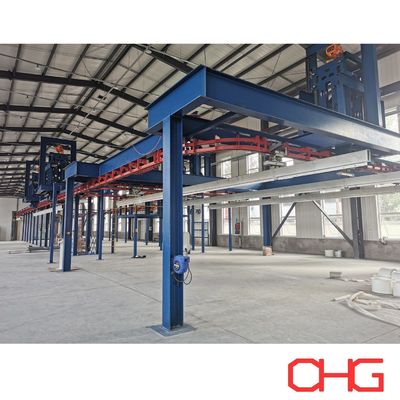

Overhead Conveyor and Profile Handling

The conveyor system connects the production stages and maintains the movement of aluminum profiles through the coating process.

For aluminum extrusion applications, the conveyor must accommodate differences in profile length, cross-section, weight, and hanging orientation.

Important design considerations include:

• Maximum profile dimensions

• Workpiece weight

• Number of profiles carried per hanger

• Hanger center distance

• Conveyor operating speed

• Required hourly production capacity

• Workshop clear height

• Loading and unloading arrangement

Continuous Overhead Conveyor

A continuous conveyor provides a straightforward transportation solution for production processes with relatively stable operating speeds.

It is suitable for coating lines where the main processing stages can operate under a coordinated continuous production sequence.

Power and Free Conveyor

For projects requiring independent carrier movement, accumulation, or controlled stopping at specific stations, a Power and Free conveyor can be considered.

This arrangement provides additional flexibility when different process sections require different transportation or handling conditions.

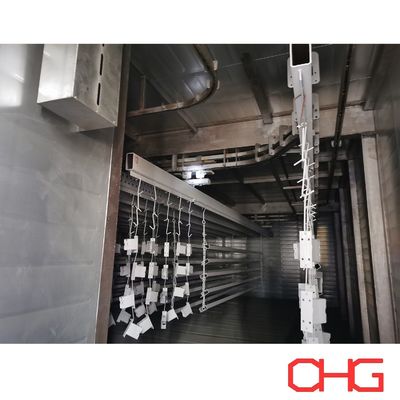

Customized Hanger Design

Hangers are developed according to the actual profile geometry and required coating orientation.

Correct workpiece positioning is important for maintaining adequate spacing, spraying access, and stable transportation throughout the production line.

Powder Curing Equipment

Following electrostatic spraying, the aluminum profiles enter the curing oven.

During the curing process, the powder coating melts, flows, and chemically cross-links to form a continuous protective film.

The oven must provide suitable heating conditions for the powder coating system and the aluminum profiles being processed.

Curing parameters are determined according to the powder manufacturer's specifications, with particular attention to the actual metal temperature and required curing duration.

The engineering design considers the profile dimensions, section thickness, conveyor speed, heating method, and required production output.

Available energy sources and local operating conditions are also taken into account when selecting the curing equipment.

Cooling and Finished Product Inspection

After the curing stage, coated aluminum profiles move through a cooling section.

Depending on the line arrangement and production capacity, cooling may be achieved through natural ventilation or a dedicated forced-air system.

The products are then inspected before unloading, packaging, or further manufacturing operations.

Quality control can include coating thickness measurement, visual inspection, color and gloss verification, and adhesion testing.

Additional tests may be required according to the applicable coating specification or intended product application.

Advantages of the Integrated Production Line

Adaptable to Different Aluminum Profile Designs

The production line can be engineered for aluminum extrusions with different lengths, wall thicknesses, and cross-sectional geometries.

Customized hangers and flexible loading arrangements support the processing of multiple product types.

Coordinated Production Flow

The overhead conveyor connects the main treatment stages, reducing repeated manual transfers between individual pieces of equipment.

Automatic Powder Application

Automatic spraying equipment supports repeatable application during continuous production and can be supplemented with manual touch-up where required.

Project-Specific Pretreatment

The chemical pretreatment system is selected according to the aluminum substrate, coating requirements, and required corrosion performance.

Flexible Production Layout

The complete line can be arranged according to workshop dimensions, available installation space, material flow, and maintenance access requirements.

Scalable Equipment Configuration

Conveyor type, spray gun quantity, powder recovery arrangement, and automation functions can be selected according to current production requirements and anticipated future needs.

Applications in Architectural and Industrial Manufacturing

The aluminum powder coating production line can be used for a variety of extruded aluminum products.

Architectural applications include window frames, door profiles, curtain wall components, decorative profiles, and other building-related aluminum products.

Industrial applications include machinery profiles, aluminum furniture components, equipment frames, transportation-related extrusions, and general fabricated aluminum parts.

The system can also be configured for aluminum profiles used in solar mounting structures and other specialized manufacturing applications.

Different product categories may require different pretreatment chemistry, coating specifications, hanging methods, and production line arrangements.

Engineering Design Based on Your Production Requirements

CHG designs aluminum extrusion powder coating lines according to the customer's manufacturing conditions and technical specifications.

Before preparing a production line proposal, our engineering team evaluates the main project parameters.

Using this information, CHG can develop a customized production line concept, including equipment selection, conveyor arrangement, process configuration, and preliminary workshop layout.

Customized Powder Coating Solutions from CHG

CHG supplies integrated powder coating production line solutions for manufacturers seeking equipment matched to their specific products and operating requirements.

Our engineering scope can cover the aluminum pretreatment system, moisture drying equipment, overhead conveyor, automatic powder spray booth, powder recovery equipment, curing oven, cooling section, electrical controls, and overall production line integration.

Whether the project involves architectural aluminum extrusions or industrial aluminum components, the system is developed around the required coating process, production capacity, and available factory space.

Contact CHG with your aluminum profile drawings, production capacity, and coating specifications to receive a customized equipment proposal and quotation.
