Automatic Powder Coating Production Line for Profiles Advanced Technology and Efficiency

Automatic Aluminum Profile Powder Coating Line

Integrated Powder Finishing System for Aluminum Extrusions

This automatic powder coating line is developed for the continuous surface finishing of aluminum profiles with different lengths, cross-sections, and application requirements.

An overhead conveyor system carries the profiles through the main processing sections, providing stable workpiece movement and connecting pretreatment, drying, powder application, curing, and cooling into an integrated production flow.

Manual loading and unloading are used to maintain flexibility when processing different profile types or production batches. The complete system is engineered according to the customer's products, required output, coating standards, and available workshop space.

Main System Characteristics

Continuous Overhead Transportation

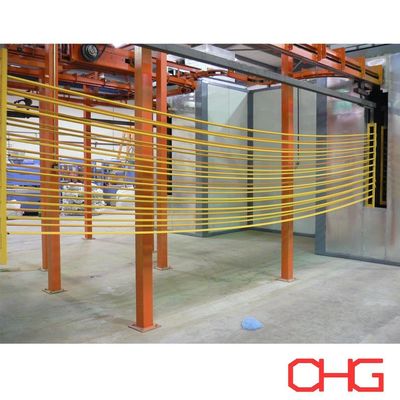

The overhead conveyor provides continuous movement of aluminum profiles between different process stages while reducing the amount of workshop floor space required for material handling.

Conveyor configuration is determined according to:

• Profile length and cross-section

• Workpiece weight

• Number of profiles per hanger

• Required production capacity

• Hanger spacing

• Process time

• Factory clear height

Customized hangers can be designed to maintain appropriate workpiece positioning throughout pretreatment, spraying, and curing.

Flexible Manual Loading and Unloading

Profiles are manually placed onto the conveyor hangers at the loading station and removed after coating and cooling.

This arrangement provides flexibility when handling products with different lengths and cross-sectional geometries without requiring complicated automatic loading equipment.

Automatic Powder Application

The spraying section can use automatic electrostatic spray guns and reciprocators for continuous powder application.

Where product geometry requires additional coverage, manual touch-up stations can also be incorporated into the line.

Typical Production Process

A complete aluminum profile coating process can be arranged as:

Loading → Surface Cleaning → Chemical Pretreatment → Moisture Drying → Electrostatic Powder Spraying → Curing → Cooling → Inspection → Unloading

The exact pretreatment sequence and coating parameters are determined according to the aluminum alloy, required finish, corrosion performance, and selected powder system.

1. Surface Cleaning

Before chemical treatment, contaminants must be removed from the aluminum surface.

Cleaning is designed to eliminate substances such as:

• Oil and grease

• Dust

• Extrusion residues

• Handling contamination

• Other surface impurities

Effective cleaning prepares the substrate for subsequent chemical treatment and contributes to stable coating performance.

2. Aluminum Pretreatment

After cleaning, the profiles undergo an appropriate chemical pretreatment process.

Depending on the coating specification, the process may include:

• Degreasing

• Water rinsing

• Etching or surface treatment

• Additional rinsing

• Conversion treatment

• Final rinsing

For aluminum profiles, suitable chromate or chrome-free conversion treatments can be selected according to the required coating performance and project specifications.

Pretreatment can be designed as either a spray or immersion system depending on the profile geometry, production capacity, chemical process, and factory conditions.

3. Moisture Drying

After the wet pretreatment stages, profiles enter the drying section.

Residual water is removed before electrostatic spraying to provide suitable surface conditions for powder application.

Drying temperature and residence time are determined according to the profile dimensions, section thickness, conveyor speed, and required production capacity.

4. Electrostatic Powder Spraying

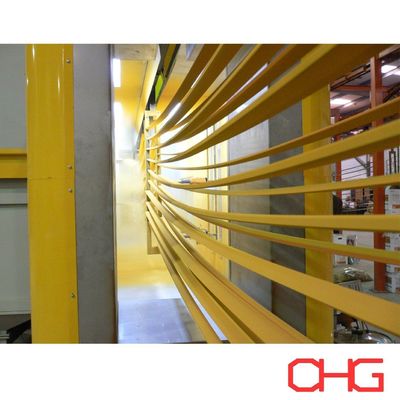

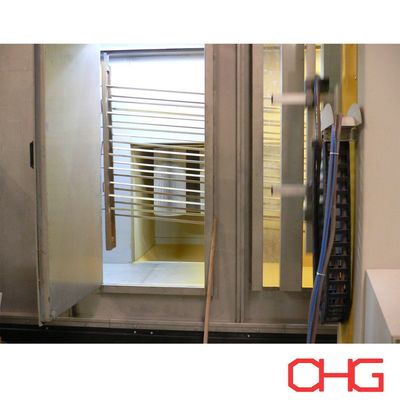

The dried profiles are transported into the powder spray booth.

Electrostatic spray guns charge the powder particles, which are attracted to the grounded aluminum workpieces.

The application system can be configured with:

• Automatic powder spray guns

• Reciprocators

• Manual touch-up guns

• Powder supply equipment

• Powder recovery system

Gun quantity, positioning, and spraying arrangement are selected according to the profile cross-section, conveyor speed, production capacity, and required coating coverage.

5. Powder Curing

After spraying, the coated aluminum profiles enter the curing oven.

Controlled heating causes the applied powder to melt, flow, and cross-link into a continuous coating film.

The curing system is designed according to:

• Powder manufacturer's curing specification

• Required metal temperature

• Aluminum profile thickness

• Workpiece dimensions

• Conveyor speed

• Production capacity

Correct curing conditions are important for achieving the required coating adhesion, appearance, and mechanical properties.

6. Cooling

After leaving the curing oven, the profiles pass through a cooling area.

Natural or forced-air cooling can be selected according to line capacity, workpiece temperature, and available factory space.

Once sufficiently cooled, the profiles can be safely inspected and unloaded.

7. Coating Quality Inspection

Finished aluminum profiles can be checked according to the applicable coating requirements.

Typical inspection items include:

• Dry film thickness

• Surface appearance

• Color and gloss

• Adhesion

• Coating uniformity

• Visible surface defects

Additional testing can be specified according to the customer's quality standards and product application.

Powder Recovery and Color Change

The spray booth can be integrated with an appropriate powder recovery system to collect oversprayed powder.

Recovery equipment is selected according to:

• Production volume

• Number of powder colors

• Color-change frequency

• Powder recovery requirements

• Required booth cleaning time

For manufacturers frequently changing colors, the spray booth and recovery configuration should be considered together during the initial production line design.

Applications

The line can be engineered for coating aluminum products such as:

• Architectural profiles

• Window and door frames

• Curtain wall profiles

• Industrial aluminum extrusions

• Furniture profiles

• Decorative aluminum components

• Solar panel frames

• Building system profiles

• Transportation components

• Other extruded aluminum products

Project-Specific Engineering

Every aluminum profile coating line is developed according to the customer's actual manufacturing conditions rather than using a fixed equipment configuration.

To prepare the production line design, the following information is important:

• Profile drawings and cross-sections

• Maximum and minimum profile lengths

• Workpiece dimensions and weight

• Required hourly or daily capacity

• Profiles per hanger

• Coating specification

• Pretreatment requirements

• Powder type

• Number of colors and color-change frequency

• Factory dimensions and clear height

• Available heating energy

• Local electrical supply

• Required automation level

Based on these parameters, we can engineer a complete solution covering the pretreatment system, moisture drying section, overhead conveyor, powder spray booth, automatic application equipment, powder recovery system, curing oven, cooling section, control system, and production line layout.

Contact us with your aluminum profile specifications and production requirements for a customized technical proposal and quotation.
