Powder Coating Line Designed for Aluminum Extrusions with Customized Finishing System and Overhead Conveyor for Production Flow

Customized Finishing System for Architectural and Industrial Aluminum Profiles

This automatic powder coating production line is engineered for aluminum profiles and extruded aluminum components with different lengths, cross-sections, and coating requirements.

The system integrates surface pretreatment, drying, electrostatic powder application, curing, cooling, and material handling into a coordinated production process. An overhead conveyor system transports profiles between the main treatment sections, while manual loading and unloading provide flexibility for handling different product sizes and production batches.

Each line is customized according to the customer's aluminum products, required output, coating specification, factory dimensions, and desired automation level.

Complete Aluminum Profile Coating Process

A typical production sequence can be configured as:

Manual Loading → Surface Pretreatment → Moisture Drying → Electrostatic Powder Spraying → Powder Curing → Cooling → Inspection → Manual Unloading

The detailed pretreatment and coating process is selected according to the aluminum alloy, surface condition, required corrosion performance, and applicable finishing specifications.

Aluminum Surface Pretreatment

Correct surface preparation is essential before powder application.

Aluminum profiles may contain oil, dust, extrusion residues, oxides, and other contaminants that can interfere with coating adhesion and appearance.

Depending on the project requirements, the pretreatment process can include stages such as:

• Degreasing

• Water rinsing

• Etching or surface treatment

• Additional rinsing

• Surface conditioning where required

• Conversion treatment

• Final rinsing

For aluminum products, suitable chromate or chrome-free conversion processes can be selected according to the required coating system and environmental requirements.

Pretreatment can be designed as a spray or immersion system depending on profile geometry, production capacity, chemical process, and factory conditions.

Moisture Drying

After wet pretreatment, the aluminum profiles pass through a drying section to remove residual water before powder spraying.

A properly dried surface provides more stable conditions for electrostatic powder application and helps prevent moisture-related coating defects.

Drying conditions are determined according to profile dimensions, line speed, pretreatment process, and production requirements.

Automatic Electrostatic Powder Spraying

After drying, the profiles enter the powder spray booth.

Automatic electrostatic spray guns apply charged powder particles to the grounded aluminum surfaces. The spraying arrangement is designed according to profile dimensions, cross-sectional geometry, conveyor speed, and required coating coverage.

Depending on the application, the powder coating section can incorporate:

• Automatic electrostatic spray guns

• Reciprocators

• Manual touch-up stations

• Powder supply equipment

• Powder recovery system

• Color-change equipment

Manual touch-up can be combined with automatic spraying when products contain recessed areas or complex cross-sectional features requiring additional coverage.

Powder Recovery System

Oversprayed powder can be collected through an appropriate recovery system.

The recovery configuration is selected according to factors such as:

• Production capacity

• Number of colors

• Color-change frequency

• Powder utilization requirements

• Spray booth configuration

• Required cleaning time

Different recovery solutions can be incorporated according to the customer's production strategy and powder coating requirements.

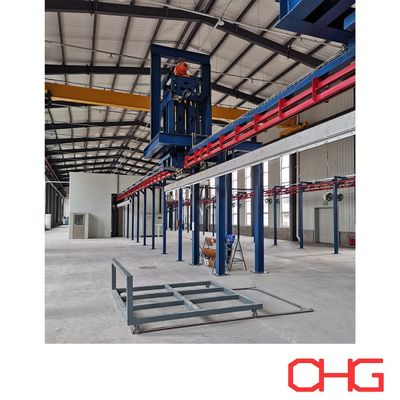

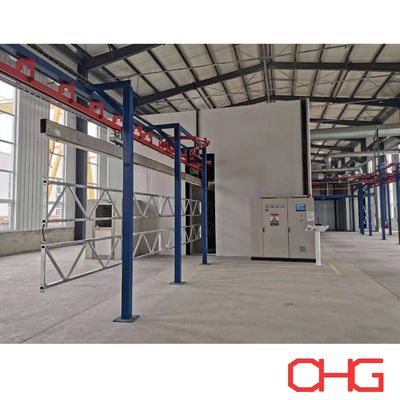

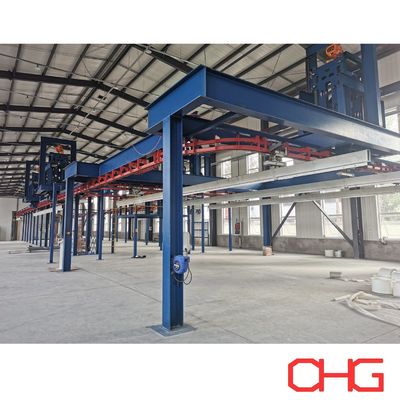

Overhead Conveyor System

The overhead conveyor connects the different production stages and maintains controlled movement of aluminum profiles throughout the coating line.

The conveyor system is designed according to:

• Maximum profile length

• Workpiece weight

• Profiles per hanger

• Required production capacity

• Hanger spacing

• Line speed

• Factory clear height

• Equipment arrangement

Depending on the required production flow, a continuous overhead conveyor or Power and Free conveyor can be considered.

Customized hangers can also be developed according to the aluminum profile geometry and required coating orientation.

Powder Curing

Following powder application, coated profiles are transported into the curing oven.

Under controlled heating conditions, the applied powder melts, flows, and chemically cross-links to form a continuous coating film.

Curing performance depends not only on oven air temperature but also on the actual metal temperature of the aluminum profiles. The required curing conditions should therefore be designed according to:

• Powder manufacturer's curing specification

• Profile dimensions

• Aluminum section thickness

• Conveyor speed

• Production capacity

• Required coating performance

Suitable heating methods can be selected according to the customer's available energy source and factory conditions.

Cooling and Final Inspection

After curing, the profiles pass through a cooling section before unloading.

Once sufficiently cooled, finished products can be inspected according to the required quality specification.

Typical inspection items may include:

• Coating thickness

• Surface appearance

• Color

• Gloss

• Adhesion

• Coating uniformity

• Visible surface defects

Additional performance tests can be specified according to the customer's coating standards and end-use requirements.

Flexible Loading and Unloading

Manual loading and unloading provide practical flexibility when the line handles profiles with different lengths, cross-sections, and batch quantities.

The loading arrangement, hanger spacing, and product orientation are considered together during production capacity calculations to ensure that the conveyor configuration matches the required output.

Where necessary, other material handling arrangements can also be developed for higher automation requirements.

Typical Applications

Automatic aluminum profile powder coating lines can be designed for products such as:

• Architectural aluminum extrusions

• Window and door profiles

• Curtain wall components

• Industrial aluminum profiles

• Furniture profiles

• Decorative aluminum products

• Solar panel frames

• Transportation components

• General extruded aluminum products

Different applications may require different pretreatment processes, powder specifications, conveyor arrangements, and curing conditions.

Customized Aluminum Profile Powder Coating Lines

There is no single standard production line suitable for every aluminum profile manufacturer. Equipment dimensions and configuration should be determined according to the actual products and required production conditions.

Important information for engineering includes:

• Aluminum profile drawings or cross-sections

• Maximum and minimum profile lengths

• Maximum workpiece dimensions

• Workpiece weight

• Required hourly or daily capacity

• Profiles per hanger

• Required coating specification

• Pretreatment process requirements

• Number of powder colors

• Color-change frequency

• Available factory dimensions and clear height

• Available heating energy

• Local electrical conditions

• Required automation level

Based on these parameters, we can develop a customized solution covering the pretreatment system, moisture drying section, overhead conveyor, powder spray booth, automatic powder application equipment, powder recovery system, curing oven, cooling section, control system, and complete production line layout.

Contact us with your aluminum profile specifications and production requirements for a customized technical proposal and quotation.
