Customized Powder Coating Production Line Our Professional Power and Free Overhead Conveyor System

Flexible Automated Coating System for Industrial Metal Products

This powder coating production line with Power and Free conveyor is designed for manufacturers requiring flexible material handling, controlled production flow, and reliable powder coating performance.

The Power and Free overhead conveyor allows individual carriers to be stopped, accumulated, released, or transferred according to the requirements of different process stages. Compared with a conventional continuous conveyor, this configuration provides greater flexibility when products require different processing times or when multiple workpiece types are handled on the same production line.

The complete coating system can be customized according to the customer's workpiece dimensions, weight, production capacity, coating requirements, factory layout, and required automation level.

Main Production Line Configuration

Depending on the project requirements, a complete Power and Free powder coating line can integrate:

• Surface pretreatment system

• Moisture drying section

• Power and Free overhead conveyor

• Automatic powder spray booth

• Automatic electrostatic spray guns

• Manual touch-up stations

• Powder supply and recovery equipment

• Powder curing oven

• Cooling section

• Loading and unloading stations

• PLC and HMI control system

Equipment configuration is selected according to the actual coating process rather than using a fixed standard arrangement.

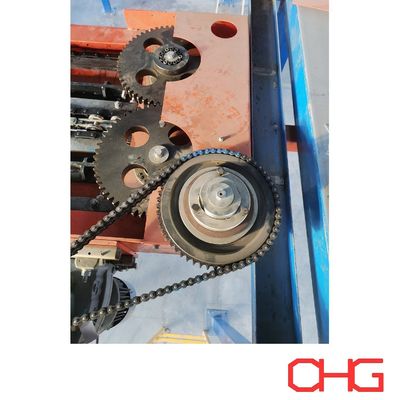

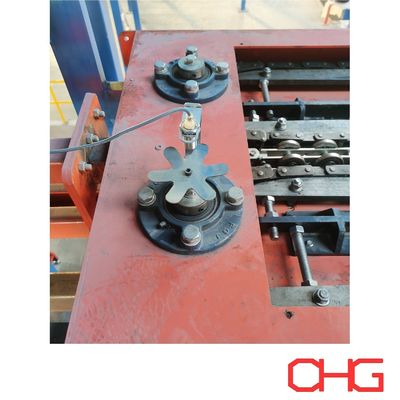

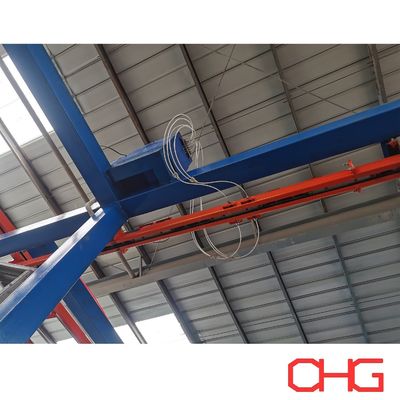

Power and Free Overhead Conveyor

The Power and Free conveyor uses separate power and free tracks.

The power track contains the driven chain, while carriers travel along the free track. Through appropriate engagement and release mechanisms, individual carriers can operate independently within the overall conveyor system.

This allows workpieces to:

• Move between different production stages

• Stop at designated process positions

• Accumulate in buffer areas

• Be released according to production requirements

• Transfer between conveyor sections

• Follow different routes where the process requires

This flexibility is particularly useful in automated coating lines where pretreatment, spraying, curing, cooling, and loading operations may require different process times.

Flexible Carrier and Hanger Design

Carriers and hangers are engineered according to the products being coated rather than using one universal design.

Important factors include:

• Maximum workpiece dimensions

• Workpiece weight

• Number of products per carrier

• Hanging orientation

• Center of gravity

• Required carrier spacing

• Spray gun accessibility

• Oven opening dimensions

• Loading and unloading method

The system can accommodate different carrier configurations ranging from smaller industrial components to large and heavy fabricated metal products.

Automatic Powder Coating Process

A typical production sequence can be configured as:

Loading → Pretreatment → Moisture Drying → Powder Spraying → Powder Curing → Cooling → Inspection → Unloading

1. Loading

Metal components are mounted onto suitable hangers or carriers at the loading station.

Loading can be manual, forklift-assisted, or integrated with other material handling equipment depending on workpiece size and weight.

2. Surface Pretreatment

Before powder application, workpieces undergo the required cleaning and chemical pretreatment process.

Depending on the substrate and coating requirements, the process may include:

• Degreasing

• Water rinsing

• Surface conditioning

• Phosphating or other conversion treatment

• Final rinsing

Both spray and immersion pretreatment configurations can be considered according to product geometry and production requirements.

3. Moisture Drying

Following wet pretreatment, workpieces pass through a drying section to remove residual moisture before powder application.

Dry and properly prepared surfaces help provide stable electrostatic spraying conditions and reduce coating defects.

4. Electrostatic Powder Spraying

The workpieces enter the powder spray booth, where electrostatic spray guns apply powder to the grounded metal surfaces.

Depending on the required automation level, the spraying section can incorporate:

• Automatic spray guns

• Reciprocators

• Manual touch-up guns

• Powder supply equipment

• Powder recovery equipment

Automatic spraying provides repeatable application on the main surfaces, while manual touch-up can be used for complex geometries, recessed areas, corners, and other difficult-to-coat locations.

5. Powder Curing

After powder application, carriers transport the coated workpieces into the curing oven.

Under controlled heating conditions, the powder melts, flows, and chemically cross-links to form a continuous coating film.

Curing conditions are determined according to the powder specification, workpiece material, metal thickness, and required coating performance.

6. Cooling

After curing, workpieces move into the cooling area before inspection and unloading.

Natural or forced-air cooling can be selected according to production capacity and available factory space.

7. Inspection and Unloading

Finished products are inspected according to the required coating specification before being removed from the conveyor.

Typical inspection items may include coating thickness, appearance, color, gloss, adhesion, and visible surface defects.

Carrier Accumulation and Production Buffering

One of the major advantages of a Power and Free system is the ability to create accumulation zones within the production line.

Carriers can wait at designated positions without stopping the complete conveyor system.

Buffer areas can be incorporated:

• Before spray booths

• Before curing ovens

• At loading stations

• At unloading stations

• Between processes with different cycle times

• At inspection or production waiting areas

This helps coordinate different production stages and provides greater flexibility when temporary interruptions occur in one section of the line.

Flexible Conveyor Routing

For production lines handling different product types or process requirements, the conveyor can be designed with transfer and routing functions.

Depending on the layout, this can allow certain carriers to:

• Enter different coating sections

• Bypass selected process areas

• Move into accumulation zones

• Transfer to alternative production routes

• Reach different loading or unloading stations

The actual routing arrangement is determined according to the customer's production process and workshop layout.

PLC-Based Conveyor and Process Control

The Power and Free conveyor can be integrated with the control system of the complete powder coating line.

Depending on the project, the PLC and HMI system can coordinate:

• Conveyor operation

• Carrier movement

• Stop and release positions

• Accumulation zones

• Conveyor speed

• Workpiece detection

• Process routing

• Equipment interlocking

• Spray equipment operation

• Oven operation

• Fault alarms and status monitoring

This integration allows material handling and coating equipment to operate as a coordinated production system.

Safety and Equipment Protection

Appropriate safety measures can be incorporated according to the conveyor layout, workpiece characteristics, and operating environment.

These may include:

• Emergency stop devices

• Carrier position detection

• Conveyor overload protection

• Equipment interlocks

• Mechanical guarding

• Fault alarms

• Anti-collision control where required

• Operator protection at loading and unloading areas

Safety configuration is determined during detailed engineering according to the actual production line.

Main Advantages

Flexible Workpiece Transportation

Individual carrier control makes it possible to coordinate workpieces with different process times and production sequences.

Efficient Production Flow

Accumulation and controlled carrier release help balance material movement between different sections of the coating line.

Reduced Manual Handling

Once loaded onto the carriers, workpieces can be automatically transported through multiple coating processes.

Efficient Use of Workshop Space

The overhead conveyor arrangement leaves more floor space available for process equipment, operators, maintenance, and material handling.

Suitable for Different Products

Customized carriers, hangers, spacing, and routing make the system suitable for a wide range of metal components.

Expandable Automation

The conveyor can be integrated with automatic spraying equipment, process control systems, and other production equipment according to the required automation level.

Typical Applications

Power and Free powder coating lines can be engineered for products such as:

• Automotive components

• Electrical cabinets and enclosures

• HVAC products

• Metal furniture

• Storage racks and shelving

• Machinery components

• Agricultural equipment

• Metal doors and frames

• Fabricated steel products

• General industrial metal components

Customized Power and Free Powder Coating Lines

Each production line is engineered around the customer's actual manufacturing requirements.

Key information required for system design includes:

• Workpiece material

• Maximum dimensions

• Maximum weight

• Products per carrier

• Required production capacity

• Coating specification

• Pretreatment requirements

• Number of colors and color-change frequency

• Factory dimensions and clear height

• Available heating energy

• Loading and unloading requirements

• Required accumulation positions

• Automation level

Based on these parameters, we can develop a customized solution covering the Power and Free conveyor, carrier and hanger system, pretreatment equipment, powder spray booth, powder application and recovery equipment, curing system, cooling section, control system, and complete production line layout.

Contact us with your workpiece information and production requirements for a customized Power and Free powder coating line proposal and quotation.
