Automatic Powder Coating Line Offering Stable Production Efficiency and Adaptable Coating Solutions for Metal Components

Automatic Powder Coating Line for Various Metal Components

Flexible Powder Coating System with Power and Free Conveyor

This automatic powder coating production line is designed for industrial metal components with different dimensions, weights, shapes, and structural characteristics. By combining automatic electrostatic powder spraying, manual touch-up, and a Power and Free overhead conveyor, the system provides an efficient and adaptable coating solution for a wide range of metal products.

The powder spray booth is manufactured from durable PP (polypropylene) material, offering excellent chemical and corrosion resistance for reliable long-term operation.

Manual loading and unloading provide additional flexibility when handling different workpiece geometries, while the automated conveying and spraying sections help maintain stable production efficiency and consistent coating quality.

Automatic Spraying with Manual Touch-Up

The powder application system combines automatic spray guns with supplementary manual coating.

Automatic guns perform the main spraying operation, providing repeatable powder application across standard surfaces. Manual touch-up stations allow operators to apply additional powder to areas that may be difficult for automatic guns to reach.

This configuration is particularly useful for products with:

• Complex geometries

• Recessed sections

• Corners and edges

• Welded structures

• Irregular surfaces

• Different product configurations on the same line

The combination of automatic and manual spraying provides a practical balance between production efficiency and coating flexibility.

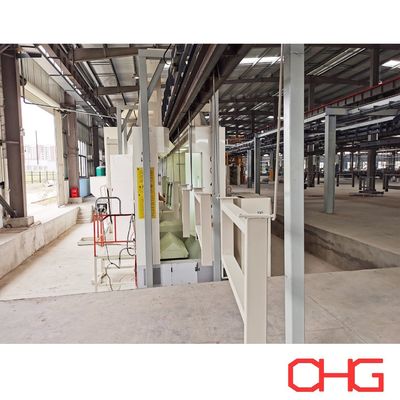

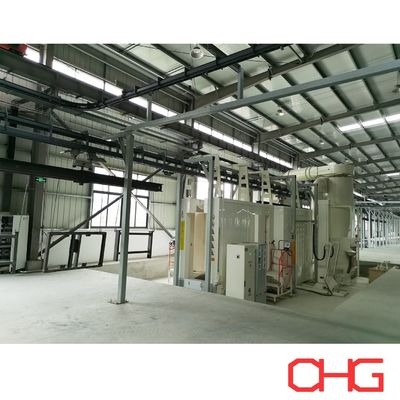

PP Powder Spray Booth

The spray booth is constructed from polypropylene (PP) material suitable for industrial powder coating applications.

Key characteristics include:

• Good chemical resistance

• Corrosion-resistant construction

• Durable performance

• Convenient cleaning and maintenance

• Adaptability to different workpiece dimensions

The booth dimensions, automatic gun arrangement, manual spraying positions, extraction system, and powder recovery configuration can be engineered according to specific production requirements.

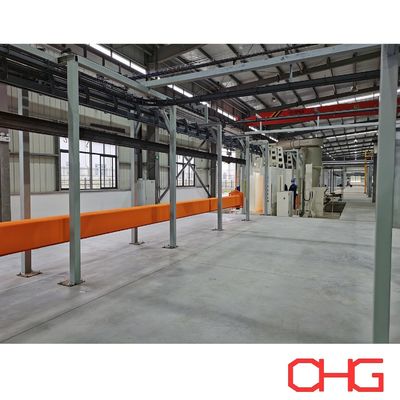

Power and Free Overhead Conveyor System

A Power and Free conveyor transports workpieces between the different sections of the production line.

Compared with a conventional continuously moving conveyor, the Power and Free system provides greater flexibility in controlling individual carriers. Depending on the line configuration, workpieces can be transported, stopped, accumulated, or released according to process requirements.

Key benefits include:

• Flexible carrier movement

• Stable transportation of different workpieces

• Accumulation capability

• Efficient use of workshop space

• Adaptability to different process times

• Flexible production scheduling

Conveyor capacity, carrier spacing, speed, hanger design, and routing are determined according to the workpiece and required production output.

Manual Loading and Unloading

Dedicated manual loading and unloading areas allow operators to position and remove workpieces according to their individual geometry.

This arrangement is suitable for production involving multiple product types because it provides flexibility without requiring a dedicated automatic handling system for every workpiece configuration.

Loading arrangements and hangers can be customized according to:

• Product dimensions

• Workpiece weight

• Hanging points

• Product orientation

• Required coating coverage

• Production capacity

Typical Powder Coating Process

A complete powder coating production line normally incorporates surface treatment, drying, powder application, curing, and cooling before the finished products are unloaded.

1. Surface Preparation

Metal workpieces are first cleaned to remove contaminants that could interfere with subsequent treatment and coating.

Depending on the substrate and initial surface condition, preparation may remove:

• Oil and grease

• Dust and dirt

• Processing residues

• Other surface contaminants

Effective surface cleaning provides the foundation for stable pretreatment and coating performance.

2. Chemical Pretreatment

After initial cleaning, the workpieces undergo a suitable chemical pretreatment process.

The exact process depends on the substrate material and required corrosion protection. Different projects may use processes such as:

• Degreasing

• Rinsing

• Phosphating

• Conversion treatment

• Passivation

• Final rinsing

Pretreatment helps improve coating adhesion and contributes to the corrosion resistance of the complete coating system.

3. Moisture Drying

After pretreatment, residual moisture must be removed before powder application.

The workpieces pass through a drying section under controlled conditions to provide a clean and dry surface for electrostatic spraying.

4. Electrostatic Powder Application

Prepared workpieces enter the powder spray booth, where electrostatically charged powder is applied to grounded metal surfaces.

Automatic spray guns provide the primary coating application, while manual touch-up can be used for complex or difficult-to-reach areas.

The spraying system is designed to achieve:

• Consistent powder distribution

• Stable coating thickness

• Efficient powder application

• Complete coverage of required surfaces

• Repeatable finishing quality

5. Powder Curing

After spraying, the coated workpieces are transported into the curing oven.

Under controlled curing conditions, the powder melts, flows, and chemically cross-links to form a continuous coating film.

Curing temperature and residence time are determined according to the powder specification, workpiece material, thickness, and required coating performance.

6. Cooling

After leaving the curing oven, coated products enter the cooling stage.

Sufficient cooling stabilizes the finished coating and allows the workpieces to be safely handled during inspection and unloading.

7. Final Quality Inspection

Finished products can be inspected according to the required coating specification.

Typical inspection items include:

• Coating thickness

• Surface appearance

• Color and gloss

• Adhesion

• Coating uniformity

• Visible surface defects

Inspection requirements can be defined according to the customer's product and quality standards.

Main Advantages

This automatic powder coating line provides:

• Flexible processing of different metal components

• Automatic spraying for efficient production

• Manual touch-up for complicated geometries

• Durable PP spray booth construction

• Flexible Power and Free material handling

• Adaptability to multiple product types

• Consistent and repeatable coating quality

• Customized equipment configuration

Customized Powder Coating Production Lines

Our powder coating lines are not based on a single standard configuration. Each system is engineered according to the customer's actual products, production requirements, and factory conditions.

Important information for line design includes:

• Workpiece material

• Maximum dimensions and weight

• Product drawings or photographs

• Required hourly or daily capacity

• Pretreatment requirements

• Powder coating specifications

• Number of colors and color-change frequency

• Available factory dimensions

• Preferred heating energy

• Required automation level

Based on these parameters, we can develop a suitable process flow, equipment layout, Power and Free conveyor configuration, spray system, curing solution, and control system.

Contact us with your product information and production requirements for a customized technical proposal and quotation.
