Industrial Dipping Pretreatment Line Offering Surface Preparation Through Complete Immersion in Cleaning and Chemical Tanks

PLC-Controlled Dipping Pretreatment System for Coating Production Lines

Industrial Immersion Pretreatment Equipment for Reliable Surface Preparation

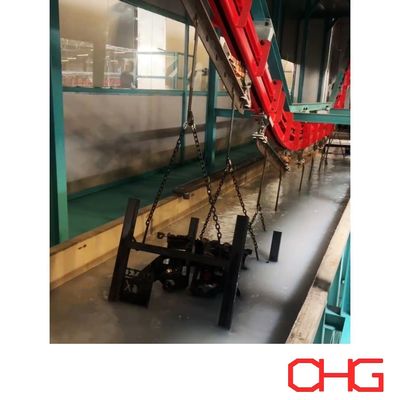

This dipping pretreatment system is designed for surface preparation before powder coating and other industrial finishing processes. By completely immersing workpieces in a series of cleaning, rinsing, and chemical treatment tanks, the system provides thorough treatment across the entire product surface, including recessed areas, internal sections, and complex geometries.

The pretreatment process can be controlled and monitored by PLC, helping maintain stable operating parameters and consistent processing sequences. Tank quantity, chemical treatment stages, handling methods, and automation levels can all be customized according to the workpiece material, production capacity, and required coating performance.

Complete Immersion Surface Treatment

Unlike spray pretreatment, immersion processing allows the entire workpiece to contact the treatment solution simultaneously.

This makes dipping pretreatment particularly suitable for products with:

• Complex structures

• Recessed surfaces

• Internal cavities

• Difficult-to-reach areas

• Irregular geometries

Complete immersion helps achieve more consistent cleaning and chemical treatment before coating.

Effective Cleaning and Degreasing

Surface contamination can significantly affect coating adhesion and long-term corrosion resistance.

During the pretreatment process, workpieces can pass through dedicated immersion stages to remove:

• Oil and grease

• Dust and dirt

• Manufacturing residues

• Other surface contaminants

The specific cleaning sequence is selected according to the substrate material, contamination level, and subsequent coating requirements.

Flexible Chemical Treatment Process

The dipping system can incorporate different chemical treatment stages depending on the workpiece material and required coating performance.

Possible process stages include:

• Degreasing

• Water rinsing

• Surface conditioning

• Phosphating

• Conversion coating

• Passivation

• Final rinsing

For aluminum and other substrates, suitable conversion-treatment processes can also be configured according to project specifications.

The number of tanks, treatment time, solution temperature, and chemical process are determined according to the actual application rather than using a fixed standard configuration.

PLC Process Control

The pretreatment equipment can be integrated with a PLC-based control system to improve process consistency and simplify operation.

Depending on the required automation level, the control system can manage or monitor:

• Treatment sequence

• Immersion time

• Tank temperature

• Workpiece transfer

• Pumps and circulation equipment

• Process alarms

• Equipment operating status

An HMI interface can also be incorporated for convenient parameter setting, production monitoring, and system operation.

Efficient Workpiece Handling

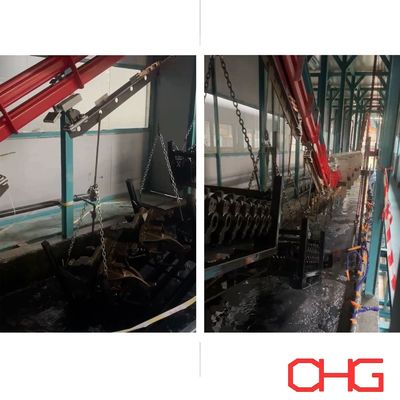

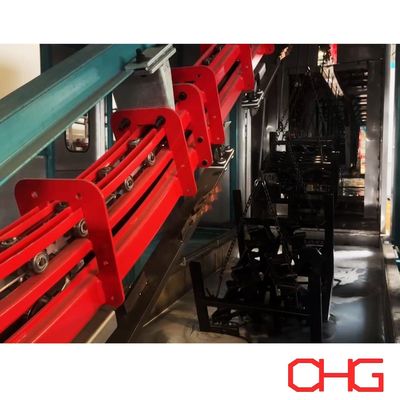

For industrial production, the dipping pretreatment system can be combined with an appropriate material handling solution to transfer workpieces between process tanks.

Depending on product dimensions, weight, production capacity, and factory conditions, the system can be engineered for batch or sequential processing.

Multiple workpieces can be treated during each production cycle, making immersion pretreatment suitable for applications requiring both comprehensive surface treatment and efficient production.

Main Advantages

• Uniform Surface Preparation: Complete immersion allows the treatment solution to reach the entire exposed workpiece surface, helping achieve consistent cleaning and chemical conversion.
• Improved Coating Adhesion: Proper removal of contaminants and appropriate chemical pretreatment create a suitable substrate for subsequent powder coating or painting processes.
• Enhanced Corrosion Protection: A correctly designed pretreatment process can significantly improve the corrosion resistance and service life of the finished coating system.
• Suitable for Complex Workpieces: Immersion treatment is particularly advantageous when product structures make it difficult for spray systems to reach all required surfaces.
• Flexible Process Configuration: Tank quantity, chemical stages, treatment parameters, transfer system, and automation level can be customized for different substrates and coating specifications.
• Stable Production Control: PLC-based operation helps maintain repeatable process sequences and provides centralized control of the pretreatment equipment.

Typical Pretreatment Process

A dipping pretreatment line may include the following stages:

1. Loading

2. Degreasing

3. Water rinsing

4. Additional cleaning or surface conditioning

5. Chemical conversion treatment

6. Water rinsing

7. Final rinsing

8. Drying

9. Transfer to the coating process

The actual process flow varies according to the workpiece material, contamination condition, corrosion-resistance requirement, and coating specification.

Typical Applications

Dipping pretreatment equipment can be used for surface preparation of industrial metal components in sectors such as:

• Automotive components

• Machinery and equipment

• Metal furniture

• Electrical enclosures

• Fabricated metal products

• Industrial components

• Aerospace components

• Other products with complex surface geometries

The system can be integrated with powder coating, liquid painting, and other surface finishing production lines.

Customized Dipping Pretreatment Solutions

Each pretreatment system is engineered according to the customer's actual production conditions.

Important design information includes:

• Workpiece material

• Maximum dimensions and weight

• Product geometry

• Required production capacity

• Surface contamination condition

• Required pretreatment process

• Coating specification

• Available factory space

• Required automation level

Based on these parameters, we can develop the appropriate tank configuration, material handling system, process control solution, and equipment layout.

Contact us with your workpiece and production information for a customized dipping pretreatment system proposal.
