Top Powder Coating Line for Aluminium Profiles of Various Sizes Customized Technical Data

Automatic Powder Coating Line for Aluminum Profiles

High-Efficiency Coating System for Aluminum Extrusions

This automatic powder coating production line is developed for the surface finishing of aluminum profiles with different lengths, cross-sections, and structural designs. The system combines automated powder application with manual touch-up capability, providing a practical solution for manufacturers processing both standard and customized aluminum products.

Workpieces are transported through the production line by an overhead conveyor system, with manual loading and unloading at designated stations. This arrangement provides reliable material handling while maintaining the flexibility required for different profile specifications and production batches.

Automatic Spraying with Manual Touch-Up

The powder application section combines automatic electrostatic spray guns with supplementary manual spraying.

Automatic guns provide efficient and repeatable powder deposition on the main surfaces, while operators can manually coat areas that are more difficult to reach, such as:

• Deep grooves

• Corners and edges

• Complex cross-sections

• Recessed surfaces

• Irregular profile structures

This combination helps maintain coating consistency without sacrificing flexibility when product designs change.

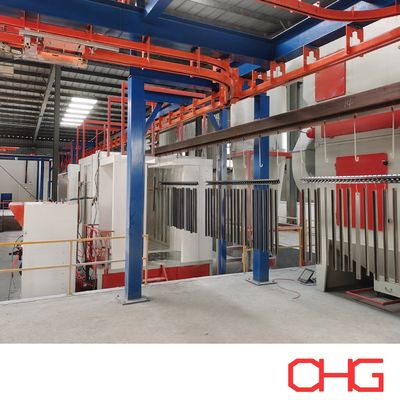

Overhead Material Handling System

The overhead conveyor continuously transports profiles between the different processing sections, reducing unnecessary handling and improving overall production flow.

The system offers several advantages:

• Efficient use of workshop floor space

• Stable workpiece transportation

• Continuous connection between processing stages

• Adaptability to different profile lengths

• Flexible conveyor routing according to factory layout

Conveyor speed, hanger spacing, loading capacity, and routing can be engineered according to the required production output and workpiece specifications.

Complete Powder Coating Process

1. Cleaning and Surface Preparation

Before chemical treatment, aluminum profiles are cleaned to remove oils, dust, processing residues, and other contaminants.

A properly cleaned substrate is essential for achieving reliable pretreatment results and strong coating adhesion.

2. Chemical Pretreatment

The cleaned profiles undergo a suitable chemical conversion process to improve corrosion protection and prepare the surface for powder coating.

Depending on the product specification and required performance, the pretreatment system may incorporate:

• Degreasing

• Rinsing

• Surface conditioning

• Chromate conversion

• Chrome-free conversion treatment

• Other aluminum pretreatment processes

The exact process is selected according to the aluminum alloy, coating specification, and required corrosion performance.

3. Moisture Drying

After pretreatment and rinsing, the workpieces enter a drying oven where residual water is removed.

Proper drying prevents moisture-related coating defects and provides a stable surface for electrostatic powder application.

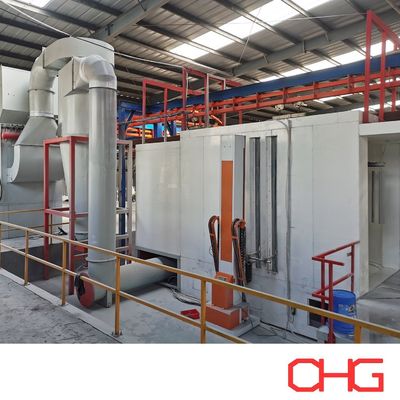

4. Electrostatic Powder Spraying

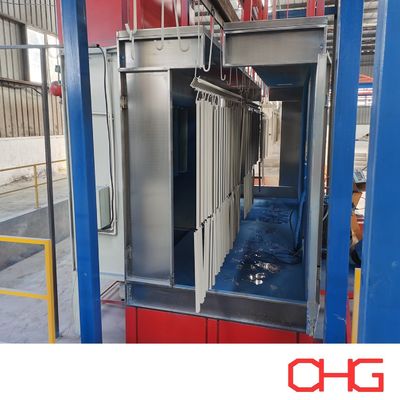

The dried profiles enter the powder spray booth for coating.

Electrostatically charged powder particles are attracted to the grounded workpieces, producing an even coating layer. Automatic spray guns provide the primary application, while manual touch-up can be used where additional coverage is required.

The spraying system can be configured according to production requirements, including gun quantity, reciprocator arrangement, booth configuration, and powder recovery method.

5. Thermal Curing

After powder application, the profiles are conveyed into the curing oven.

Under controlled temperature and residence time, the powder melts, flows, and cross-links to form a continuous protective film with the required mechanical and decorative properties.

6. Cooling

Finished profiles are cooled after leaving the curing oven to stabilize the coating and allow safe downstream handling.

7. Final Inspection

Before unloading or packaging, coating quality can be evaluated according to the required specifications, including:

• Film thickness

• Color and appearance

• Surface defects

• Adhesion

• Coating uniformity

• Overall finish quality

Main System Benefits

• Suitable for a wide variety of aluminum profile designs

• Automatic spraying improves productivity and repeatability

• Manual touch-up provides flexibility for complicated surfaces

• Overhead conveying optimizes workshop utilization

• Process configuration can be adapted to different coating standards

• Modular equipment design allows customization according to production requirements

Engineered Around Your Production Requirements

Rather than using a fixed standard configuration, each aluminum profile powder coating line can be engineered according to the actual application.

Key design factors include:

• Maximum profile dimensions and weight

• Required production capacity

• Number and frequency of color changes

• Pretreatment specifications

• Powder coating performance requirements

• Available factory dimensions

• Preferred heating energy

• Required automation level

Based on these parameters, we can develop the appropriate process configuration, equipment layout, conveyor arrangement, and automation solution for your production facility.

Contact us with your product and production information for a customized aluminum profile powder coating line proposal.
