Revolutionize Your Aluminium Profile Production with Our Advanced Powder Coating Line and Spray Booth Machinery

Powder Coating Production Line for Aluminum Profiles

Flexible Automatic & Manual Powder Coating Solution for Aluminum Extrusions

This powder coating production line is specially designed for aluminum profiles with different dimensions, cross-sectional shapes, and surface requirements. By integrating automatic electrostatic powder spraying with supplementary manual coating, the system provides an efficient and flexible finishing solution for both standard aluminum extrusions and customized profile products.

The hybrid spraying configuration combines automated production efficiency with manual finishing capability, ensuring excellent coating coverage, stable quality, and reliable performance even for profiles with complex geometries.

Integrated Automatic & Manual Spraying System

The coating system combines automatic spray guns with manual touch-up stations to achieve optimal finishing results.

Key advantages include:

• Uniform coating thickness

• Improved coverage on edges and corners

• Better finishing performance on complex profiles

• Stable and repeatable coating quality

• Flexible adaptation to different product designs

This configuration is suitable for manufacturers requiring both high production efficiency and the ability to process customized aluminum components.

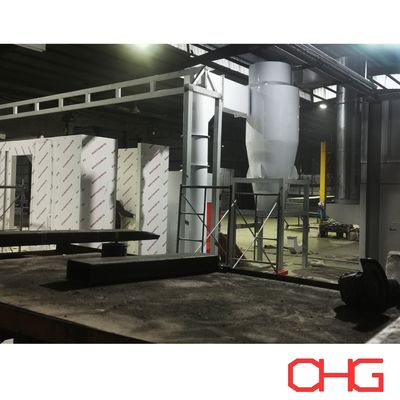

PP Powder Spray Booth Design

The spray booth is constructed from high-quality PP (polypropylene) material, providing excellent performance in coating environments.

Main features include:

• Strong chemical and corrosion resistance

• Long service life

• Easy cleaning and maintenance

• Stable spraying conditions

The booth design incorporates:

• Efficient ventilation and air extraction system

• Optimized airflow control

• Powder containment and recovery design

• Operator safety considerations

The spray booth structure can be customized according to product dimensions, spray requirements, and factory layout conditions.

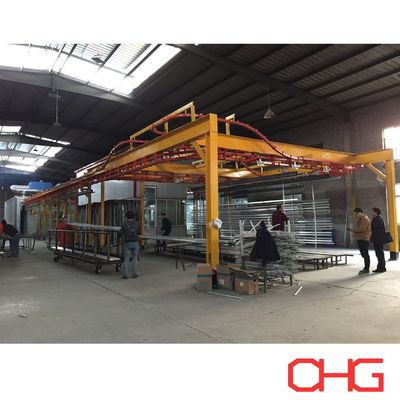

Overhead Conveyor System

The production line adopts an overhead conveyor system to transport aluminum profiles smoothly through each process stage.

The conveyor system provides:

• Continuous and stable workpiece movement

• Efficient utilization of factory space

• Reduced manual handling

• Flexible production arrangement

• Reliable connection between process sections

The conveyor route is designed to integrate all major coating stages, including:

• Surface cleaning

• Pretreatment

• Drying

• Powder spraying

• Curing

• Cooling

• Inspection

This ensures a smooth and efficient production workflow.

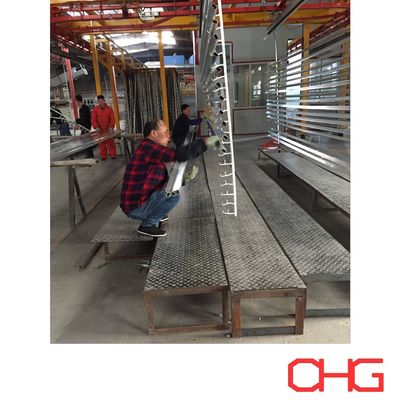

Manual Loading and Unloading Stations

Manual loading and unloading stations are integrated into the production line to provide greater operational flexibility.

Benefits include:

• Easy handling of different profile lengths and shapes

• Accurate positioning before coating

• Suitable for customized and small-batch production

• Reduced risk of damage during handling

• Improved operator efficiency

The loading and unloading arrangement can be optimized according to the customer's production process and workshop layout.

Powder Coating Process Flow

1. Surface Preparation

The aluminum profiles first undergo surface cleaning to remove:

• Oil and grease

• Dust and contaminants

• Processing residues

Proper surface preparation ensures strong coating adhesion and improves final coating performance.

2. Pre-Treatment

After cleaning, the profiles undergo chemical pretreatment to enhance:

• Corrosion resistance

• Powder adhesion

• Surface stability

Common pretreatment methods include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion treatment

The pretreatment process can be customized according to aluminum alloy type and coating requirements.

3. Drying

After pretreatment, aluminum profiles pass through a drying oven to remove residual moisture.

A complete drying process helps achieve:

• Stable powder application

• Improved coating adhesion

• Reduced surface defects

4. Electrostatic Powder Application

The dried profiles enter the spray booth, where electrostatic spray guns apply charged powder particles onto the grounded aluminum surfaces.

The process provides:

• Uniform powder distribution

• High transfer efficiency

• Reduced powder consumption

• Consistent coating quality

Automatic spraying ensures stable production, while manual touch-up provides additional coverage for complex areas and special geometries.

5. Powder Curing

After spraying, the coated profiles enter the curing oven.

During curing:

• Powder particles melt and flow into a continuous coating film

• Chemical cross-linking creates a strong protective layer

The cured coating provides:

• Excellent durability

• Good impact resistance

• Strong corrosion protection

• Stable surface appearance

6. Cooling

After curing, the aluminum profiles enter the cooling section.

Cooling helps:

• Stabilize the coating film

• Maintain surface appearance

• Prepare products for inspection and handling

7. Quality Inspection

Finished aluminum profiles undergo comprehensive quality inspection, including:

• Coating thickness measurement

• Surface appearance inspection

• Adhesion testing

• Overall coating performance evaluation

Only qualified products proceed to packaging or further processing.

System Advantages

By combining automation technology with manual finishing flexibility, this aluminum profile powder coating line delivers:

• Consistent high-quality coating results

• Flexible production for various profile designs

• Efficient workshop space utilization

• Reliable long-term operation

• Improved production efficiency

Complete engineering documentation and layout drawings can be provided to support installation, integration, and operation.

We provide customized powder coating solutions according to your aluminum profile specifications, production capacity, and factory requirements. Contact us for a tailored technical proposal.
