Automatic Powder Coating Line Providing Consistent Coating and Smooth Transportation for Various Industrial Metal Parts

Automatic Powder Coating Production Line for Metal Components

Flexible Powder Coating Solution for Various Industrial Parts

This automatic powder coating production line is designed for processing metal components with different sizes, shapes, and structural characteristics. The system combines efficient material handling with advanced electrostatic powder coating technology to achieve consistent coating quality and reliable production performance.

The spray booth is manufactured from PVC material, providing excellent chemical resistance, durability, and easy maintenance. The production line adopts a power & free overhead conveyor system, enabling smooth and flexible transportation of workpieces throughout each processing stage.

Manual loading and unloading allow operators to handle different product configurations with greater flexibility, making the system suitable for a wide range of industrial coating applications.

Production Line Features

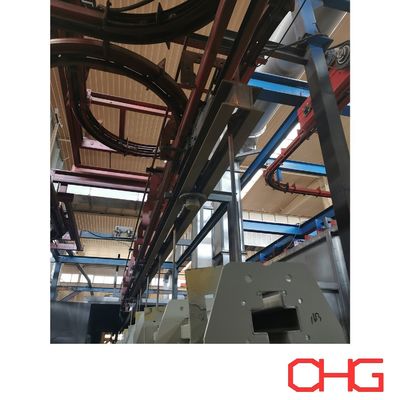

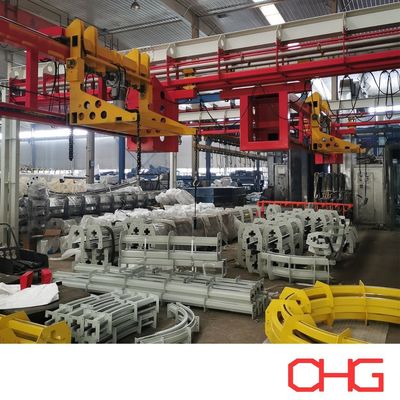

Power & Free Overhead Conveyor System

The production line is equipped with a power & free overhead conveyor system designed for efficient and flexible workpiece transportation.

Key advantages include:

• Smooth and stable movement of workpieces

• Independent carrier control and accumulation capability

• Efficient use of factory space

• Flexible production flow arrangement

• Suitable for different product sizes and weights

The conveyor system can be customized according to product characteristics, production capacity, and factory layout requirements.

PVC Powder Spray Booth

The spray booth is constructed from durable PVC material, offering:

• Excellent resistance to coating chemicals

• Long service life

• Easy cleaning and maintenance

• Stable spraying environment

The booth design helps maintain consistent powder application conditions and improves overall coating efficiency.

Automatic Spraying with Manual Flexibility

The powder coating system can be configured with automatic spray guns combined with manual touch-up stations.

This hybrid spraying method provides:

• Uniform powder distribution

• Stable coating thickness

• Better coverage of complex areas

• Flexible processing for different workpieces

• Improved final surface quality

Automatic spraying ensures efficient production, while manual operation allows detailed finishing where required.

Customized Solutions and Engineering Support

Every powder coating production line is individually designed according to the customer's specific requirements, including:

• Product dimensions and weight

• Production capacity

• Coating specifications

• Factory layout

• Automation requirements

• Surface treatment standards

To provide an accurate quotation and optimized technical proposal, detailed product information and production parameters are required.

By working closely with customers, our engineering team develops coating solutions that achieve the best balance between:

• Production efficiency

• Coating quality

• Equipment reliability

• Operating cost control

Powder Coating Process Flow

1. Surface Preparation

The first step is preparing the metal surface before coating.

This stage removes:

• Oil and grease

• Dust and contaminants

• Manufacturing residues

Proper surface preparation creates a clean substrate and improves powder coating adhesion.

2. Pre-Treatment

After cleaning, workpieces undergo chemical pretreatment to improve coating performance.

Typical processes include:

• Chemical cleaning

• Phosphating

• Conversion coating treatment

Pretreatment enhances:

• Coating adhesion

• Corrosion resistance

• Surface durability

The process configuration can be customized according to different materials and application requirements.

3. Drying

After pretreatment, the workpieces pass through a drying section to remove residual moisture.

A complete drying process ensures:

• Better powder adhesion

• Reduced coating defects

• Consistent surface quality

4. Electrostatic Powder Coating Application

The dried workpieces enter the powder spray booth, where electrostatic spray guns apply charged powder particles onto grounded metal surfaces.

The electrostatic coating process provides:

• Uniform powder coverage

• High transfer efficiency

• Reduced material waste

• Stable coating quality

5. Powder Curing

After spraying, coated workpieces enter the curing oven.

During the curing process:

• Powder particles melt and flow into a continuous film

• Chemical cross-linking forms a durable protective coating layer

The finished coating provides:

• Excellent mechanical performance

• Strong corrosion resistance

• Long-term surface protection

• Attractive appearance

6. Cooling

After curing, coated components enter the cooling stage.

Cooling helps:

• Stabilize the coating film

• Maintain surface appearance

• Prepare products for inspection and handling

7. Quality Inspection

The final products are inspected to ensure coating performance meets required standards.

Inspection includes:

• Coating thickness

• Surface appearance

• Adhesion strength

• Overall coating quality

Only qualified products proceed to the next production stage.

Customized Powder Coating Production Solutions

We provide complete powder coating solutions for different industrial applications, including:

• Automatic powder coating lines

• Automatic/manual spraying systems

• Conveyor systems

• Pretreatment equipment

• Customized coating solutions

Contact us today to receive a tailored technical proposal based on your product requirements and production goals.
