Automatic PLC Control Unit Top Electrostatic Powder Coating Line for Various Sizes Aluminum Profiles in High Demand

Automatic Powder Coating Line for Aluminum Profiles

Customized Powder Coating Solution for Aluminum Profile Finishing

This automatic powder coating production line is specially designed for aluminum profiles with different lengths, shapes, and surface requirements. By combining automatic electrostatic spraying technology with manual touch-up coating, the system provides an ideal balance between production efficiency, coating consistency, and finishing flexibility.

The line is capable of processing complex aluminum profiles while ensuring uniform coating coverage, excellent surface appearance, and reliable long-term coating performance.

Production Line Features

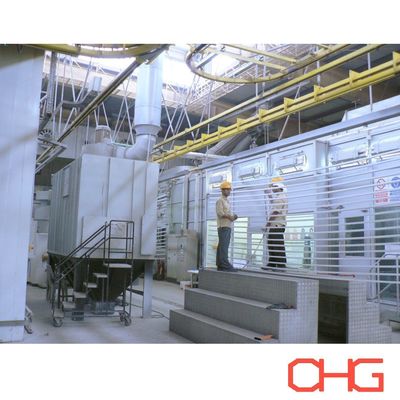

Automatic Spraying with Manual Finishing Support

The powder coating system integrates automatic spray equipment with additional manual coating operations.

This hybrid configuration offers:

• Stable and consistent coating thickness

• Efficient automatic powder application

• Additional coverage for complex areas

• Improved finishing quality on irregular profiles

• Flexible processing for customized products

Automatic spraying improves production efficiency, while manual operation allows operators to carefully handle areas requiring special attention.

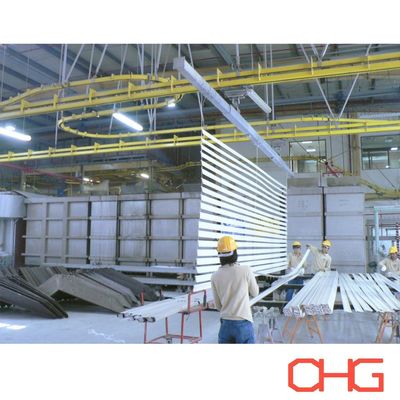

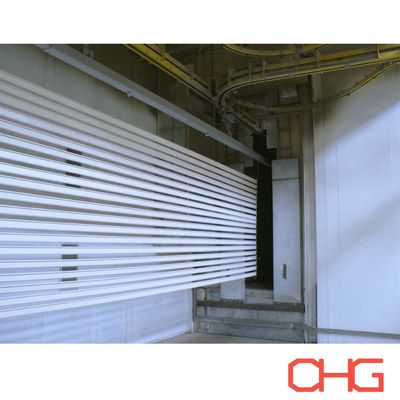

Overhead Conveyor Transportation System

The production line adopts an overhead conveyor system to transport aluminum profiles through each processing stage.

Main advantages include:

• Efficient utilization of factory space

• Smooth and continuous workpiece movement

• Suitable for long and irregular aluminum profiles

• Flexible production layout design

• Reduced manual handling requirements

The conveyor system ensures stable positioning of workpieces during pretreatment, spraying, curing, and cooling processes.

Flexible Loading and Unloading Operation

The aluminum profiles are manually loaded and unloaded, providing greater flexibility for different product specifications.

Manual handling allows:

• Careful positioning of customized profiles

• Adaptation to different product sizes

• Reduced risk of damage during handling

• Easy production changeover for various orders

This combination of automation and operator control makes the system suitable for both standard products and customized aluminum components.

Powder Coating Process Flow

1. Surface Preparation

The first stage involves preparing the aluminum profile surface to ensure strong adhesion of the powder coating.

Typical preparation includes:

• Removing dust and surface contaminants

• Degreasing oil and processing residues

• Cleaning the substrate before chemical treatment

Proper surface preparation creates a clean foundation for subsequent coating processes.

2. Pre-Treatment

After cleaning, aluminum profiles undergo a pretreatment process to improve coating adhesion and corrosion resistance.

Common treatment methods include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion treatment

The pretreatment process enhances surface performance and improves the durability of the final coating.

3. Drying

After pretreatment, the aluminum profiles enter the drying oven to remove remaining moisture.

Effective drying ensures:

• Better powder adhesion

• Uniform coating appearance

• Reduced coating defects

4. Powder Coating Application

The dried profiles are transferred to the powder coating booth, where electrostatic spray guns apply charged powder particles onto the grounded aluminum surfaces.

The electrostatic coating process provides:

• Uniform powder distribution

• High coating efficiency

• Consistent surface finish

• Reduced powder waste

Automatic spray equipment ensures stable coating quality, while manual touch-up supports detailed finishing requirements.

5. Powder Curing

After spraying, the coated aluminum profiles enter the curing oven.

During the curing process:

• Powder particles melt and flow into a continuous film

• Chemical cross-linking forms a durable coating layer

The cured coating provides:

• Excellent weather resistance

• Strong adhesion

• Good mechanical performance

• Long-lasting surface protection

6. Cooling

After curing, the profiles pass through a cooling stage.

This process helps:

• Stabilize the coating film

• Maintain surface appearance

• Prepare finished products for inspection and handling

7. Quality Inspection

The final aluminum profiles are inspected to ensure coating performance meets requirements.

Inspection items include:

• Coating thickness

• Surface appearance

• Adhesion strength

• Overall finish quality

Through strict quality control, the finished profiles achieve consistent performance and appearance.

Customized Aluminum Profile Coating Solutions

Each powder coating production line is engineered according to customer requirements, including:

• Aluminum profile dimensions

• Production capacity

• Coating specifications

• Factory layout

• Automation requirements

We provide customized powder coating solutions to meet different aluminum profile manufacturing needs.

Contact us today to receive your tailored technical proposal.

Conveyor system:
