Powder Coating Production Line with Conveyor System and Customized Equipment

Automatic Powder Coating Production Line for Various Metal Components

Flexible Powder Coating System with Automatic and Manual Spraying Integration

This automatic powder coating production line is designed for coating metal components with different sizes, shapes, and structural designs. The system combines automatic electrostatic powder spraying with supplementary manual coating, providing both production efficiency and flexibility for complex workpieces.

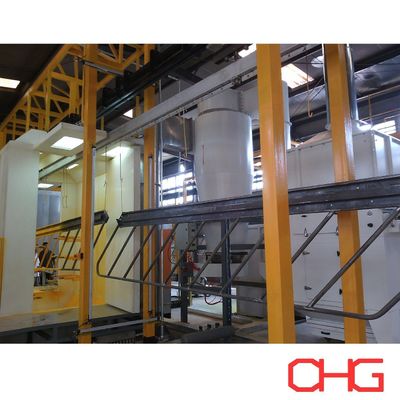

The spray booth is manufactured from PVC material, offering excellent chemical resistance, corrosion protection, and easy maintenance. The production line adopts a power & free overhead conveyor system, enabling smooth and flexible transportation of workpieces throughout the coating process.

Parts are manually loaded and unloaded, allowing operators to handle different product configurations with precision while maintaining stable coating quality.

Production Line Features

Automatic & Manual Powder Spraying Combination

The coating system integrates automated spray guns with manual touch-up operation.

This configuration provides:

• Consistent powder application

• Improved coating uniformity

• Complete coverage of corners and complex areas

• Flexible adjustment for different product designs

• Reduced coating defects

Automatic spraying ensures stable production performance, while manual coating allows operators to optimize finishing quality for special areas.

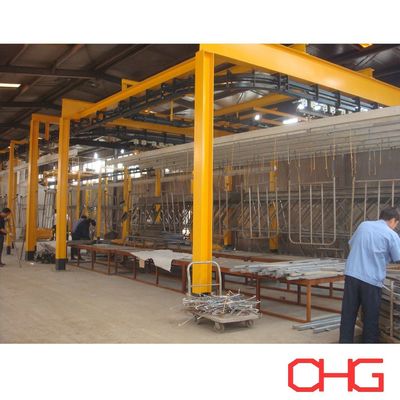

Power & Free Overhead Conveyor System

The production line uses a power & free conveyor system to improve material handling efficiency.

Key advantages include:

• Flexible workpiece movement

• Independent carrier control

• Efficient use of production space

• Smooth transfer between process sections

• Easy integration with coating equipment

This system is suitable for various industrial applications requiring flexible production flow.

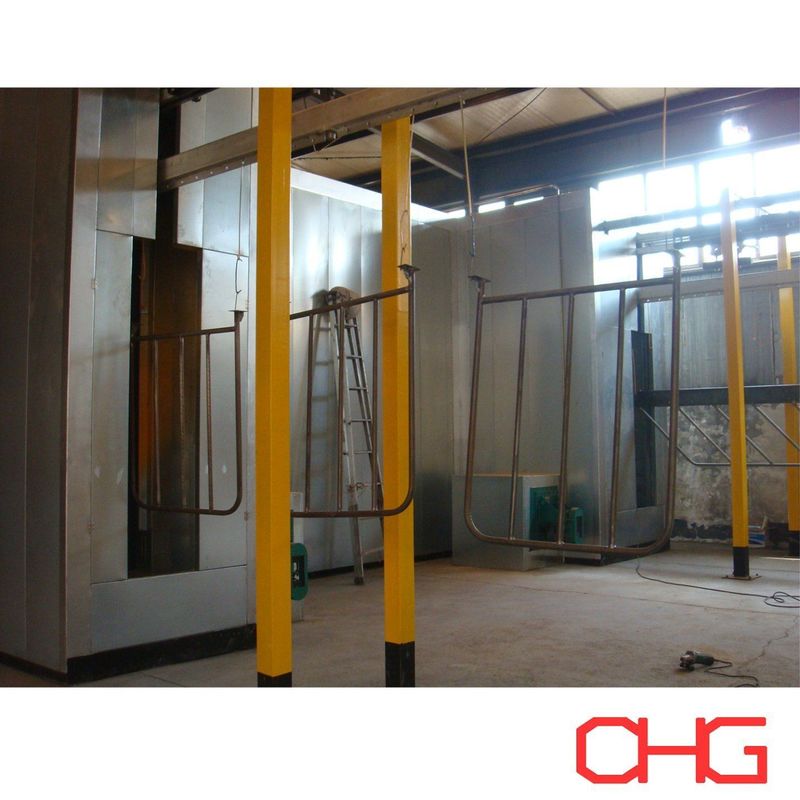

PVC Powder Spray Booth

The spray booth is constructed from durable PVC material, providing:

• Excellent resistance to powder coating chemicals

• Long service life

• Easy cleaning and maintenance

• Stable spraying environment

The booth design helps improve powder recovery efficiency and maintain consistent coating conditions.

Customized Design and Technical Proposal

Each powder coating production line is engineered according to the customer's specific requirements, including:

• Product dimensions and weight

• Production capacity

• Coating quality requirements

• Factory layout limitations

• Automation level

• Surface treatment requirements

To provide an accurate quotation and optimized solution, detailed production parameters and product information are required.

Through close technical communication, we develop a coating system that balances:

• Production efficiency

• Coating quality

• Operating reliability

• Investment requirements

Powder Coating Process Flow

1. Surface Preparation

The first stage focuses on preparing the metal surface before coating.

This process removes:

• Oil and grease

• Dust and contaminants

• Manufacturing residues

Proper surface preparation improves powder adhesion and ensures long-term coating performance.

2. Pre-Treatment

After cleaning, the workpieces undergo surface pretreatment to enhance coating performance.

Typical processes include:

• Chemical cleaning

• Phosphating

• Conversion coating treatment

Pretreatment improves:

• Coating adhesion

• Corrosion resistance

• Surface stability

The exact process can be customized according to the material and application requirements.

3. Drying

After pretreatment, the workpieces pass through a drying section to remove residual moisture.

A complete drying process ensures:

• Better powder adhesion

• Uniform coating appearance

• Stable curing performance

4. Electrostatic Powder Coating Application

The dried workpieces enter the powder spray booth, where electrostatic guns apply charged powder particles onto the grounded metal surfaces.

The process provides:

• Uniform powder deposition

• Efficient powder utilization

• Consistent coating thickness

Automatic spraying handles standard coating areas, while manual spraying provides additional coverage where needed.

5. Powder Curing

After powder application, the coated workpieces enter the curing oven.

During curing:

• Powder particles melt and flow into a continuous coating film

• Chemical cross-linking creates a durable protective layer

The final coating provides:

• Excellent mechanical strength

• Strong corrosion resistance

• Attractive surface finish

6. Cooling

After curing, coated parts enter the cooling stage.

Cooling allows the coating to:

• Stabilize properly

• Maintain surface appearance

• Achieve required physical properties

7. Quality Inspection

The finished products undergo final inspection, including:

• Coating thickness measurement

• Surface appearance checking

• Adhesion testing

• Overall quality evaluation

This ensures the coated components meet the required technical standards before delivery.

Customized Powder Coating Solutions

We provide customized coating production systems based on different product characteristics and manufacturing requirements, including:

• Automatic powder coating lines

• Hybrid automatic/manual coating systems

• Conveyor handling solutions

• Surface pretreatment systems

Contact us to receive a customized technical proposal for your powder coating project.
