Enhance Your Profile Coating Process with Automatic Powder Coating Production Line and Electrostatic Spray Guns

Automatic Powder Coating Production Line for Aluminum Profiles

Customized Overhead Conveyor Powder Coating System for Aluminum Components

This automatic powder coating production line is designed for processing aluminum profiles with various sizes, lengths, and shapes. The system adopts an overhead conveyor configuration, providing smooth and efficient transportation throughout the coating process.

The production line is equipped with manual loading and unloading stations, offering flexible operation for different aluminum profile specifications while ensuring stable coating quality and production efficiency.

Production Line Features

Suitable for Various Aluminum Profiles

The system is engineered to handle aluminum profiles with different:

• Lengths

• Cross-sectional shapes

• Surface structures

• Production requirements

The flexible design allows manufacturers to coat a wide range of aluminum products while maintaining consistent finishing performance.

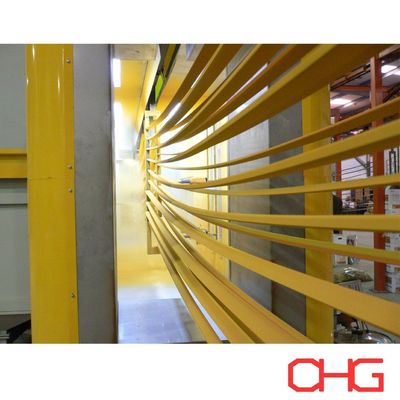

Overhead Conveyor System

The overhead conveying system provides reliable movement of workpieces through each processing stage.

Main advantages include:

• Efficient use of factory space

• Smooth transportation between processes

• Continuous production flow

• Flexible layout integration

• Reduced manual handling requirements

Manual loading and unloading allow operators to accurately position different profile types and accommodate customized production needs.

Powder Coating Process Flow

1. Surface Preparation

The first stage involves preparing the aluminum profile surface to ensure strong bonding with the powder coating.

Typical preparation includes:

• Removing dust and contaminants

• Degreasing surface oils

• Cleaning processing residues

Proper surface preparation creates a clean substrate and improves final coating adhesion.

2. Pre-Treatment

After cleaning, aluminum profiles undergo chemical pretreatment to improve:

• Powder coating adhesion

• Corrosion resistance

• Surface stability

Common pretreatment methods include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion treatment

The pretreatment process can be customized according to aluminum alloy characteristics and coating requirements.

3. Drying

After pretreatment, the profiles pass through a drying oven to remove residual moisture.

A complete drying process helps ensure:

• Strong powder adhesion

• Uniform coating appearance

• Reduced coating defects

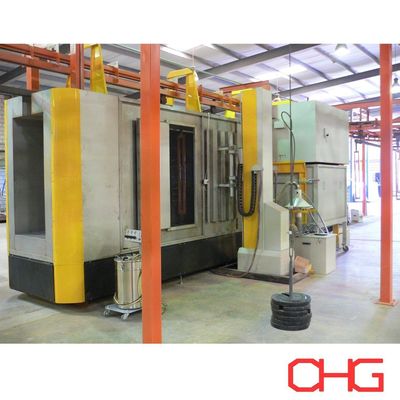

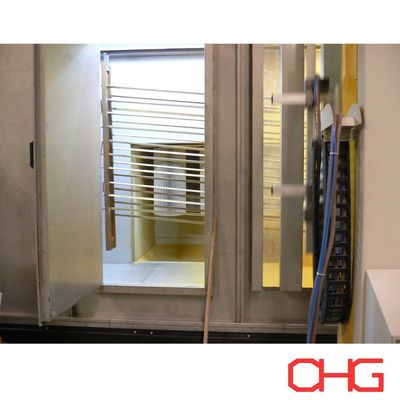

4. Electrostatic Powder Coating Application

The dried aluminum profiles enter the powder coating section, where electrostatic spray guns apply charged powder particles onto the grounded profiles.

The electrostatic process provides:

• Uniform powder distribution

• Efficient powder utilization

• Stable coating thickness

• High-quality surface finish

5. Powder Curing

After spraying, the coated profiles enter the curing oven.

During curing:

• Powder particles melt and flow together

• Chemical cross-linking forms a durable coating film

The cured coating provides excellent:

• Surface protection

• Mechanical performance

• Corrosion resistance

• Decorative appearance

6. Cooling

After curing, the coated profiles are cooled before inspection and handling.

The cooling stage helps:

• Stabilize coating performance

• Preserve surface quality

• Prepare products for downstream operations

7. Quality Inspection

The finished aluminum profiles are inspected to verify:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall coating quality

This ensures the final products meet customer requirements and industry standards.

Customized Powder Coating Solutions

Each coating production line is designed according to specific customer requirements, including:

• Product dimensions

• Production capacity

• Factory layout

• Automation level

• Coating specifications

We provide customized powder coating solutions based on different product characteristics and manufacturing needs.

Contact us today to receive your exclusive design proposal.
