Customized Automatic Powder Coating Line Combining Electrostatic Spray and Manual Coating for High Production Efficiency

Automatic Powder Coating Production Line for Complex Metal Parts

Flexible Powder Coating Solution for Various Industrial Components

This customized automatic powder coating production line is designed for processing metal components with different dimensions, shapes, and structural complexities. The system combines automated electrostatic spraying with manual touch-up coating, achieving both high production efficiency and excellent finishing quality.

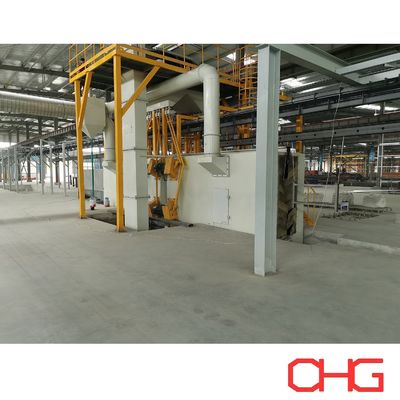

The spray booth is manufactured from high-performance polypropylene (PP) material, providing outstanding chemical resistance, durability, and easy maintenance. The combination of automatic spray guns and manual coating stations ensures complete coverage, especially for edges, corners, recessed areas, and complex geometries.

Production Line Features

Hybrid Automatic & Manual Powder Spraying

The coating system integrates automatic spraying equipment with supplementary manual operation.

Key benefits include:

• Uniform powder distribution

• Stable coating thickness

• Improved coverage of difficult areas

• Flexible processing for customized components

• Reduced coating defects caused by uneven application

Automatic spray guns provide consistent production performance, while manual spraying allows operators to handle areas requiring additional attention.

Power & Free Overhead Conveyor System

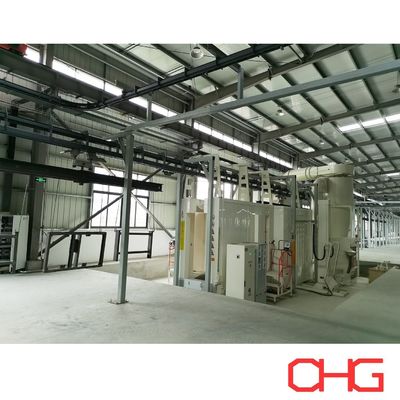

The production line adopts a power & free overhead conveyor system for efficient material transportation throughout the coating process.

Advantages include:

• Flexible workpiece movement

• Optimized workshop space utilization

• Smooth transfer between process stations

• Adjustable production flow

• Convenient integration with automated equipment

The system supports manual loading and unloading, allowing operators to carefully handle different product types while maintaining efficient production.

Flexible Handling of Complex Components

The production line is suitable for:

• Metal parts with irregular shapes

• Components with deep recesses

• Customized fabricated products

• Industrial equipment parts

• Medium and small batch production requirements

The combination of automation and manual flexibility ensures reliable coating results for a wide range of applications.

Customized Solutions and Engineering Support

Each powder coating line is designed according to the customer's specific requirements, including:

• Product dimensions and weight

• Production capacity

• Coating quality standards

• Workshop layout

• Automation level

• Process requirements

To provide an accurate technical proposal and quotation, detailed product information and production parameters are required.

Our engineering team develops customized coating solutions to optimize production efficiency, coating performance, and long-term operating reliability.

Powder Coating Process Flow

1. Surface Preparation

Before coating, metal parts undergo surface preparation to remove:

• Oil and grease

• Dust and contaminants

• Manufacturing residues

Proper surface preparation ensures a clean substrate and improves the bonding strength of the powder coating.

2. Pre-Treatment

After cleaning, the workpieces undergo chemical pretreatment to enhance:

• Coating adhesion

• Corrosion resistance

• Surface stability

Typical pretreatment methods include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion treatment

The pretreatment process can be customized according to material type and performance requirements.

3. Drying

After pretreatment, the workpieces pass through a drying oven to remove residual moisture.

Complete drying helps achieve:

• Better powder adhesion

• Uniform coating appearance

• Stable curing performance

4. Electrostatic Powder Coating Application

The dried workpieces enter the powder spray booth, where electrostatic spray guns apply charged powder particles onto the grounded metal surfaces.

The process provides:

• Even powder deposition

• Efficient powder utilization

• Consistent coating quality

Automatic spraying ensures stable output, while manual coating supplements areas requiring additional coverage.

5. Powder Curing

After spraying, coated components enter the curing oven.

During curing:

• Powder particles melt and flow into a continuous film

• Chemical cross-linking forms a strong protective coating layer

The cured coating provides:

• Excellent durability

• Good impact resistance

• Strong corrosion protection

• Attractive surface appearance

6. Cooling

After curing, the finished components are cooled before inspection or further processing.

Cooling stabilizes the coating film and maintains the final surface quality.

7. Quality Inspection

Finished products undergo inspection to verify:

• Coating thickness

• Surface appearance

• Adhesion strength

• Overall coating performance

This ensures the final products meet the required quality standards before delivery.

Customized Powder Coating Production Solutions

We provide complete customized coating systems according to different industrial applications, including:

• Automatic powder coating lines

• Manual powder coating systems

• Hybrid automatic/manual spraying solutions

• Customized conveyor and handling systems

Contact us today for a tailored design proposal based on your product characteristics and production requirements.
