Electrostatic Spraying Equipment Professional Dipping Pretreatment for Aluminum Profiles Powder Coating Production

Advanced Immersion Pretreatment System for Aluminum Profile Coating Applications

High-Performance Surface Preparation Solution for Aluminum Finishing

This customized immersion pretreatment system is designed for aluminum profile coating lines, providing reliable surface preparation before powder coating, electrophoretic coating, or liquid painting processes.

By using a multi-stage dipping treatment method, aluminum profiles are completely immersed in chemical solutions, ensuring uniform surface treatment across the entire workpiece. The system improves surface cleanliness, coating adhesion, and corrosion resistance, providing a stable foundation for high-quality finishing performance.

Key Features and Advantages

1. Full Immersion Surface Treatment

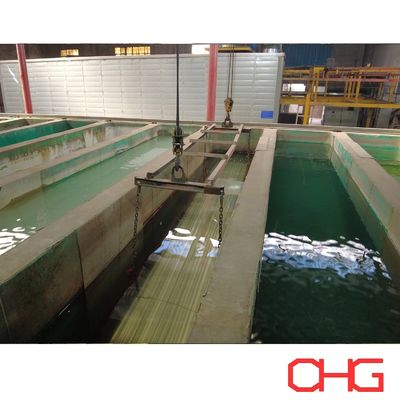

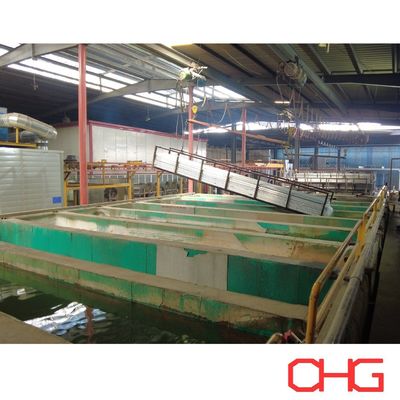

Unlike conventional spray treatment methods, the immersion process allows aluminum profiles to be fully surrounded by treatment solutions during each processing stage.

This ensures:

• Complete contact between chemical solutions and workpiece surfaces

• Uniform treatment of complex profile geometries

• Effective processing of grooves, cavities, and difficult-to-reach areas

• Consistent surface quality across different profiles

This makes the system especially suitable for aluminum profiles with complex cross-sections.

2. Effective Cleaning and Surface Activation

The multi-stage pretreatment process efficiently removes:

• Oil and grease residues

• Dust and surface contaminants

• Oxide layers

• Manufacturing residues

After cleaning and activation, the aluminum surface achieves improved wettability and bonding characteristics, resulting in stronger coating adhesion and better long-term durability.

3. Flexible Pretreatment Process Configuration

The immersion pretreatment system can be configured according to different aluminum materials, coating requirements, and environmental standards.

Typical process options include:

• Alkaline cleaning

• Acid etching

• Water rinsing

• Chromate conversion coating

• Chrome-free conversion treatment

• Deionized water rinsing

The process sequence and chemical parameters can be customized based on the final coating requirements.

4. High-Efficiency Industrial Production

The dipping system is designed for continuous industrial production and can process multiple workpieces simultaneously.

Advantages include:

• Large processing capacity

• Stable chemical contact

• Optimized treatment time

• Consistent batch-to-batch quality

The tank layout and material handling system can be customized according to production capacity and factory conditions.

5. Reliable and Cost-Effective Operation

The system features a robust industrial design to ensure long-term operation with reduced maintenance requirements.

Benefits include:

• Stable pretreatment performance

• Efficient chemical utilization

• Reduced production interruptions

• Lower operating costs

• Easy integration with coating lines

Typical Immersion Pretreatment Process

1. Cleaning & Degreasing

Aluminum profiles are immersed in cleaning solutions to remove oils, grease, and surface contaminants generated during extrusion, storage, and handling.

2. Rinsing

Multiple rinsing stages remove residual chemicals and prevent contamination between treatment tanks.

3. Surface Activation

Chemical activation improves surface conditions and prepares the aluminum substrate for subsequent coating.

4. Conversion Treatment

A conversion coating layer is formed on the aluminum surface to enhance:

• Powder coating adhesion

• Corrosion resistance

• Long-term coating stability

5. Final Rinsing

Final rinsing removes remaining chemical residues and ensures a clean surface before drying and coating application.

Typical Applications

The immersion pretreatment system is widely used for aluminum products requiring high-quality coating performance, including:

• Architectural aluminum profiles

• Automotive aluminum components

• Industrial aluminum structures

• Aluminum furniture

• Electronics housings

• Customized aluminum products

Customized Pretreatment Solutions

Each immersion pretreatment system is engineered according to customer requirements, including:

• Aluminum profile dimensions and weight

• Production capacity

• Required coating system

• Chemical process requirements

• Factory layout limitations

• Automation level

Our engineering team provides customized solutions to ensure stable pretreatment performance and seamless integration with complete coating production lines.

Contact us for a tailored technical proposal and advanced immersion pretreatment solution for your aluminum coating applications.
