Pretreatment Spray System Providing Surface Conditioning and Long Term Corrosion Protection for Automotive Metal Substrates

Metal Substrate Electrophoresis (E-Coating) Pretreatment System for Automotive Components

Advanced Surface Preparation Solution for E-Coating Applications

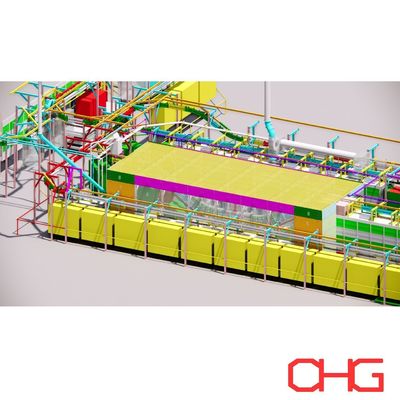

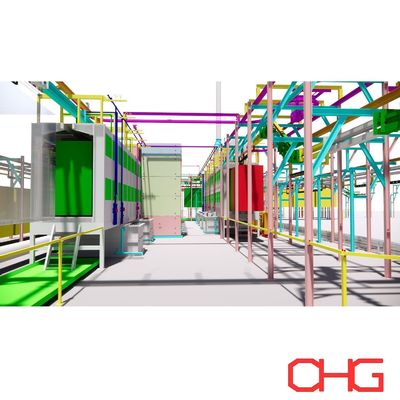

This customized electrophoretic coating pretreatment line is specifically designed for automotive metal components, providing reliable surface conditioning before the E-coating process. The system effectively removes oil, oxides, and surface contaminants while improving substrate activation, coating adhesion, and long-term corrosion protection.

Through optimized chemical treatment processes and precise parameter control, the pretreatment system ensures a stable and consistent surface condition for subsequent electrophoretic deposition. The line is equipped with intelligent monitoring and automatic control functions to maintain key process parameters, including chemical concentration, bath temperature, liquid level, and treatment time.

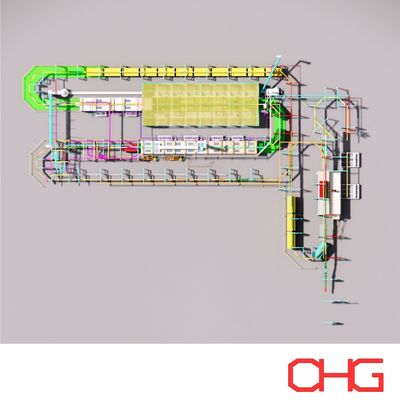

Complete Pretreatment Process Flow

The system integrates multiple treatment stages to achieve high-quality surface preparation:

1. Pre-Degreasing

The initial cleaning stage removes loose oil, dust, and surface contaminants, preparing the workpieces for deeper chemical treatment.

2. Degreasing

A chemical cleaning process is applied to thoroughly remove grease, oil residues, and organic contaminants from the metal surface, improving the effectiveness of subsequent treatment steps.

3. Rinse Stage 1

The first rinsing stage removes residual chemicals from the previous cleaning process and reduces contamination carryover.

4. Rinse Stage 2

The secondary rinsing stage further improves surface cleanliness and ensures stable conditions before acid activation.

5. Acid Treatment

The acid treatment stage plays a critical role in surface activation by removing:

• Oxide layers

• Scale residues

• Surface impurities

• Micro-contaminants

This process improves substrate reactivity and creates an ideal surface condition for enhanced E-coating adhesion and coating durability.

6. Rinse Stage 3

The first post-acid rinse removes remaining acid residues and prevents chemical contamination of downstream processes.

7. Rinse Stage 4

The final rinsing stage ensures a clean, residue-free surface before entering the electrophoretic coating system.

Applicable Workpiece Range

The pretreatment line is designed for automotive metal components with maximum dimensions of:

1.1 m × 4.0 m × 2.0 m

The system can be customized according to:

• Workpiece dimensions and weight

• Production capacity requirements

• Required pretreatment chemicals

• Factory layout limitations

• Integration requirements with E-coating systems

Technical Configuration

Key Advantages

• Improved Coating Adhesion: The optimized pretreatment process creates a clean and activated metal surface, providing a strong foundation for electrophoretic coating.
• Enhanced Corrosion Resistance: Proper surface conditioning improves the protective performance of the final E-coating layer, making it suitable for demanding automotive applications.
• Stable Process Control: Automatic monitoring of chemical parameters, temperature, and liquid levels ensures repeatable production quality.
• Flexible Engineering Design: The system can be configured for different products, materials, production capacities, and factory conditions.

Customized E-Coating Pretreatment Solutions

We provide customized pretreatment systems designed to integrate seamlessly with complete KTL/EPD production lines or existing coating facilities.

Our engineering solutions can be tailored for:

• Automotive battery housings

• Structural automotive components

• Metal chassis parts

• Industrial components requiring electrophoretic coating

Contact us for a customized technical proposal and optimized pretreatment solution based on your production requirements.
