Wooden/Metal Board Powder Coating System with Powder Recovery

MDF-Compatible Powder Coating Production Line with Automated and Manual Spraying

Flexible Coating Solution for MDF Panels and Metal Components

This customized powder coating production line is designed for medium-density fiberboard (MDF), engineered wood panels, and metal sheet components. By combining automatic powder spraying with additional manual touch-up operations, the system achieves efficient production while maintaining excellent coating coverage on different product geometries.

The production line adopts a Power & Free overhead conveyor system, providing flexible workpiece transportation and optimized production flow. Loading and unloading operations are performed manually, allowing operators to handle various product sizes and configurations with greater flexibility.

Production Process Flow

Manual Loading

↓

Preheating (60–80°C, approx. 3 min)

↓

Automatic Powder Spraying + Manual Touch-Up

↓

Powder Curing (135–140°C, approx. 10 min)

↓

Natural Cooling

↓

Manual Unloading

Key Features

Hybrid Automatic & Manual Coating System

The automatic spraying system provides consistent powder distribution and efficient coating application, while manual touch-up allows operators to improve coverage on edges, corners, and complex areas.

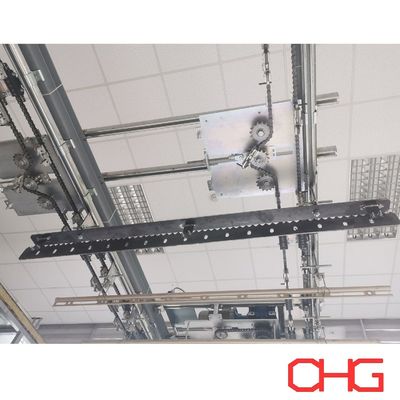

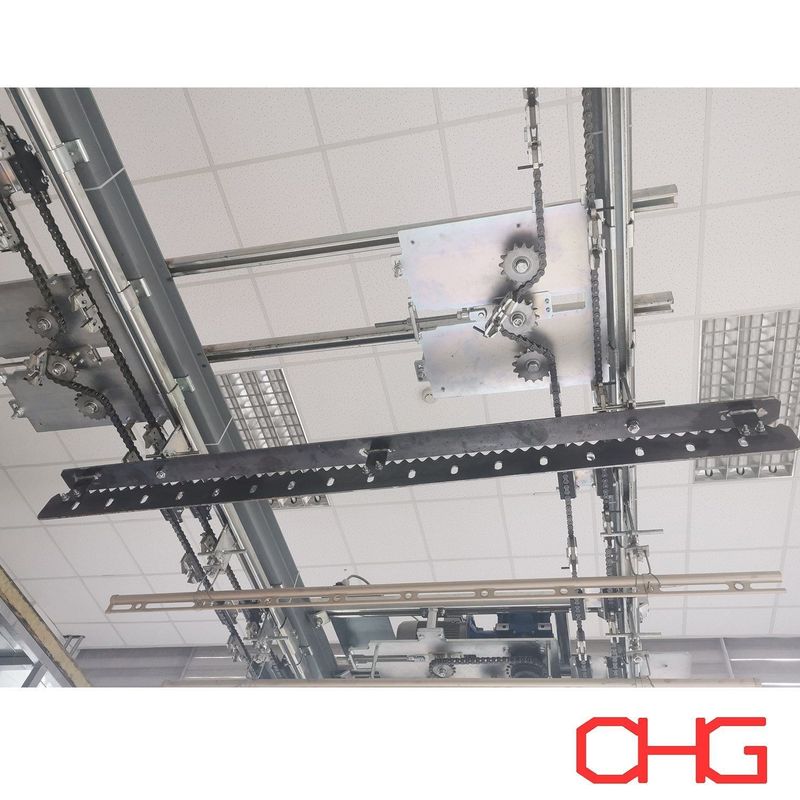

Power & Free Overhead Conveyor

The overhead conveyor system enables flexible carrier movement and accumulation, improving production organization and allowing smooth transportation between processing stages.

Suitable for Multiple Substrates

The line is specially adapted for:

• MDF boards

• Engineered wood panels

• Metal panels

• Composite components requiring powder coating protection

Flexible Production Configuration

The system can be customized according to:

• Product dimensions and weight

• Required production capacity

• Coating material characteristics

• Factory layout conditions

• Required automation level

Powder Coating Process

1. Surface Preparation

Before coating, the workpieces undergo surface preparation to remove dust, oil, and other contaminants. Proper cleaning ensures improved powder adhesion and coating stability.

2. Surface Conditioning / Pretreatment

Depending on the substrate material, suitable surface treatment methods are applied to enhance coating performance. For metal components, processes such as chemical cleaning, phosphating, or conversion coating can improve corrosion resistance and adhesion.

3. Preheating & Drying

The workpieces are heated before powder application to remove moisture and improve powder adhesion, especially for MDF and other moisture-sensitive substrates.

4. Powder Coating Application

The powder coating material is electrostatically charged and applied through spray guns. The charged powder particles are attracted to the grounded workpieces, creating a uniform coating layer. Automatic spraying ensures efficiency, while manual touch-up improves coverage in difficult areas.

5. Powder Curing

After spraying, the coated parts enter the curing process. Controlled heating allows the powder particles to melt, flow, and form a continuous protective coating film with good adhesion and durability.

6. Cooling

Following curing, the coated components are naturally cooled to stabilize the coating layer and maintain the required surface appearance and performance.

7. Quality Inspection

The finished products are inspected for:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall coating quality

to ensure the final products meet customer requirements.

Customized Coating Solutions

All powder coating production lines are engineered according to the customer's specific products, production targets, and factory conditions.

To provide an accurate technical proposal and quotation, please provide detailed information including:

• Product dimensions and materials

• Production capacity requirements

• Coating specifications

• Available installation space

• Required automation level

Our engineering team will develop a customized powder coating solution optimized for your manufacturing needs.
