Electrophoretic Electrophoresis Plating E-Coating KTL/EPD Production Line

Electrophoretic Electrophoresis Plating E-Coating KTL/EPD Production Line

Brand Name: CHG
Model Number: AC-01
MOQ: 1 set
Price: 1,000,000 - 2,000,000 USD
Payment Terms: Western Union,T/T,D/P,L/C,D/A
Supply Ability: 10 sets per year
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Model NO.:
AC-01
Coating:
Plating
Substrate:
Metal
Size:
Customized
Mini Order Qty:
1 Set
Transport Package:
Customized
After-sales Service:
Guide Equipment Installation And Use
Packaging Details:
Varies depending on the design
Highlight:

Electrophoretic plating production line

,

E-coating KTL production line

,

EPD coating equipment

Product Description

Automotive Battery Enclosure Electrophoretic Coating System (KTL/EPD)


High-Performance E-Coating Technology for Electric Vehicle Components

This cathodic electrophoretic coating (KTL/EPD) production line is specifically designed for electric vehicle battery housings, battery trays, and other structural metal components that require excellent corrosion protection and long-term coating durability.

Using advanced electro-deposition technology, the system applies a highly uniform protective coating film across the complete surface of the workpiece. The process provides outstanding coverage on complex geometries, deep recesses, edges, and enclosed areas where conventional spray coating may have limitations.

The production line is suitable for various automotive metal substrates, including:

  • Carbon steel

  • Galvanized steel

  • Aluminum alloys

  • Other conductive metal components

Customized Engineering for Automotive Manufacturing

1. Product Analysis and Process Planning

Each E-coating system is engineered according to the customer's specific production requirements, including:

  • Component dimensions and weight

  • Annual production capacity

  • Required corrosion resistance performance

  • Factory layout conditions

  • Automation requirements

Based on these factors, our engineering team develops:

  • Customized process flow

  • Optimized equipment layout

  • 3D design drawings

  • Technical solutions adapted to production requirements

2. Equipment Fabrication and Quality Assurance

The complete electrophoretic coating system is manufactured according to confirmed engineering specifications and approved drawings.

During the manufacturing process, quality control includes:

  • Equipment fabrication inspection

  • Component quality verification

  • Assembly accuracy checking

  • Production progress tracking

This ensures reliable equipment performance and stable operation throughout the service life of the system.

3. Installation Support and Production Start-Up

After equipment delivery, technical support is provided for system installation, commissioning, and production preparation.

The service includes:

  • Equipment installation assistance

  • Electrical and mechanical commissioning

  • Process parameter optimization

  • Initial production testing

Operator training can be provided for:

  • Equipment operation procedures

  • Daily maintenance requirements

  • Process control methods

  • Troubleshooting and problem solving

  • Safe production practices

Key Benefits of KTL / EPD Coating Technology

Complete and Uniform Surface Protection

Electrophoretic deposition enables paint particles to penetrate and deposit evenly on the entire component surface, achieving reliable coating coverage on:

  • Complex automotive structures

  • Internal cavities

  • Welded areas

  • Narrow gaps and recessed sections

This ensures consistent coating thickness and improved product reliability.

Excellent Corrosion Protection Performance

The E-coating process creates a dense protective film with strong substrate adhesion, providing enhanced resistance against:

  • Salt spray corrosion

  • Humidity and moisture

  • Chemical exposure

  • Severe operating environments

This makes the technology particularly suitable for EV battery enclosure applications where long-term protection is essential.

Efficient Paint Utilization

Compared with traditional spray painting methods, electrophoretic coating provides:

  • High coating transfer efficiency

  • Reduced paint consumption

  • Improved material utilization

  • Stable film thickness control

The closed-loop recovery system further helps reduce operating costs and minimize waste.

Environmentally Responsible Coating Process

The water-based electrophoretic coating process helps manufacturers achieve cleaner production by reducing:

  • VOC emissions

  • Solvent usage

  • Coating waste

Combined with automated process control, the system provides a safer and more consistent working environment.

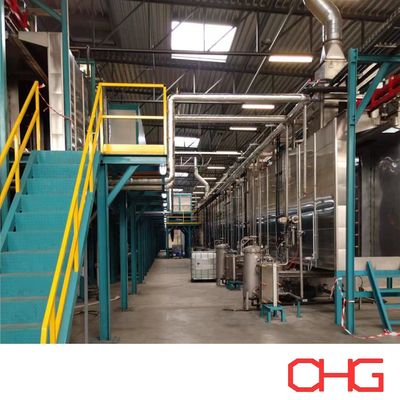

Flexible KTL / EPD System Configuration

The complete electrophoretic coating line can be customized according to different product and production requirements, including:

  • Spray or immersion pretreatment system

  • Electrophoretic coating tanks

  • Ultrafiltration (UF) recovery system

  • Multi-stage rinsing system

  • Paint circulation and filtration system

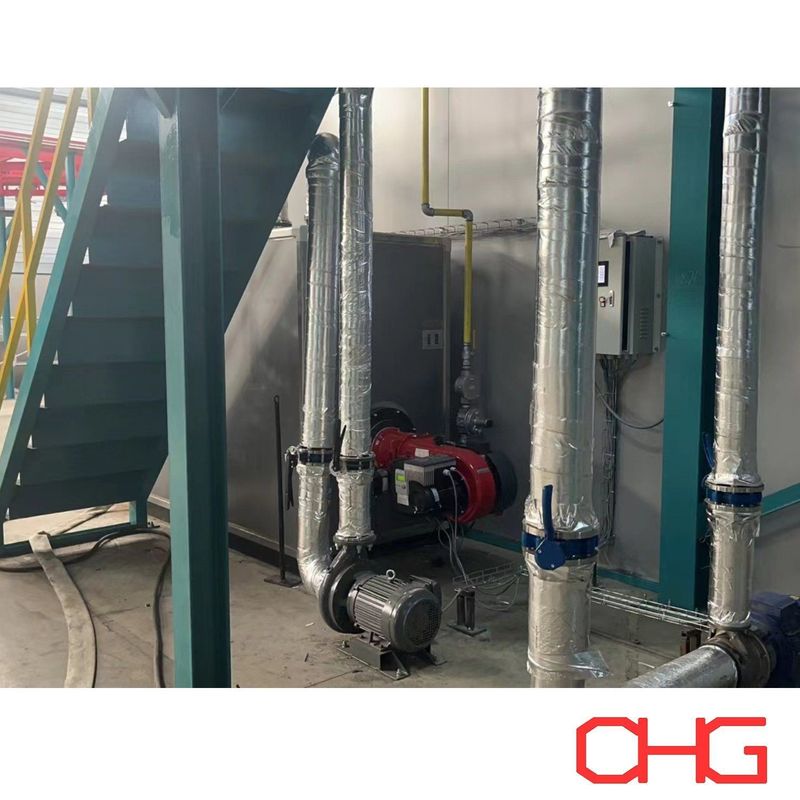

  • Curing oven system

  • Automated transfer and conveyor equipment

From individual process equipment integration to complete turnkey coating systems, customized solutions can be developed according to customer production goals, factory conditions, and quality requirements.

Contact us for a customized technical proposal and professional KTL/EPD coating solution for automotive battery enclosure manufacturing.
