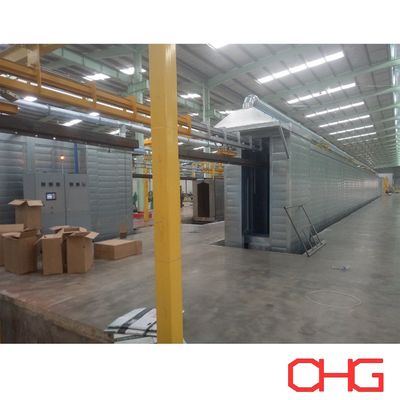

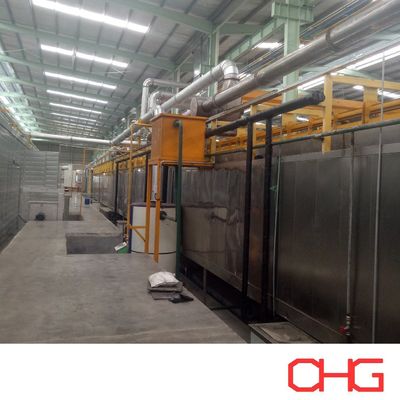

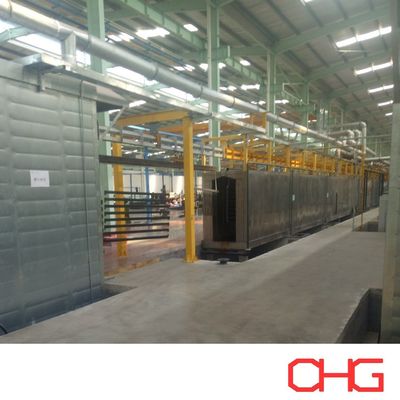

Powder Coating Line for Aluminum Profiles with Overhead Conveyor System and Manual Loading to Support Diverse Production

Efficient and Flexible Powder Coating Solution

This powder coating production line is specifically designed for aluminum profiles of various sizes, shapes, and cross-sectional configurations. The system utilizes an overhead conveyor system to ensure smooth, continuous transportation throughout the coating process, while manual loading and unloading provide the flexibility needed to accommodate different profile types and production requirements.

Designed for high-quality architectural and industrial aluminum finishing, the production line combines reliable automation with operator flexibility, delivering consistent coating quality, high production efficiency, and dependable long-term performance.

Key Features

• Suitable for aluminum profiles of various sizes and complex geometries

• Overhead conveyor system for smooth and space-efficient material handling

• Manual loading and unloading for flexible production

• Stable conveying and continuous operation

• Custom-designed according to product dimensions, capacity, and plant layout

Powder Coating Process

1. Surface Preparation

The process begins with thorough surface preparation to remove oil, grease, dust, and other contaminants from the aluminum profiles. Proper cleaning is essential for achieving excellent coating adhesion and long-term coating performance.

2. Pretreatment

After cleaning, the profiles undergo chemical pretreatment to improve corrosion resistance and coating adhesion. Depending on product requirements, the pretreatment process may include:

• Chemical cleaning

• Phosphating

• Chromate conversion coating

• Chrome-free conversion coating

This stage creates an ideal surface for subsequent powder coating.

3. Drying

Following pretreatment, the aluminum profiles pass through a drying oven to remove all residual moisture. A completely dry surface is critical to ensure uniform powder deposition and prevent coating defects.

4. Electrostatic Powder Coating

The dried profiles enter the powder coating booth, where electrostatically charged powder is evenly applied using automatic or manual spray guns, depending on production requirements. The charged powder particles are attracted to the grounded workpieces, producing a uniform and consistent coating layer.

5. Powder Curing

The coated profiles are conveyed into the curing oven, where the powder melts, flows, and chemically cross-links under controlled temperature conditions. This process forms a durable, smooth, impact-resistant, and corrosion-resistant finish.

6. Cooling

After curing, the coated profiles pass through the cooling section, allowing the coating film to stabilize while preserving its appearance and mechanical properties.

7. Quality Inspection

Each finished profile undergoes comprehensive quality inspection, including:

• Coating thickness measurement

• Surface appearance inspection

• Adhesion testing

• Overall coating quality verification

Only products meeting the specified quality standards proceed to packaging or subsequent manufacturing processes.

Customized Engineering Solutions

Every powder coating production line is engineered according to each customer's specific manufacturing requirements. Our engineering team provides customized solutions based on:

• Workpiece dimensions and profiles

• Production capacity

• Pretreatment process requirements

• Automation level

• Factory layout and available space

• Energy source and local standards

Contact us today to receive a customized technical proposal and discover a powder coating solution designed specifically for your aluminum profile manufacturing requirements.
