Durable Powder Coating Line Featuring Polypropylene Spray Booth and Power Free Overhead Conveyor for Metal Part Coating

Automatic Powder Coating Production Line for Diverse Metal Parts

Flexible Powder Coating Solution for Complex Metal Components

This automatic powder coating production line is designed for coating metal parts of various sizes, shapes, and structural configurations. The system combines automatic electrostatic powder spraying with manual touch-up stations, providing consistent coating quality while ensuring complete coverage of complex geometries.

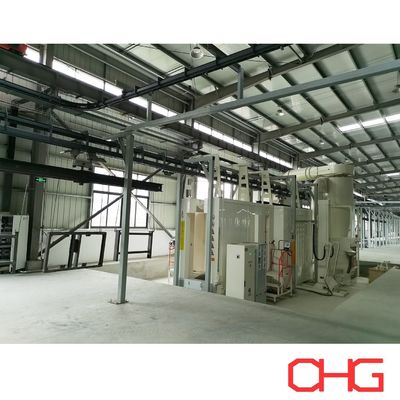

The powder spray booth is constructed from high-quality PP (polypropylene), offering excellent corrosion resistance, chemical resistance, and long service life. Workpieces are transported through the production process by a Power & Free overhead conveyor system, while manual loading and unloading provide the flexibility required for handling products with different dimensions and production requirements.

Key Features

• Suitable for metal parts of various sizes and geometries

• Automatic electrostatic powder spraying with manual touch-up

• PP powder spray booth with excellent corrosion resistance

• Power & Free overhead conveyor system

• Manual loading and unloading for flexible production

• Stable operation with consistent coating quality

Material Handling System

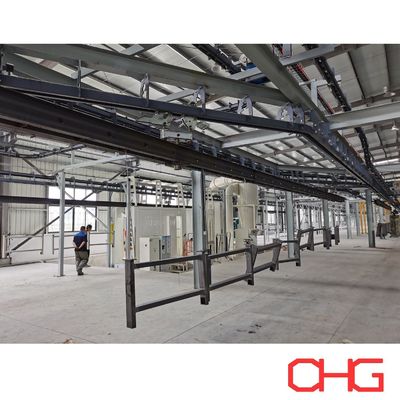

The production line utilizes a Power & Free overhead conveyor system to transport workpieces efficiently through pretreatment, drying, powder coating, curing, cooling, and unloading.

The conveyor system provides:

• Continuous production flow

• Flexible workpiece accumulation and routing

• Stable transportation of various component types

• Optimized workshop space utilization

• Improved production efficiency

Manual loading and unloading stations enable operators to handle workpieces with different dimensions and complex geometries safely and efficiently.

Powder Coating Process

1. Surface Preparation: Workpieces are cleaned to remove oil, grease, dust, and other contaminants, ensuring excellent coating adhesion.

2. Pretreatment: Chemical pretreatment improves corrosion resistance and coating performance. Depending on product requirements, the process may include:

• Degreasing

• Chemical cleaning

• Phosphating

• Chromate or chrome-free conversion coating

3. Drying: After pretreatment, the workpieces pass through a drying oven to remove residual moisture before coating.

4. Electrostatic Powder Application: Automatic electrostatic spray guns apply powder evenly to grounded workpieces. Manual touch-up stations provide additional coating for recessed areas, corners, and complex geometries, ensuring complete and uniform coverage.

5. Powder Curing: The coated workpieces enter a curing oven where controlled heating melts and chemically cross-links the powder coating, forming a smooth, durable, and corrosion-resistant finish.

6. Cooling: Following curing, the workpieces are cooled under controlled conditions to stabilize the coating and preserve its mechanical and aesthetic properties.

7. Quality Inspection: Finished products are inspected to verify:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall coating quality

Only qualified products proceed to packaging or downstream production processes.

Customized Engineering Solutions

Every powder coating production line is engineered according to the customer's specific manufacturing requirements.

Our engineering team can customize the system based on:

• Workpiece dimensions and weight

• Production capacity

• Pretreatment process

• Coating specifications

• Factory layout

• Automation level

• Environmental requirements

From standalone equipment to complete turnkey powder coating plants, we provide integrated engineering services covering system design, equipment manufacturing, installation, commissioning, and technical support.

Contact us today to receive a customized technical proposal tailored to your production requirements.
