Powder Coating Line Combining Automatic Electrostatic Spraying and Manual Touch Up Stations for Coating on Aluminum Profiles

Powder Coating Production Line for Aluminum Profiles

Automatic Powder Coating System with Manual Touch-Up

This powder coating production line is specifically designed for aluminum profiles of various sizes, cross-sections, and structural configurations. The system combines automatic electrostatic powder spraying with manual touch-up stations, ensuring consistent coating quality and complete coverage, even on complex profile geometries.

The production line utilizes an overhead conveyor system for continuous material handling, while manual loading and unloading provide the flexibility required for different product types and production requirements.

Key Features

• Suitable for aluminum profiles of various dimensions and shapes

• Automatic electrostatic powder spraying with manual touch-up

• PP (polypropylene) powder spray booth with excellent corrosion resistance

• Overhead conveyor system for efficient material handling

• Manual loading and unloading for flexible production

• Stable operation with consistent coating quality

Powder Spray Booth

The powder spray booth is manufactured from high-quality PP (polypropylene), providing excellent chemical resistance, corrosion resistance, and long service life.

The booth is designed to provide:

• Efficient powder containment

• Stable airflow distribution

• Safe working conditions

• Easy maintenance

• Reliable coating quality

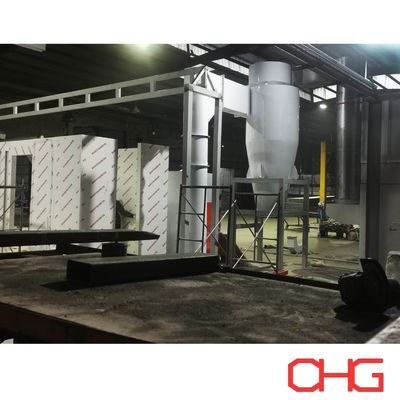

The integrated powder recovery system helps reduce powder consumption while improving overall production efficiency.

Material Handling System

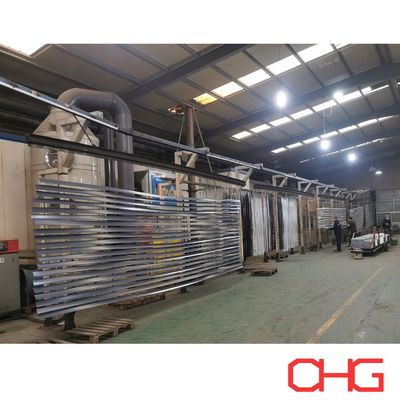

An overhead conveyor system transports aluminum profiles smoothly through each production stage, including pretreatment, drying, powder coating, curing, cooling, and unloading.

The conveyor system offers:

• Continuous production flow

• Optimized workshop space utilization

• Stable workpiece transportation

• Flexible production scheduling

Manual loading and unloading stations allow operators to efficiently handle aluminum profiles of different sizes and configurations.

Powder Coating Process

1. Surface Preparation: Aluminum profiles are cleaned to remove oil, grease, dust, and other contaminants, ensuring excellent coating adhesion.

2. Pretreatment: Chemical pretreatment improves corrosion resistance and coating performance. Depending on product requirements, the process may include:

• Degreasing

• Chemical cleaning

• Phosphating

• Chromate or chrome-free conversion coating

3. Drying: After pretreatment, the profiles pass through a drying oven to remove residual moisture before coating.

4. Electrostatic Powder Application: Automatic electrostatic spray guns apply powder evenly to grounded aluminum profiles. Manual touch-up stations provide additional coating for recessed areas and complex profile sections, ensuring complete and uniform coverage.

5. Powder Curing: The coated profiles enter a curing oven where controlled heating melts and chemically cross-links the powder coating, forming a smooth, durable, and corrosion-resistant finish.

6. Cooling: Following curing, the profiles are cooled under controlled conditions to stabilize the coating and preserve its mechanical and aesthetic properties.

7. Quality Inspection: Finished products are inspected to verify:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall coating quality

Only qualified products proceed to packaging or downstream production processes.

Customized Engineering Solutions

Every powder coating production line is engineered according to the customer's specific manufacturing requirements.

Our engineering team can customize the system based on:

• Aluminum profile dimensions

• Production capacity

• Pretreatment process

• Coating specifications

• Factory layout

• Automation level

From standalone equipment to complete turnkey powder coating plants, we provide integrated services covering engineering design, equipment manufacturing, installation, commissioning, and technical support.

Contact us today to receive a customized technical proposal tailored to your production requirements.
