Customized Automatic E-Coating Equipment for Aluminum Parts Electrophoretic Coating/Painting Line

High-Performance Surface Finishing Solution for Metal Components

This fully automated electrophoretic coating (E-coat) production line is designed to provide high-quality corrosion protection and uniform surface finishing for a wide range of metal components. Utilizing advanced cathodic electrophoretic deposition (CED) technology, the system delivers excellent coating consistency, high paint utilization, and reliable long-term performance.

Suitable for continuous industrial production, the line is widely used in the automotive, appliance, construction, machinery, and general manufacturing industries.

The production line can be fully customized according to product dimensions, production capacity, coating specifications, and factory layout.

Applicable Materials

The system is suitable for processing various electrically conductive metal components, including:

• Carbon steel

• Galvanized steel

• Aluminum alloys

• Cast iron

• Stainless steel (where applicable)

Process Flow

Typical process sequence: Manual Loading → Surface Pretreatment → Electrophoretic Coating → Ultrafiltration (UF) Rinsing → Curing → Cooling → Manual Unloading

The pretreatment section may include:

• Degreasing

• Surface cleaning

• Multi-stage rinsing

• Phosphating or conversion coating

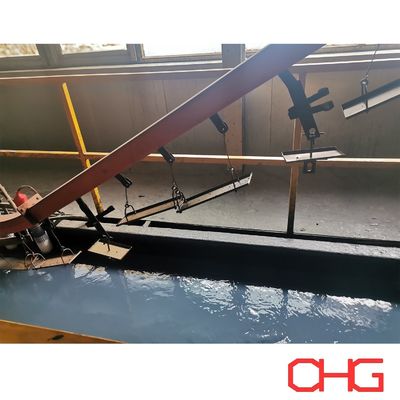

The electrophoretic coating process is followed by ultrafiltration rinsing to recover paint and improve material utilization before the coated parts enter the curing oven.

Key Features

Uniform Coating Coverage

Electrophoretic deposition provides highly uniform coating thickness, including on:

• Internal cavities

• Recessed areas

• Sharp edges

• Complex geometries

Excellent Corrosion Resistance

The cured coating forms a dense protective film that significantly improves resistance to:

• Salt spray

• Humidity

• Chemical exposure

• Outdoor environments

High Paint Utilization

With paint transfer efficiency exceeding 95%, the system minimizes coating waste and reduces operating costs.

Environmentally Friendly Process

The water-based coating system helps reduce:

• VOC emissions

• Solvent consumption

• Environmental impact

while supporting compliance with modern environmental regulations.

Stable Process Control

The automated control system continuously monitors:

• Bath temperature

• Voltage

• Current

• Conductivity

• Coating thickness

ensuring stable production and consistent coating quality.

Typical Applications

The production line is suitable for coating:

• Automotive components

• Battery enclosures and trays

• Household appliances

• Electrical cabinets

• Industrial equipment

• Agricultural machinery

• Construction hardware

• General fabricated metal parts

Customized Engineering Solutions

Every electrophoretic coating production line is engineered according to the customer's specific manufacturing requirements.

Our engineering team can customize the system based on:

• Workpiece dimensions

• Production capacity

• Required coating performance

• Plant layout

• Automation level

• Environmental requirements

From standalone E-coating equipment to complete turnkey production lines, we provide integrated solutions covering engineering design, equipment manufacturing, installation, commissioning, and technical support.

Contact us today to receive a customized technical proposal for your electrophoretic coating project.
