Power & Free Overhead Conveyor System for Coating Production Lines

Flexible Material Handling for Automated Surface Finishing

Our Power & Free overhead conveyor system is engineered to provide efficient, flexible, and intelligent workpiece transportation for a wide range of coating production lines. Featuring independently controlled powered and free tracks, the system enables precise carrier movement, accumulation, buffering, and routing throughout the coating process.Compared with conventional conveyor systems, the Power & Free design offers greater production flexibility, allowing different workpieces to follow independent process sequences while maximizing equipment utilization and factory space.Suitable for powder coating, liquid painting, electrophoretic coating, and other automated finishing applications, the system can be customized according to workpiece dimensions, production capacity, and plant layout.

Key Features

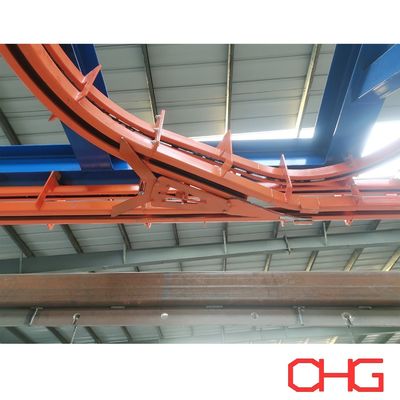

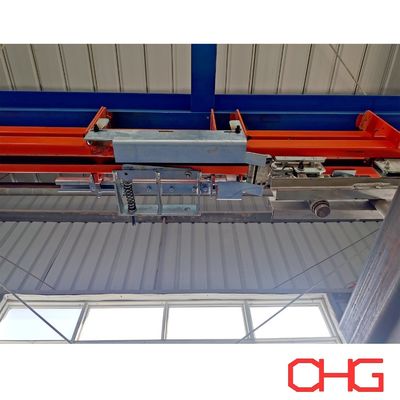

Dual-Track Power & Free Design

The system combines a powered track with a free track, allowing carriers to stop, accumulate, transfer, or bypass individual process stations without interrupting the overall production flow.

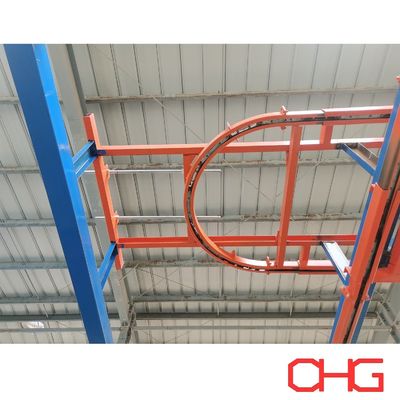

Overhead Material Handling

The overhead configuration frees valuable floor space while providing smooth and reliable transportation throughout the production line. It also simplifies integration with new or existing coating systems.

Customized Carrier Solutions

Carrier structures are individually designed according to:

• Workpiece dimensions
• Product weight
• Hanging orientation
• Coating process requirements

The system accommodates both lightweight components and heavy industrial parts.

Flexible Routing & Accumulation

Independent carrier control enables:

• Multiple loading and unloading stations
• Process buffering and accumulation
• Parallel production lines
• Flexible routing between different process stations

This significantly improves production scheduling efficiency.

Precision Motion Control

Advanced drive and control systems provide:

• Accurate carrier positioning
• Adjustable conveying speed
• Stable synchronization with coating equipment
• Reliable process automation

Comprehensive Safety Design

The system incorporates multiple safety features, including:

• Collision prevention
• Carrier position monitoring
• Emergency stop functions
• Operator protection measures

These features help ensure safe and reliable operation throughout the production process.

Typical Applications

The Power & Free conveyor system is widely used in automated surface finishing lines for:

• Automotive components
• Aerospace parts
• Industrial equipment
• Household appliances
• Steel fabrications
• Metal furniture
• General metal finishing

System Advantages

Flexible Production

Suitable for both:

• Low-volume, high-mix manufacturing
• High-volume continuous production

Optimized Material Flow

Independent carrier movement minimizes production bottlenecks, shortens handling time, and improves overall workflow efficiency.

High Process Compatibility

The conveyor system can be integrated with various process equipment, including:

• Spray pretreatment systems
• Powder coating booths
• Liquid painting booths
• Drying ovens
• Curing ovens
• Cooling zones
• Inspection stations

Fully Customizable Design

Each conveyor system is engineered according to:

• Workpiece size and weight
• Required production capacity
• Factory layout
• Process sequence
• Automation level

Technical Specifications

Custom Engineering Services

Every Power & Free conveyor system is custom-designed to match your production requirements. Our engineering team can provide a complete solution based on:

• Workpiece dimensions and weight
• Required production capacity
• Coating process
• Plant layout
• Automation requirements
• Future expansion plans

Contact us today to receive a customized technical proposal and discover how our Power & Free conveyor system can improve production efficiency, process flexibility, and long-term operational reliability.
