Fully Automated E Coating Line for Automotive Aluminum Components Surface Treatment and Electrophoretic Coating Process

Fully Automated Automotive Aluminum Anodizing & Electrophoretic Coating Line

Integrated Surface Treatment Solution for Automotive Aluminum Components

This fully automated anodizing and electrophoretic coating (E-coating) production line is engineered for the surface treatment of automotive aluminum components. By integrating anodizing, electrolytic coloring, electrophoretic coating, sealing, and curing into one continuous production system, the line delivers outstanding corrosion resistance, consistent surface quality, and long-term durability required for demanding automotive applications.

The system adopts a continuous multi-tank immersion process combined with an intelligent automatic transfer system, enabling stable, high-capacity production from loading and pretreatment to final curing and unloading. Designed for high-volume manufacturing, it ensures reliable process control, excellent production efficiency, and consistent coating performance.

Complete Surface Treatment Process

The production line integrates a complete automated surface finishing process, including:

Degreasing

↓

Ultrasonic Cleaning

↓

Alkaline Etching

↓

Chemical or Electro Polishing

↓

Neutralization

↓

Multi-stage Rinsing

↓

Anodizing

↓

Electrolytic Coloring

↓

Electrophoretic Coating (E-Coating)

↓

Sealing

↓

Drying

↓

Curing

Each processing stage is precisely controlled to ensure excellent substrate preparation, stable oxide film formation, and uniform coating quality throughout the entire production cycle.

High-Precision Anodizing System

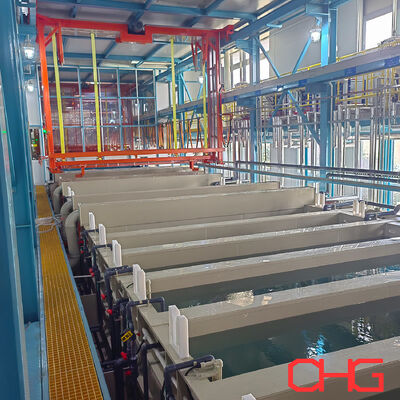

The anodizing section is equipped with multiple high-capacity anodizing tanks, each with an effective volume of approximately 4,300 liters. The system incorporates:

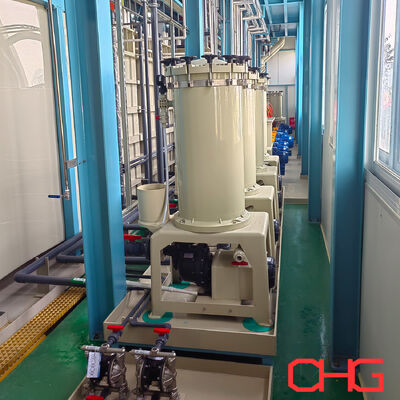

• High-efficiency filtration and circulation systems

• PVDF chemical circulation pumps

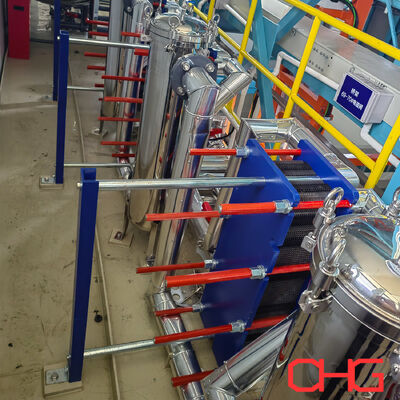

• Plate heat exchangers

• Industrial cooling units

• Automatic temperature control systems

These components provide precise electrolyte temperature control and continuous solution circulation, ensuring uniform oxide film formation, consistent anodizing quality, and excellent surface appearance.

The line also supports electrolytic coloring and other immersion finishing processes, allowing manufacturers to achieve different decorative and functional surface finishes according to product requirements.

Integrated Electrophoretic Coating System

Following anodizing, the workpieces enter a fully integrated electrophoretic coating (E-coating) section, providing an additional protective layer with excellent coating uniformity and long-term corrosion resistance.

The system offers:

• Uniform coating thickness

• Excellent edge coverage

• Strong coating adhesion

• Outstanding corrosion protection

• Enhanced weather resistance

• Long-term surface durability

To ensure stable coating quality and high paint utilization efficiency, the E-coating section is equipped with:

• Ultrafiltration (UF) systems

• Paint refining systems

• Paint recovery systems

• Electrophoretic coating tanks

• High-efficiency curing ovens

This integrated configuration minimizes paint loss, improves coating consistency, and reduces operating costs.

Advanced Sealing Technology

To maximize the protective performance of the anodized surface, the production line supports multiple sealing technologies, including:

• Cold sealing

• Medium-temperature sealing

• Hot sealing

Combined with multi-stage deionized water rinsing, these sealing processes significantly improve corrosion resistance, coating density, contamination resistance, and long-term durability.

After sealing, the products pass through drying and curing systems to ensure stable coating performance and an excellent finished appearance.

Water Treatment & Environmental Protection

The production line incorporates a comprehensive water treatment and recycling system designed to improve sustainability while reducing operating costs.

The system includes:

• Pure water generation equipment

• Quartz sand filtration systems

• Activated carbon filtration systems

• Ultrafiltration equipment

• Water recovery and refining systems

Separate wastewater collection systems are provided for:

• Acidic wastewater

• Alkaline wastewater

• Fluoride-containing wastewater

• Electrophoretic coating wastewater

By integrating water recycling and classified wastewater management, the system supports environmentally responsible manufacturing and helps customers comply with stringent automotive industry environmental standards.

Industrial-Grade Equipment Configuration

To ensure reliable long-term operation, the production line utilizes high-performance industrial equipment, including:

• 30–40 T/H filtration systems

• PVDF circulation pumps

• Plate heat exchangers

• Industrial cooling systems

• Centralized electrical control systems

• Automated transfer mechanisms

The production layout is further optimized with:

• Buffer stations

• Transfer carts

• Maintenance platforms

• Operator access walkways

This configuration improves production efficiency, simplifies equipment maintenance, and enhances overall plant management.

Key Features

Fully Automated Production

An intelligent control system ensures stable operation, reduced manual intervention, and consistent processing quality throughout the entire production cycle.

Complete Integrated Process

Pretreatment, anodizing, electrolytic coloring, electrophoretic coating, sealing, drying, and curing are combined into one continuous automated production line.

Automotive-Grade Surface Finishing

Engineered to meet the stringent requirements of the automotive industry, delivering excellent corrosion resistance, uniform coating quality, and long-term durability.

Precision Process Control

Advanced filtration, cooling, circulation, and temperature control systems ensure stable processing conditions and consistent anodizing performance.

High-Efficiency Electrophoretic Coating

Integrated UF, refining, and recovery systems maximize paint utilization while minimizing waste and operating costs.

Flexible Surface Finishing

Supports multiple coloring and sealing technologies to satisfy a wide range of decorative and functional surface treatment requirements.

Water-Saving & Environmentally Friendly

Integrated water purification, recycling, and wastewater management systems reduce water consumption and support sustainable manufacturing.

Optimized Plant Layout

Automated transfer systems, maintenance-friendly equipment arrangement, and efficient logistics design improve productivity and simplify plant operation.

Customized Engineering Solutions

Every anodizing and electrophoretic coating production line is engineered according to the customer's specific requirements, including workpiece dimensions, production capacity, surface treatment specifications, automation level, and factory layout.

Our engineering team provides complete turnkey solutions—from process design and equipment manufacturing to installation, commissioning, and technical support—to ensure reliable operation and long-term production performance.

Contact us to discuss your project and receive a customized technical proposal for your automotive aluminum surface treatment line.
