Robot Polish Equipment and Customized Technical Data for Advanced Powder Coating Production Line of Carbon Steel Sheet

Powder Coating Production Line for Carbon Steel Cabinet Components

Designed for Carbon Steel Cabinet Manufacturing

This automatic powder coating production line is specially designed for coating carbon steel cabinet components, including cabinet bodies, door panels, and other fabricated sheet metal parts. The system combines automated material handling, surface preparation, electrostatic powder coating, and curing to deliver high coating quality, excellent corrosion resistance, and reliable production efficiency.

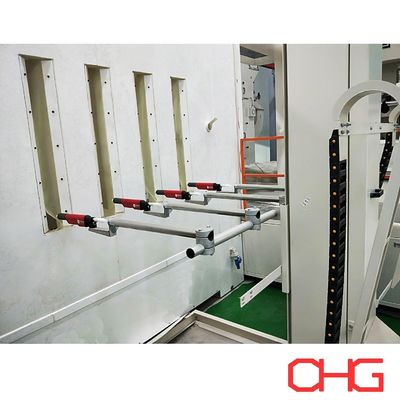

The spray booth is manufactured from high-quality PVC material, providing outstanding corrosion resistance and long service life. Automatic electrostatic spraying is combined with manual touch-up stations to ensure complete coating coverage on complex geometries, corners, and recessed areas.

Production Line Configuration

The production line incorporates multiple automated processing stations, including:

• Robotic weld seam grinding

• Manual surface finishing

• Surface pretreatment

• Putty application and sanding

• Electrostatic powder coating

• High-temperature curing

• Cooling

• Final assembly assistance

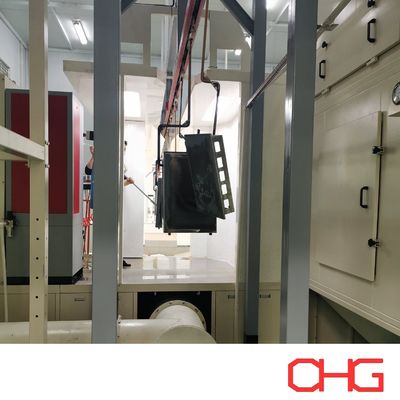

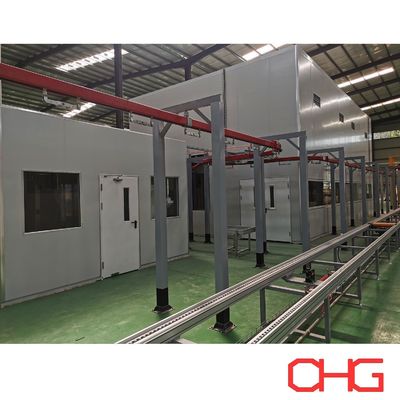

The pretreatment section utilizes a skid-type ground conveyor for stable handling of heavy workpieces, while the coating section adopts an overhead conveyor system operating at a constant speed to ensure consistent coating quality and production efficiency.

Typical Production Process

Manipulator Loading

↓

Robotic & Manual Grinding

↓

Phosphating Solution Treatment

↓

Drying (40–50°C)

↓

Manual Putty Application

↓

Putty Drying

↓

Putty Sanding

↓

Buffer Accumulation

↓

Mechanical Transfer

↓

Dust Removal

↓

Automatic Powder Coating + Manual Touch-Up

↓

Curing (200°C, 18 min)

↓

Air Cooling

↓

Caster Installation

↓

AGV-Assisted Unloading

Key Features

• Hybrid Automatic & Manual Powder Coating

Automatic spray guns provide consistent coating quality, while manual touch-up stations ensure complete coverage of edges, corners, and difficult-to-reach areas.

• Dual Conveyor Configuration

The combination of a skid conveyor for pretreatment and an overhead conveyor for powder coating improves material handling efficiency and production flexibility.

• Automated Surface Preparation

Robotic grinding and carefully controlled surface finishing improve coating adhesion and reduce manual labor.

• Stable Powder Curing

The curing oven operates at approximately 200°C for 18 minutes, producing a durable, smooth, and impact-resistant powder coating.

• Flexible Production

The system can accommodate cabinet components of different dimensions and supports various production capacities according to customer requirements.

Powder Coating Process

1. Surface Preparation: Grinding, cleaning, and dust removal eliminate welding residues, grease, and contaminants to ensure excellent coating adhesion.
2. Pretreatment: Chemical pretreatment prepares the carbon steel surface and improves corrosion resistance before powder application.
3. Drying: Residual moisture is removed before coating to ensure a clean, dry surface.
4. Electrostatic Powder Coating: Electrostatically charged powder is applied by automatic spray guns with manual touch-up where required, ensuring uniform film thickness.
5. Curing: The coated workpieces pass through a curing oven, where the powder melts, flows, and chemically cross-links to form a durable protective coating.
6. Cooling: Controlled cooling stabilizes the coating and prepares the workpieces for downstream assembly.
7. Quality Inspection: Finished components are inspected for coating thickness, appearance, adhesion, and overall coating quality before shipment.
