Powder Coating Machinery Pretreatment Spray System with Customization Option

Metal Surface Pretreatment Spray System for Powder Coating Lines

Reliable Surface Preparation for High-Quality Powder Coating

The metal surface pretreatment spray system is designed to clean and chemically prepare workpieces before powder coating. By removing contaminants and creating a stable conversion layer, the system improves coating adhesion, enhances corrosion resistance, and ensures long-term coating performance.

Suitable for steel, galvanized steel, aluminum, and other metal substrates, the system can be configured with different process stages to meet various coating requirements.

Efficient Spray Pretreatment Process

The spray pretreatment system performs a series of cleaning and chemical treatment operations to prepare the workpiece surface before coating. Depending on the application, the process may include:

• Removal of oil, grease, and machining residues

• Surface cleaning and rinsing

• Phosphating or conversion coating

• Final rinsing and drying

Each stage is designed to provide a clean, uniform surface that promotes strong powder coating adhesion and consistent finishing quality.

Modular System Configuration

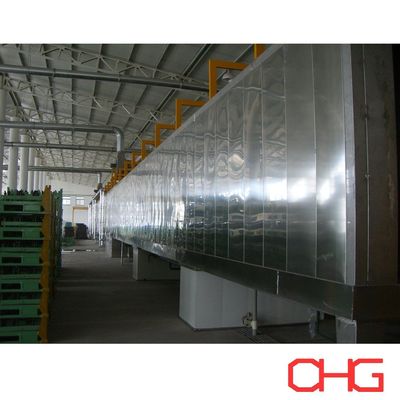

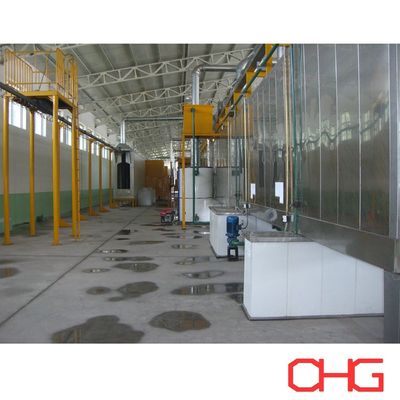

The pretreatment system consists of multiple spray chambers arranged according to the required process sequence. Each section can be equipped with:

• Chemical solution tanks

• High-efficiency circulation pumps

• Precision spray nozzles

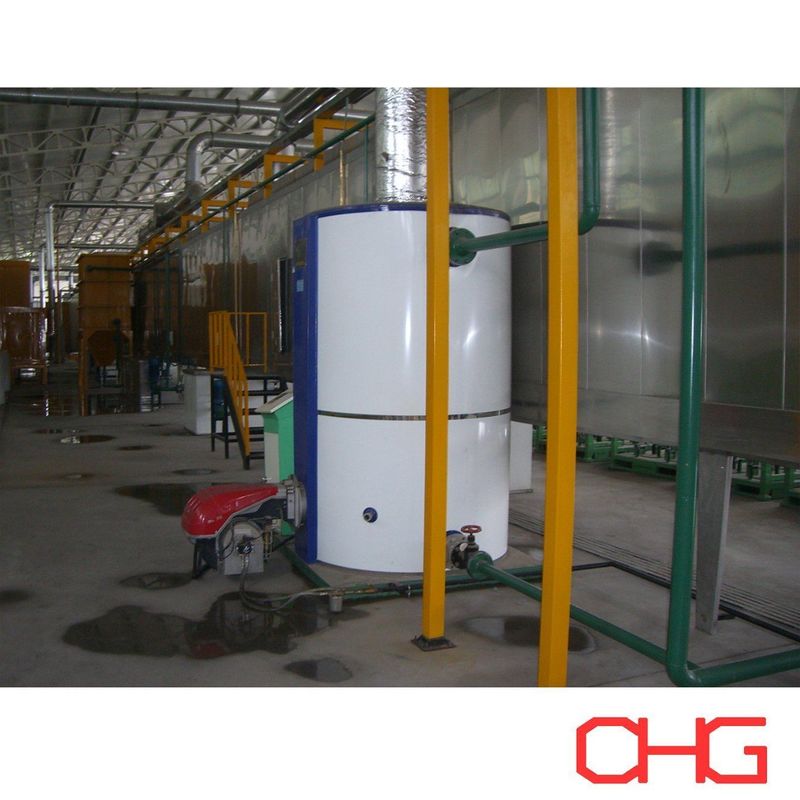

• Heating systems (optional)

• Filtration devices

• Inspection and maintenance access

The modular design allows easy expansion or modification to suit different production requirements.

Typical Pretreatment Process

• Degreasing: A heated cleaning solution is sprayed onto the workpiece to remove oil, grease, dust, and other contaminants, providing a clean surface for subsequent treatment.
• Water Rinsing: After chemical treatment, clean water removes residual solution and prevents contamination between process stages.
• Phosphating / Conversion Coating: A phosphate or conversion coating is formed on the metal surface to improve powder coating adhesion and increase corrosion resistance.
• Surface Conditioning (Optional): For certain applications, a conditioning stage may be added to optimize the crystal structure of the conversion coating and improve coating performance.
• Drying: The workpieces pass through a drying oven to remove residual moisture before entering the powder coating booth, ensuring stable electrostatic spraying and high coating quality.

Advantages

• Improves powder coating adhesion

• Enhances corrosion resistance

• Provides consistent surface preparation

• Reduces coating defects

• Modular design for flexible configuration

• Suitable for various metal substrates

• Easy integration with new or existing powder coating lines

Customized Engineering Solutions

Every pretreatment system is designed according to the customer's production requirements. We can customize:

• Process sequence

• Number of spray stages

• Chemical treatment system

• Heating method

• Conveyor type

• Equipment dimensions

• Production capacity

• Factory layout

Our engineering team can provide a complete pretreatment solution that integrates seamlessly with your powder coating line while meeting your specific production and quality requirements.
