Overhead Conveyor System Powder Coating Line for Customized Sheet Metal Parts

Efficient Coating Solution for Sheet Metal Enclosures

This powder coating production line is specifically designed for coating sheet metal components used in electrical control cabinet chassis and enclosures. Suitable for parts of various sizes, shapes, and configurations, the system delivers consistent coating quality, high production efficiency, and reliable operation for modern sheet metal fabrication.

The spray booth is manufactured from high-quality PP (polypropylene), providing excellent chemical resistance, corrosion protection, and long service life. The coating process combines automatic electrostatic powder spraying with manual touch-up spraying, ensuring complete coverage of flat surfaces, corners, edges, and complex profiles.

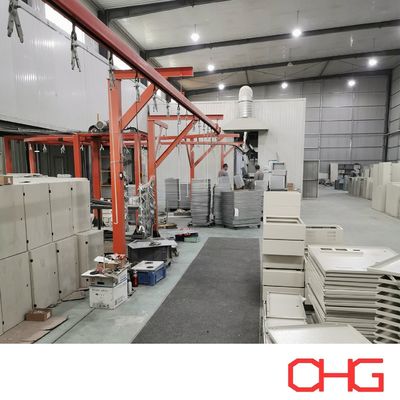

Workpieces are transported by a monorail overhead conveyor system, enabling stable conveying, efficient space utilization, and continuous production throughout the coating process.

Key Features

• Designed for electrical control cabinet chassis and sheet metal enclosures

• Suitable for workpieces with different sizes and geometries

• PP powder spray booth with excellent corrosion resistance

• Hybrid spraying system combining automatic and manual application

• Monorail overhead conveyor for smooth and reliable transportation

• High coating efficiency with stable production performance

• Customizable process layout and production capacity

Production Line Workflow

Manual Loading

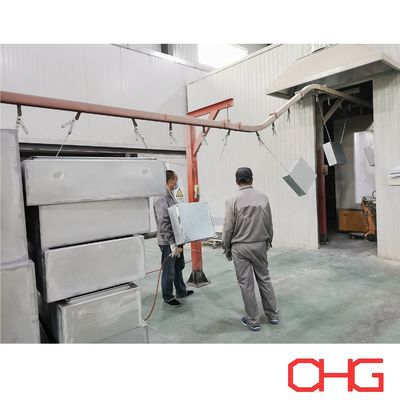

Workpieces are suspended on carriers, and the elevator assists operators with ergonomic loading before entering the production line.

Spray Pretreatment

The conveyor indexes workpieces through each pretreatment station, where they stop briefly for chemical spraying and rinsing. This staged process thoroughly removes oil, dust, and other contaminants while preparing the surface for superior coating adhesion.

Drying

Following pretreatment, the workpieces enter the drying section to remove residual moisture completely, creating the ideal surface condition for powder application.

Automatic Powder Spraying

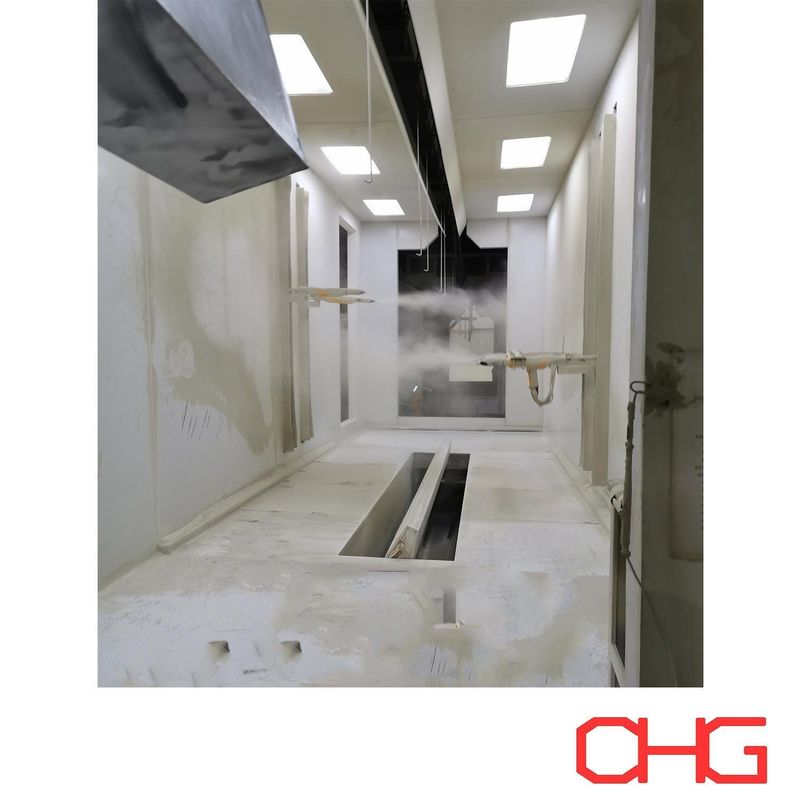

The workpieces travel continuously through the automatic powder booth at a conveyor speed of approximately 1.0–1.5 m/min. Automatic electrostatic spray guns apply a uniform powder coating, while manual operators can perform supplementary spraying when necessary to ensure complete coverage.

Powder Curing

After spraying, the coated parts enter the curing oven where controlled heating melts and chemically cross-links the powder into a durable, uniform coating film with excellent adhesion and corrosion resistance.

Cooling

The coated components are naturally cooled to stabilize the coating layer before downstream handling.

Unloading & Transfer

After cooling, the elevator assists operators with unloading, and the finished products are transferred to the assembly, inspection, or packaging area.

Powder Coating Process

1. Surface Preparation: Sheet metal components are cleaned to remove grease, dust, welding residues, and other contaminants, providing a clean surface for optimal coating performance.

2. Chemical Pretreatment: The pretreatment system improves corrosion resistance and coating adhesion through processes such as:

• Degreasing

• Water rinsing

• Phosphating

• Chromate or chrome-free conversion coating

• Final rinsing

The exact process can be customized according to substrate material and coating requirements.

3. Drying: The workpieces pass through a drying oven to eliminate residual moisture before entering the powder coating booth.

4. Electrostatic Powder Application: Electrostatically charged powder is sprayed onto grounded workpieces using automatic spray guns. Manual touch-up spraying ensures consistent coating thickness on corners, edges, and recessed areas.

5. Powder Curing: Inside the curing oven, the powder coating melts, flows, and cross-links into a smooth, durable protective film that offers excellent mechanical strength and corrosion resistance.

6. Cooling: Controlled cooling stabilizes the coating and preserves its appearance and performance.

7. Quality Inspection: Every finished component undergoes comprehensive inspection, including:

• Coating thickness measurement

• Surface appearance inspection

• Adhesion testing

• Overall coating quality verification

Only qualified products proceed to final assembly or shipment.

Customized Engineering Solutions

Every powder coating production line is engineered according to the customer's specific manufacturing requirements. We can customize the complete system based on:

• Workpiece dimensions and weight

• Production capacity

• Conveyor configuration

• Pretreatment process

• Spray booth design

• Degree of automation

• Factory layout and available space

Contact us today for a customized technical proposal. Our engineering team will provide a complete powder coating solution designed to maximize coating quality, production efficiency, and long-term operational reliability for your electrical control cabinet manufacturing.
