Top Powder Coating Production Line for Profiles with Electrostatic Spray Guns

Customized Automatic Powder Coating Line with Electrostatic Spray Guns and Reciprocator

Efficient Powder Coating Solution for Aluminum Profiles

This automatic powder coating production line is designed for aluminum profiles with various cross-sections, lengths, and dimensions. Combining electrostatic spray guns with an automatic reciprocator system, the line delivers consistent coating quality, high transfer efficiency, and reliable production performance.

The system utilizes an overhead conveyor for continuous material handling, while loading and unloading are performed manually to provide greater flexibility when processing different profile types.

Automated Powder Application

The coating section integrates automatic reciprocators with electrostatic powder spray guns to achieve uniform powder distribution across the entire workpiece.

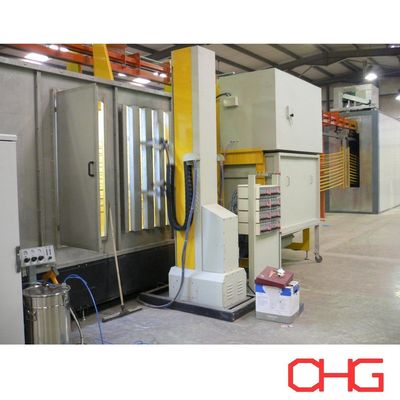

Automatic Reciprocator System

The reciprocator provides precise vertical movement for the spray guns, ensuring:

• Consistent coating thickness

• Stable spray patterns

• Reduced manual intervention

• Improved powder transfer efficiency

• Uniform coverage on profiles of different heights

The reciprocating speed and stroke can be adjusted according to product dimensions and production requirements.

Electrostatic Powder Spray Guns

High-performance electrostatic spray guns generate an even powder cloud that adheres efficiently to grounded aluminum profiles, providing:

• Excellent edge coverage

• High powder utilization

• Reduced overspray

• Stable coating quality

• Smooth surface finish

Manual touch-up stations can also be incorporated to coat recessed areas or products with complex geometries.

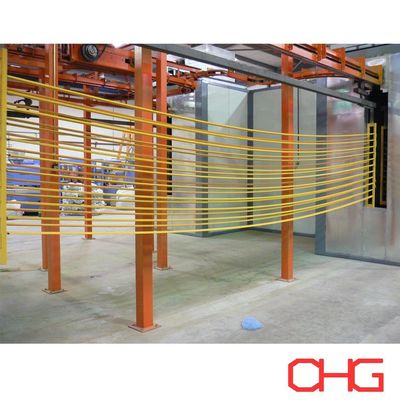

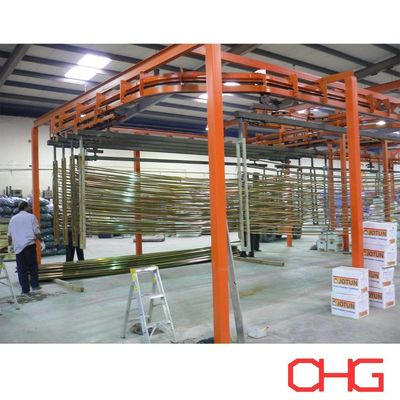

Material Handling System

An overhead conveyor transports workpieces continuously through every stage of production.

The system offers:

• Stable workpiece transportation

• Efficient use of factory floor space

• Flexible production scheduling

• Easy integration with pretreatment and curing equipment

Manual loading and unloading allow operators to accommodate aluminum profiles with different sizes and production batches.

Powder Coating Process

• Surface Preparation

The process begins with cleaning the aluminum profiles to remove oil, dust, and surface contaminants that could affect coating adhesion.

• Chemical Pretreatment

Pretreatment may include degreasing, rinsing, phosphating, or chromate-free conversion coating to improve corrosion resistance and create an ideal surface for powder application.

• Drying

After pretreatment, workpieces pass through a drying oven to remove residual moisture before entering the spray booth.

• Electrostatic Powder Coating

The reciprocator-driven spray guns automatically apply powder evenly across the profile surfaces. Where necessary, manual operators perform supplementary spraying to ensure complete coverage.

• Powder Curing

The coated profiles enter the curing oven, where the powder melts and chemically cross-links to form a durable, impact-resistant, and attractive finish.

• Cooling

Controlled cooling stabilizes the coating and prepares the finished products for inspection and packaging.

• Quality Inspection

Each workpiece is inspected for coating thickness, surface appearance, adhesion, color consistency, and overall finish quality before shipment.

Customized Engineering Solutions

Every powder coating line is designed around your production requirements. We can customize the complete system according to:

• Aluminum profile dimensions

• Production capacity

• Conveyor configuration

• Spray booth layout

• Number of automatic spray guns

• Reciprocator quantity and stroke

• Powder recovery system

• Curing oven specifications

• Factory layout and available space

Whether you require a compact manual-assisted line or a fully automated powder coating system, our engineering team can provide a customized solution that maximizes coating quality, production efficiency, and long-term operating reliability.

Contact us today for a customized technical proposal and complete powder coating solution for your aluminum profile production.
