PLC Control Unit Customization Carbon Steel Structural Parts Coating Machine Painting Line for Customized Frames

Structural Steel Liquid Painting Line with Automated Material Handling

Heavy-Duty Liquid Painting Solution for Structural Steel Fabrication

This automated liquid painting line is developed for the surface treatment of carbon steel structural components, delivering reliable coating quality for heavy-duty industrial applications. Designed to process medium and large fabricated parts, the system combines efficient material handling with a flexible painting process, making it suitable for industries such as construction machinery, transportation equipment, steel structures, energy, and general manufacturing.

Every production line is engineered according to the customer's workpiece dimensions, production targets, paint specifications, and plant layout to ensure maximum operating efficiency.

Complete Coating System

The production line integrates all major coating operations into a continuous workflow, including:

• Workpiece loading

• Immersion painting

• Paint draining

• Drying

• Cooling

• Finished product unloading

Each process is coordinated through an automated material handling system to minimize manual intervention while maintaining stable production performance.

Immersion Painting Technology

The system adopts an inclined basket dipping process that allows liquid coating material to reach all exposed surfaces of the workpiece. This method is particularly effective for structural steel components with welded joints, internal cavities, and irregular geometries where conventional spray coating may provide limited coverage.

Typical process parameters include:

Process settings can be adjusted to accommodate different coating materials and production requirements.

Automated Material Handling

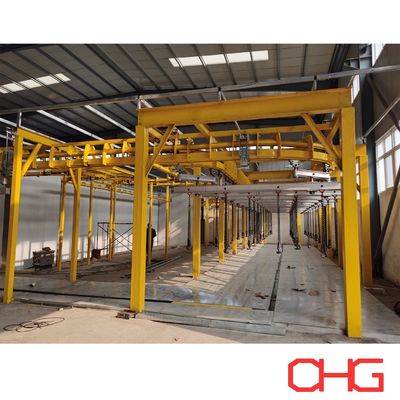

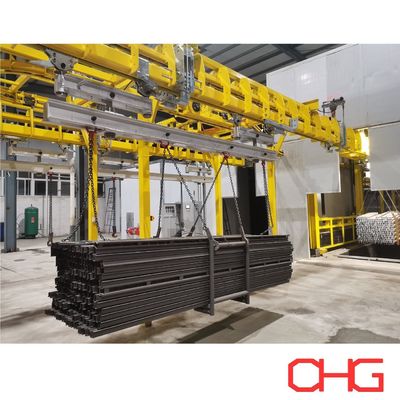

A Power & Free overhead conveyor system transports workpieces efficiently throughout the production line while allowing independent carrier movement and accumulation between processing stations.

System capabilities include:

• Maximum carrier capacity up to 2,000 kg

• Adjustable conveyor speed from 0.5 to 3.0 m/min

• Flexible accumulation and buffering

• Forklift-assisted loading and unloading

• Stable transportation for oversized structural components

The conveyor configuration improves production flexibility while supporting continuous operation and future line expansion.

Production Advantages

The immersion coating process delivers complete paint coverage and consistent film thickness, providing excellent protection against corrosion, moisture, and harsh operating environments.

Combined with automated material handling and energy-efficient drying equipment, the production line offers:

• Uniform coating quality

• Improved corrosion resistance

• Higher production throughput

• Reduced labor intensity

• Optimized paint utilization

• Lower operating costs

• Stable and repeatable production performance

Custom-Designed for Your Production

No two structural steel products are exactly alike. Our engineering team designs every liquid painting line according to your manufacturing requirements, including:

• Workpiece dimensions and weight

• Required production capacity

• Paint system and coating specifications

• Conveyor configuration

• Drying technology

• Factory layout

• Desired level of automation

Whether your project requires a compact standalone painting system or a fully integrated heavy-duty coating line, we can provide a complete turnkey solution tailored to your production objectives.

Contact us today to receive a customized technical proposal and discover the most suitable liquid painting solution for your structural steel manufacturing process.
