Automatic Powder Coating Line Combining Manual Loading and Overhead Conveyor System for Processing of Aluminum Profiles

Efficient Powder Coating Solution for Aluminum Extrusions

This automatic powder coating line is specifically designed for aluminum profiles and extruded aluminum products of various dimensions and cross-sectional shapes. Combining efficient material handling with precision powder application, the system delivers outstanding coating quality, reliable operation, and high production efficiency for architectural, industrial, and decorative aluminum products.

An overhead conveyor system transports workpieces smoothly through each production stage, while manual loading and unloading provide the flexibility needed to accommodate different profile lengths, shapes, and production batches.

Integrated Production Process

The production line combines all essential coating stages into one continuous operation, including:

• Surface cleaning and pretreatment

• Chemical conversion treatment

• Drying

• Automatic electrostatic powder spraying

• Powder curing

• Cooling

• Final quality inspection

Each section is engineered to maximize coating consistency, production efficiency, and equipment reliability.

Flexible Material Handling

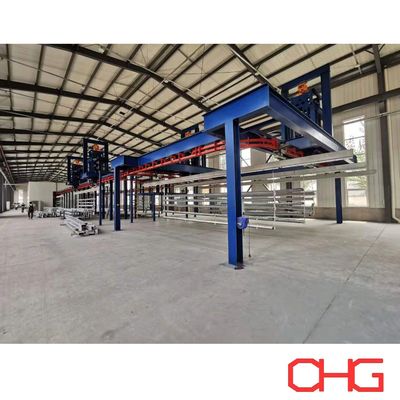

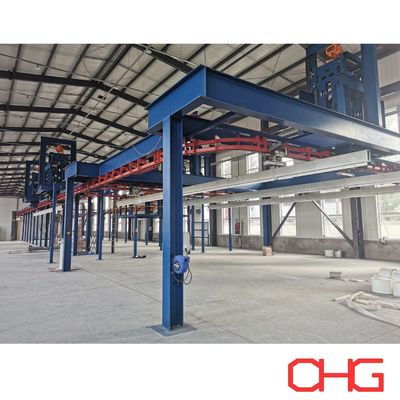

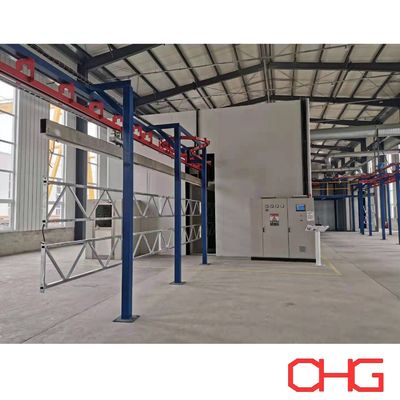

The overhead conveyor system ensures stable transportation throughout the entire production process while optimizing factory floor space.

Key advantages include:

• Smooth and continuous workpiece movement

• Suitable for aluminum profiles of various lengths

• Flexible production scheduling

• Reduced manual handling

• Improved production efficiency

High-Quality Powder Coating

The electrostatic powder coating system provides uniform powder distribution and excellent transfer efficiency, producing smooth, durable finishes with superior adhesion and corrosion resistance.

The line can be configured with automatic spray guns, manual touch-up stations, or a combination of both to meet different production requirements and coating standards.

Reliable Curing Performance

After powder application, coated profiles enter a high-efficiency curing oven where the powder melts, flows, and chemically cross-links to form a tough, wear-resistant coating. Carefully controlled curing parameters ensure excellent color consistency, surface appearance, and long-term durability.

Typical Applications

This production line is suitable for a wide range of aluminum profile products, including:

• Architectural aluminum profiles

• Window and door systems

• Curtain wall components

• Industrial aluminum extrusions

• Furniture profiles

• Decorative aluminum products

• Solar panel frame profiles

• Transportation components

Customized Engineering Solutions

Every powder coating line is individually engineered to match your product specifications, production capacity, coating requirements, and available factory space.

Our customization services include:

• Conveyor system configuration

• Pretreatment process selection

• Spray booth design

• Powder recovery system

• Heating method selection

• Automation level

• Factory layout optimization

Whether you require a compact production line or a fully automated high-capacity system, our engineering team can provide a complete turnkey solution tailored to your manufacturing needs.

Contact us today for a customized technical proposal and discover the ideal powder coating solution for your aluminum profile production.
