Customization MDF Powder Coating Production Machinery Line for Wooden/Metal Board Customization Option and Customization

Specialized Powder Coating Solution for MDF Panels and Metal Components

This powder coating production line is specially engineered for medium-density fiberboard (MDF) products and selected metal components. By combining automated electrostatic spraying with manual touch-up capability, the system delivers excellent coating consistency while maintaining the flexibility required for a wide range of product designs and production volumes.

The line utilizes a Power & Free overhead conveyor system to ensure efficient material flow throughout the process, while manual loading and unloading provide flexibility for handling different workpiece sizes and configurations.

Production Process

The system follows a carefully controlled low-temperature powder coating process suitable for heat-sensitive substrates such as MDF.

Typical Process Flow: Manual Loading → Preheating → Automatic Powder Coating → Optional Manual Touch-Up → Low-Temperature Curing → Air Cooling → Manual Unloading

Standard Operating Parameters

Process parameters can be adjusted according to substrate type, coating material, and production requirements.

Integrated Coating Technology

• Automatic Powder Application

High-efficiency electrostatic spray guns provide uniform powder deposition across the workpiece surface, ensuring consistent film thickness and excellent appearance quality.

• Manual Touch-Up Capability

Dedicated manual coating stations allow operators to apply additional powder to edges, corners, grooves, and complex profiles where enhanced coverage may be required.

The combination of automated and manual application ensures both production efficiency and superior coating quality.

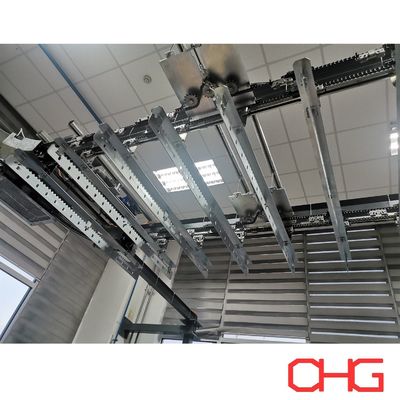

Power & Free Conveyor System

The production line incorporates a Power & Free overhead conveyor, offering flexible material handling and optimized production flow.

Conveyor Advantages:

• Independent carrier movement

• Workpiece accumulation capability

• Flexible production scheduling

• Improved throughput efficiency

• Easy integration with future production expansion

This system enables smooth transportation between process stages while reducing manual handling requirements.

Benefits of MDF Powder Coating

Compared with conventional liquid painting processes, powder coating provides several advantages for MDF furniture and decorative products:

• Superior Surface Finish: Produces a smooth, uniform, and high-quality decorative surface suitable for premium furniture applications.
• Environmentally Friendly Production: Powder coatings contain little or no VOC emissions and generate minimal waste compared with traditional solvent-based coatings.
• Improved Durability: The cured coating provides excellent resistance to abrasion, scratching, moisture, and everyday wear.

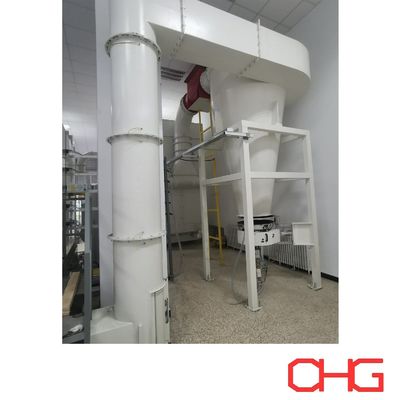

• Efficient Material Utilization: Overspray powder can be recovered and reused, helping reduce coating consumption and operating costs.
• Enhanced Design Flexibility: Suitable for flat panels, routed MDF parts, furniture components, cabinet doors, shelving products, and decorative architectural elements.

Quality Assurance

Throughout production, critical process parameters are monitored to ensure consistent coating performance. Finished products undergo inspection for:

• Coating thickness

• Surface appearance

• Adhesion performance

• Color consistency

• Overall finish quality

This ensures every coated component meets customer specifications and industry quality requirements.

Customized Engineering Solutions

Every powder coating line is designed according to the customer's specific products, production capacity, and factory conditions. We can customize:

• Workpiece dimensions

• Production throughput

• Conveyor configuration

• Spray booth design

• Oven specifications

• Automation level

• Factory layout integration

Contact our engineering team to receive a customized technical proposal and complete MDF powder coating solution tailored to your manufacturing requirements.
