Automotive Powder Coating Line Providing Stable Performance Multi Stage Pretreatment

Automated Powder Coating Line for Automotive Components

High-Efficiency Surface Finishing Solution for the Automotive Industry

This fully integrated powder coating line is designed to meet the demanding quality and productivity requirements of automotive component manufacturing. Combining advanced pretreatment technology, precision powder application, and intelligent process control, the system delivers outstanding coating performance, excellent corrosion protection, and reliable long-term operation.

The production line is suitable for a wide range of automotive parts manufactured from steel, galvanized steel, aluminum alloys, and other metal substrates. Its modular design allows flexible configuration according to product specifications, production capacity, and factory layout requirements.

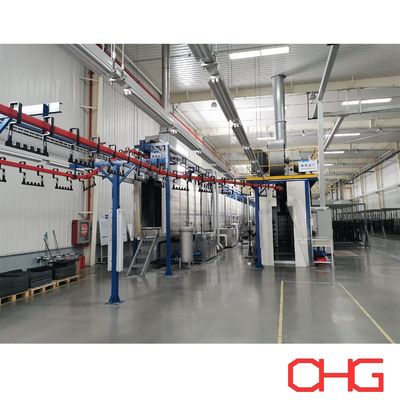

Complete Automated Processing System

The coating line incorporates all major production stages into a continuous workflow, including:

• Elevator-assisted loading

• Multi-stage chemical pretreatment

• Drying and cooling

• Powder coating application

• Curing process

• Forced cooling

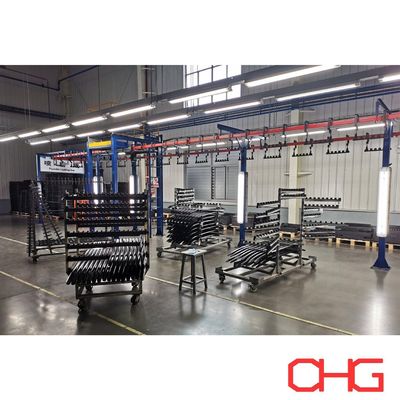

• Manual unloading and inspection

Each process section is engineered to work seamlessly with the next, ensuring smooth material flow and consistent coating quality throughout production.

Advanced Pretreatment Technology

Effective surface preparation is the foundation of a durable powder coating system. The pretreatment section can be configured with multiple treatment stages, including:

• Pre-degreasing

• Degreasing

• Water rinsing

• Conversion coating treatment

• Air blow-off and drying

This process removes contaminants, improves surface activity, and significantly enhances coating adhesion and corrosion resistance.

Precision Powder Application

The powder coating area combines automated spraying equipment with dedicated manual touch-up stations.

• Automatic Spraying: High-performance electrostatic spray guns provide consistent powder distribution and uniform film thickness across large production volumes.
• Manual Touch-Up: Operators can perform additional coating on recessed areas, edges, and complex geometries to ensure complete coverage and superior finish quality.

This combination of automation and manual precision enables excellent coating results for both simple and intricate automotive components.

Durable Booth Construction

The spray booth system incorporates stainless steel and PVC construction materials to provide:

• Excellent corrosion resistance

• Long service life

• Easy maintenance

• Reliable performance in demanding industrial environments

The booth design also supports stable airflow management and efficient powder containment.

Intelligent Environmental Control

To achieve optimal coating quality, the powder application area is maintained under controlled temperature and humidity conditions. This helps ensure:

• Stable powder charging performance

• Improved coating consistency

• Reduced coating defects

• Enhanced production reliability

High-Performance Curing System

Following powder application, coated components pass through a precisely controlled curing oven where the powder coating melts, levels, and chemically cross-links into a durable protective film.

The curing process provides:

• Strong adhesion

• Excellent impact resistance

• Superior corrosion protection

• Long-term durability

A forced cooling section follows curing to stabilize the coating and prepare parts for handling and inspection.

Key Advantages

Consistent Coating Quality

Automated process control and optimized equipment configuration ensure repeatable production results and uniform coating thickness.

High Production Efficiency

Continuous material flow and integrated automation reduce labor requirements while increasing throughput.

Superior Corrosion Protection

Advanced pretreatment and powder coating technologies provide long-lasting resistance to harsh operating environments.

Flexible Application Capability

Suitable for a wide range of automotive components manufactured from different materials and featuring various geometries.

Reliable Industrial Operation

Industrial-grade equipment, durable construction materials, and intelligent control systems ensure stable long-term performance.

Customized Engineering Solutions

Every automotive powder coating line can be engineered according to specific production requirements, including:

• Product dimensions and weight

• Production capacity targets

• Coating specifications

• Factory layout constraints

• Automation level requirements

• Environmental and energy-efficiency objectives

Contact our engineering team to receive a customized technical proposal and discover how our automotive powder coating solutions can improve product quality, production efficiency, and operational reliability.
