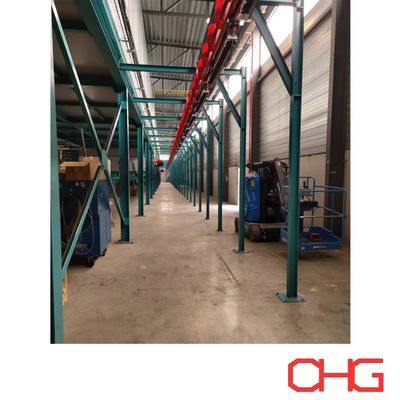

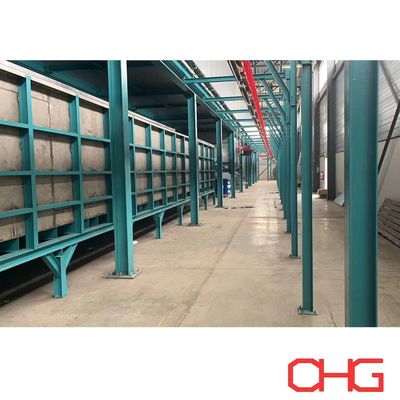

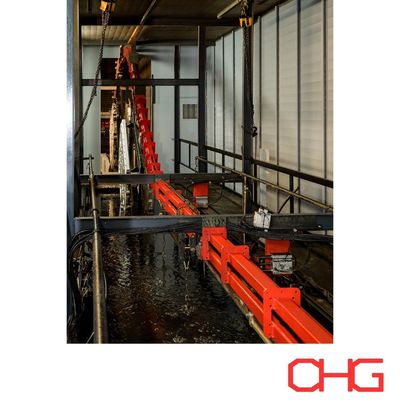

Professional Electrophoretic Equipment E-Coating Production Line Coating Machine KTL for E-Coating

Electrophoretic Coating Line for EV Battery Enclosures

High-Performance E-Coating Solution for Automotive Applications

This fully automated electrophoretic coating line is designed for automotive battery enclosures, battery trays, and structural battery housing components. Utilizing advanced cathodic electrophoretic deposition (CED) technology, the system delivers uniform coating coverage, outstanding corrosion protection, and consistent coating quality across complex geometries.

Developed for the stringent requirements of the automotive and new energy vehicle industries, the line provides reliable long-term protection while supporting efficient, high-volume manufacturing.

Complete Turnkey Engineering Solution

• Customized Process Design: Every production line is engineered according to the customer's specific products, production targets, and factory conditions. Our engineering team conducts a comprehensive evaluation of process requirements and develops a customized layout that optimizes productivity, material flow, and equipment accessibility.

Through detailed engineering drawings and design verification, every stage of the project is carefully planned to ensure smooth integration into the customer's facility.

• Precision Manufacturing: Equipment fabrication is carried out under strict quality management procedures to ensure reliability and long service life. All major components are manufactured and inspected according to approved technical specifications, ensuring consistent quality throughout the entire system.

Regular project updates are provided during production to maintain transparency and facilitate efficient project coordination.

• Installation and Commissioning Support

Our experienced technical team provides complete installation supervision, system commissioning, and production startup support. Comprehensive operator training is also included, covering:

• • Equipment operation

  • Process control

  • Routine maintenance

  • Troubleshooting procedures

  • Safety management

This ensures a smooth transition from installation to full-scale production.

Process Advantages

• Uniform Film Build

Electrophoretic deposition enables coating material to be evenly distributed over the entire workpiece surface, including internal cavities, recessed sections, corners, and other difficult-to-coat areas. The result is a smooth and highly consistent coating film.

• Excellent Corrosion Resistance

The coating forms a dense protective barrier that significantly improves resistance to moisture, chemicals, and corrosive environments. This makes the process particularly suitable for battery enclosure components that require long-term durability.

• High Production Efficiency

The automated immersion coating process supports continuous operation and large-scale production, helping manufacturers improve throughput while reducing manual labor requirements.

• Environmentally Friendly Technology

The water-based coating system minimizes environmental impact by reducing solvent usage and lowering emissions. The process is designed to comply with modern environmental and sustainability requirements.

• High Material Utilization

Because coating particles are attracted directly to the conductive substrate, material loss is minimized and paint utilization efficiency is significantly improved compared with conventional spray coating processes.

• Strong Adhesion Across Multiple Substrates

The process is suitable for a wide range of materials commonly used in automotive manufacturing, including:

• • Carbon steel

  • Aluminum alloys

  • Galvanized steel

  • Zinc-coated components

  • Selected engineered metal substrates

• Reliable Quality Control

Advanced monitoring systems continuously control critical process parameters, helping maintain stable coating thickness, appearance, and performance throughout production.

• Improved Workplace Safety

The waterborne coating process reduces the use of flammable solvents and contributes to a safer operating environment for production personnel.

Flexible Finishing Options

The system can be configured to produce various coating finishes based on customer requirements, including:

• Black electrophoretic coatings

• Colored E-coat finishes

• Clear protective coatings

• Functional and decorative surface treatments

This flexibility allows manufacturers to meet both performance and appearance requirements within a single production platform.

Designed for Long-Term Performance

By combining automated process control, efficient paint utilization, and proven corrosion protection technology, this electrophoretic coating line delivers a cost-effective solution for automotive battery enclosure production. The system is designed to support stable operation, consistent product quality, and long service life while meeting the demanding standards of the modern automotive industry.

Customization Available

We provide complete customization based on:

• Workpiece dimensions

• Production capacity

• Required coating performance

• Factory layout

• Automation requirements

• Environmental standards

Contact us to receive a tailored technical proposal and a complete electrophoretic coating solution designed specifically for your battery enclosure manufacturing project.
