Plating Coating System for Complete Electrophoretic E-Coating Production Line KTL

Fully Automated Electrophoretic Coating Line for Automotive Battery Enclosures

Designed for New Energy Vehicle Battery Components

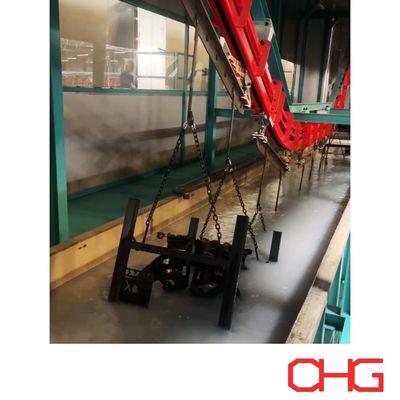

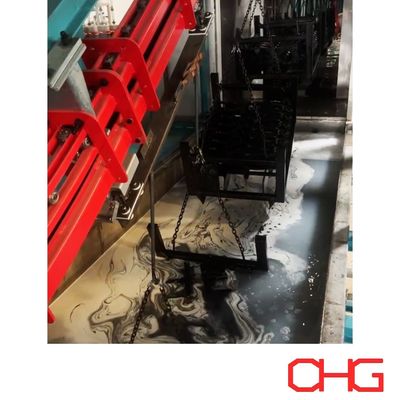

This advanced electrophoretic coating (E-coat) system is engineered specifically for automotive battery enclosures, battery trays, and structural battery housing components. By utilizing cathodic electrophoretic deposition technology, the line produces a uniform, highly adherent protective coating that delivers exceptional corrosion resistance, long-term durability, and reliable performance under demanding automotive operating conditions.

The system is compatible with a variety of substrates commonly used in electric vehicle battery manufacturing, including carbon steel, galvanized steel, aluminum alloys, and other engineered metallic materials.

Customized Engineering and Project Execution

• Tailor-Made System Design: Every project begins with a comprehensive evaluation of the customer's products, production targets, and facility conditions. Our engineering team develops a customized process layout that maximizes production efficiency while ensuring smooth material flow and convenient maintenance access. Through detailed 3D modeling, process simulations, and continuous design optimization, each system is configured to meet specific operational and quality requirements.
• Precision Manufacturing and Quality Assurance: All equipment is manufactured in strict accordance with approved engineering drawings and technical specifications. Multiple inspection procedures are implemented throughout fabrication to ensure dimensional accuracy, equipment reliability, and long service life. Regular project updates and quality reports are provided throughout the manufacturing phase, ensuring transparency and effective communication.
• Installation, Commissioning, and Training: Upon equipment delivery, our experienced technical team provides on-site installation supervision, commissioning support, and production startup assistance. Comprehensive training programs are provided for customer personnel, covering:

• • Equipment operation and process management
  • Preventive maintenance procedures
  • Troubleshooting and fault diagnosis
  • Process parameter optimization
  • Safety and environmental compliance

This ensures rapid production ramp-up and stable long-term operation.

• Efficient Project Delivery: With standardized project management and experienced execution teams, complete turnkey E-coating projects can typically be delivered and commissioned within a short implementation cycle, minimizing production startup time and accelerating return on investment.

Key Benefits of Electrophoretic Coating Technology

• Exceptional Coating Uniformity: Electrophoretic deposition provides consistent coating thickness across the entire component surface, including:
  • Deep recesses
  • Internal cavities
  • Sharp edges
  • Complex geometries

This results in superior appearance and reliable coating performance.

• Outstanding Corrosion Protection: The deposited coating forms a dense and highly adhesive protective film that significantly enhances resistance to:
  • Salt spray exposure
  • Humidity
  • Chemical attack
  • Outdoor environmental conditions

making it ideal for automotive battery applications.

• High Production Efficiency: The automated immersion coating process supports continuous high-volume production while reducing manual handling and improving process consistency.
• Environmentally Responsible Operation: Water-based coating formulations help reduce environmental impact by minimizing:

• • VOC emissions
  • Hazardous air pollutants
  • Solvent consumption

while supporting compliance with modern environmental standards.

• Efficient Paint Utilization: Unlike conventional spray painting, electrophoretic coating achieves extremely high transfer efficiency, reducing paint waste and lowering operating costs.
• Broad Material Compatibility: The system provides excellent adhesion on various substrates, including:

• • Carbon steel
  • Aluminum alloys
  • Galvanized steel
  • Zinc-coated materials
  • Selected engineered substrates
• Enhanced Workplace Safety: The waterborne coating process reduces reliance on flammable solvents, creating a safer production environment for operators and maintenance personnel.
• Stable Quality Control: Advanced automation continuously monitors critical process parameters, including:

• • Coating thickness
  • Voltage and current
  • Bath conductivity
  • Temperature
  • Surface appearance

ensuring consistent production quality across every batch.

• Long-Term Economic Benefits: Although E-coating systems require a higher initial investment than conventional coating methods, the combination of:
  • Reduced paint consumption
  • Lower labor requirements
  • Improved automation
  • Extended product service life
  • Reduced maintenance costs

provides substantial long-term savings.

Flexible Finishing Capabilities

The electrophoretic coating line can be configured to produce a variety of finish types, including:

• Black E-coat finishes
• Colored electrophoretic coatings
• Transparent protective coatings
• Decorative and functional specialty finishes

Customized Solutions Available

Every electrophoretic coating line can be tailored to your specific production requirements, including:

• Workpiece dimensions
• Production capacity
• Coating performance requirements
• Plant layout constraints
• Automation level
• Environmental compliance standards

Contact us to receive a customized technical proposal and complete turnkey E-coating solution for your automotive battery enclosure manufacturing project.
