Fully Automatic Aluminum Anodizing Production Line for Automotive Components

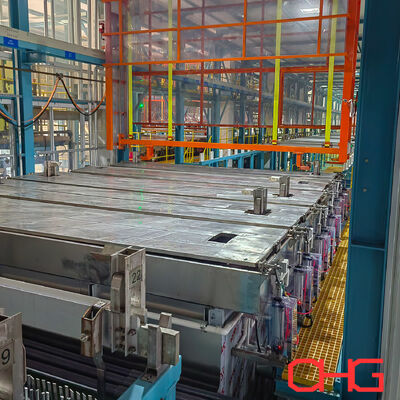

Our fully automatic aluminum anodizing production line is engineered for high-performance surface treatment of automotive components, delivering stable operation, high production efficiency, and consistent anodizing quality. The system adopts a continuous multi-tank processing structure integrated with an intelligent transfer mechanism, ensuring smooth workflow and reliable automation from loading to final unloading.

Designed for demanding automotive manufacturing standards, the line combines advanced anodizing technology with precision process control to achieve superior corrosion resistance, decorative appearance, and long-term surface durability.

Complete Anodizing Process Integration

The production line incorporates a full anodizing treatment sequence, including:

• Surface pre-treatment

• Degreasing

• Ultrasonic cleaning

• Alkaline etching

• Chemical or electro polishing

• Neutralization

• Multi-stage rinsing

• Anodizing

• Electrolytic coloring

• Sealing

• Drying

This integrated configuration ensures the aluminum substrate is thoroughly prepared before anodizing, resulting in uniform oxide film formation and high-quality finishing performance.

Advanced Anodizing Technology

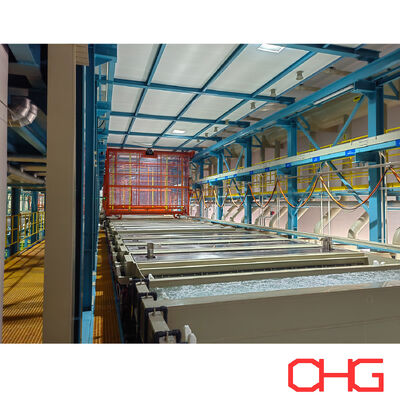

The anodizing section is equipped with large-capacity tanks of approximately 4300 liters each, combined with:

• High-efficiency circulation filtration systems

• Plate heat exchangers

• Industrial cooling equipment

• Precision temperature control systems

These components work together to maintain stable electrolyte conditions and accurate processing temperatures, ensuring consistent oxide layer thickness, improved surface uniformity, and reliable production stability.

The line also supports various finishing options, including electrolytic coloring and immersion treatment processes, enabling customized decorative and functional surface effects according to customer requirements.

High-Performance Sealing System

To enhance corrosion resistance and coating durability, the system integrates multiple advanced sealing technologies, including:

• Cold sealing

• Medium-temperature sealing

• Hot sealing

Combined with multi-stage deionized water rinsing, these sealing processes significantly improve the protective performance, weather resistance, and long-term stability of anodized surfaces.

Final drying ovens ensure that finished products exit the line with a clean, dry, and stable surface condition ready for assembly or packaging.

Water Treatment & Environmental Protection

The anodizing line incorporates a comprehensive water treatment and recycling solution to improve sustainability and reduce operational costs. The system includes:

• Pure water generation units

• Quartz sand filtration

• Activated carbon filtration

• Ultrafiltration systems

• Water recycling and refining equipment

Separate wastewater collection systems are configured for acidic, alkaline, phosphate-containing, and electrophoresis-related wastewater streams, helping manufacturers comply with strict automotive environmental standards and wastewater management requirements.

Industrial-Grade Equipment Configuration

To ensure reliable long-term operation, the production line utilizes high-performance industrial components, including:

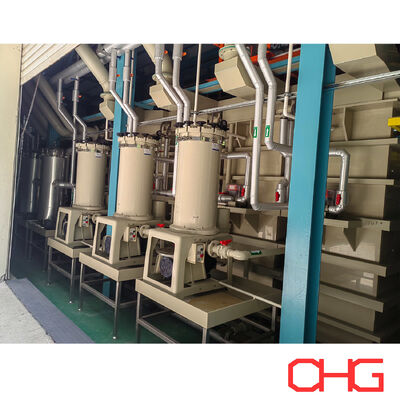

• 30–40 T/H filtration systems

• PVDF circulation pumps

• Plate heat exchangers

• Industrial chillers and cooling systems

• Centralized electrical control systems

The plant layout is further optimized with:

• Buffer stations

• Transfer carts

• Maintenance access pathways

• Efficient logistics channels

This design improves workflow efficiency, simplifies maintenance, and enhances overall plant management.

Main Advantages

Fully Automated Operation

Integrated intelligent control systems reduce manual intervention while maintaining stable processing conditions and consistent product quality.

Complete Process Integration

Cleaning, anodizing, coloring, sealing, and drying are combined into one continuous automated production system.

Precision Process Control

Advanced filtration, cooling, and circulation systems ensure stable anodizing conditions and consistent oxide film performance.

Flexible Surface Finishing

Supports multiple coloring and sealing technologies for both decorative and functional applications.

Water-Saving & Recycling Design

Integrated purification and recycling systems reduce water consumption and improve environmental efficiency.

Environmentally Responsible Manufacturing

Classified wastewater collection systems support compliance with environmental protection regulations.

Energy-Efficient Configuration

Heat exchangers and industrial cooling systems optimize energy consumption while maintaining stable operating temperatures.

Optimized Plant Layout

Buffer areas, transfer systems, and maintenance pathways improve operational efficiency and production logistics.

We provide fully customized anodizing production lines based on your workpiece dimensions, production capacity, factory layout, and surface treatment requirements. Contact us today for a tailored technical proposal and complete anodizing solution for automotive aluminum components.
