Fully Automatic Aluminum Anodizing Production Line for Automotive Components

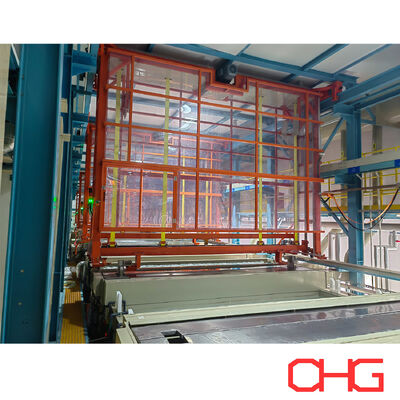

This fully automated aluminum anodizing production line is designed for high-standard surface treatment of automotive parts, delivering reliable operation, high productivity, and consistent finishing performance. The system adopts a continuous multi-tank processing layout integrated with an intelligent transfer system, enabling smooth and efficient workflow from loading to unloading.

The line integrates a complete anodizing process chain, including surface pre-treatment, anodizing, electrolytic coloring, sealing, and drying. Multiple pre-treatment stages—including degreasing, ultrasonic cleaning, alkaline etching, chemical or electro polishing, neutralization, and multi-stage rinsing—ensure the aluminum substrate is properly prepared for high-quality anodizing.

Advanced Anodizing System

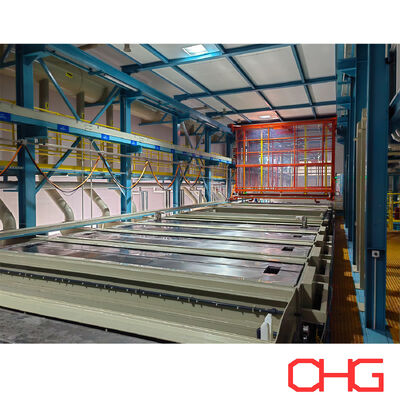

The anodizing section is equipped with large-capacity processing tanks of approximately 4300 liters each, combined with high-efficiency circulation filtration systems, plate heat exchangers, and industrial cooling units. These systems maintain stable electrolyte temperatures and precise process conditions, ensuring uniform oxide layer formation and consistent surface quality.

The production line also supports multiple finishing options, including electrolytic coloring and immersion treatment processes, allowing different appearance and performance requirements to be achieved according to customer specifications.

High-Performance Sealing Process

To improve corrosion resistance and coating durability, the system incorporates several advanced sealing technologies, including:

• Cold sealing

• Medium-temperature sealing

• Hot sealing

Combined with multi-stage deionized water rinsing, these processes significantly enhance the protective properties and long-term stability of the anodized surface. Final drying ovens ensure the products leave the line with a clean, stable, and high-quality finish.

Water Treatment and Environmental Protection

The anodizing line includes a comprehensive water treatment and recycling system designed to improve sustainability and reduce operating costs. The system integrates:

• Pure water generation equipment

• Quartz sand filtration

• Activated carbon filtration

• Ultrafiltration systems

• Water recycling and refining units

Separate wastewater collection systems are configured for acidic, alkaline, phosphate-containing, and electrophoresis-related wastewater streams, helping the production line meet strict environmental standards required by the automotive industry.

Industrial-Grade Equipment Configuration

The production line utilizes high-performance industrial components to ensure stable and reliable operation, including:

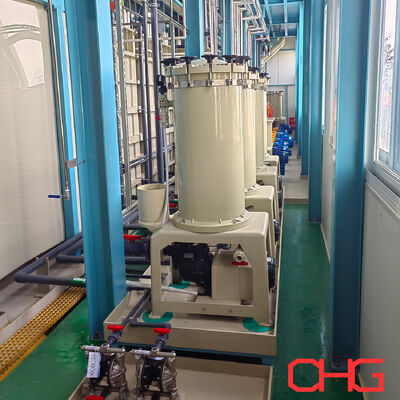

• 30–40 T/H filtration systems

• PVDF circulation pumps

• Plate heat exchangers

• Industrial cooling systems

• Centralized electrical control systems

The layout is further optimized with buffer stations, transfer carts, and maintenance access pathways to improve operational efficiency, equipment accessibility, and plant logistics management.

Main Features

• Fully Automated Operation: Integrated control systems ensure stable processing, reduced manual intervention, and consistent production quality.
• Complete Process Integration: The line combines cleaning, anodizing, coloring, sealing, and drying into one continuous automated system.
• Precision Process Control: Large-capacity anodizing tanks with advanced cooling and filtration systems maintain accurate operating conditions for consistent oxide film quality.
• Flexible Surface Finishing: Supports multiple coloring and sealing options to satisfy different decorative and functional requirements.
• Water-Saving and Recycling Design: Integrated pure water generation and recycling systems help minimize water consumption and improve environmental performance.
• Environmentally Compliant Configuration: Classified wastewater collection systems support environmentally responsible manufacturing.
• Energy-Efficient Operation: Heat exchangers and industrial cooling units optimize energy usage while maintaining stable process temperatures.
• Optimized Plant Layout: Buffer zones, transfer systems, and maintenance pathways improve production flow, logistics efficiency, and equipment management.

We can customize the anodizing production line according to your workpiece dimensions, production capacity, surface treatment requirements, and factory layout. Contact us for a tailored technical proposal and complete anodizing solution for your automotive components.
