Customized Pretreatment Line for Electrophoresis/Electrophoretic Coating KTL/EPD Automatic Method USD Payments Supported

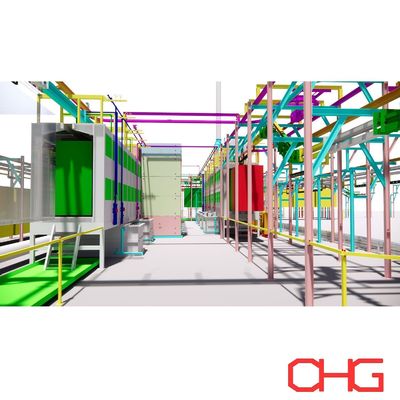

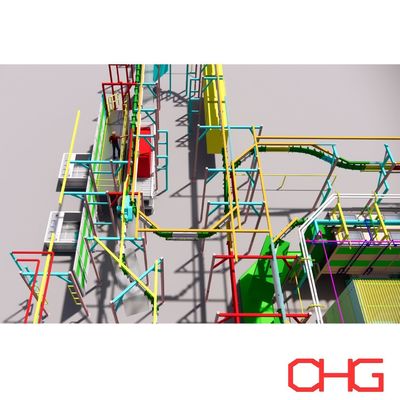

Metal Substrate Pretreatment Line for Electrophoretic Coating (E-Coat / EPD)

This advanced pretreatment system is specifically designed for metal components requiring high-performance electrophoretic coating (E-coating) finishes. Widely used in the automotive industry, the line provides precise surface preparation to ensure excellent coating adhesion, long-term corrosion resistance, and stable coating quality.

Each process stage is carefully engineered to remove oils, oxides, and surface contaminants while activating the metal substrate for optimal electrophoretic deposition performance. Through intelligent process management and automated control, the system maintains highly stable operating conditions, including chemical concentration, processing temperature, and treatment time.

Process Flow

• Pre-Degreasing: The first stage removes surface oils, dust, and loose contaminants from the workpieces, preparing them for deeper cleaning treatment.
• Degreasing: Chemical cleaning agents are used to thoroughly eliminate residual grease, machining oils, and industrial contaminants, ensuring a completely clean metal surface before further treatment.
• Water Rinse – Stage 1: The initial rinsing process removes remaining cleaning chemicals and minimizes contamination transfer between treatment stages.
• Water Rinse – Stage 2: A secondary rinse further improves surface cleanliness and stabilizes the pretreatment process prior to acid activation.
• Acid Treatment: This critical stage removes oxide layers, scales, and microscopic impurities from the metal surface. Acid activation significantly enhances substrate reactivity and improves electrophoretic coating adhesion and durability.
• Water Rinse – Stage 1: Following acid treatment, the workpieces are rinsed to neutralize and remove residual acidic solution from the surface.
• Water Rinse – Stage 2: A final rinse ensures the substrate is completely clean and ready to enter the electrophoretic coating section.

System Advantages

Enhanced Coating Adhesion

Precise surface preparation improves bonding strength between the substrate and electrophoretic coating layer, resulting in improved finish quality and durability.

Improved Corrosion Resistance

By removing oxides and contaminants while optimizing surface activation, the pretreatment process significantly increases corrosion protection performance.

Stable and Automated Operation

Advanced process control systems continuously monitor temperature, chemical concentration, treatment duration, and system status to ensure consistent processing quality.

Flexible Customization

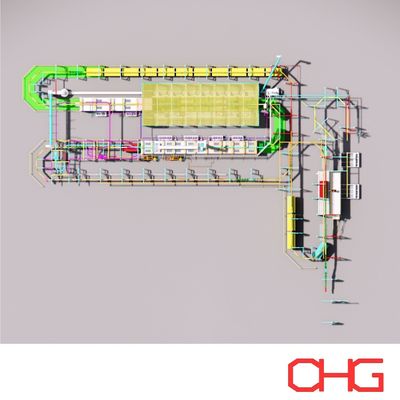

The line can be engineered according to different production capacities, workpiece dimensions, chemical systems, and factory layouts.

High Production Efficiency

Optimized tank arrangement and automated material handling systems improve workflow efficiency while reducing manual intervention.

The line can also be customized for different industries and component sizes according to specific production requirements.
